Underwater Propulsion System

52KG Thrust Underwater Propulsion System With 70141 Motor 14S 160A Motor Controller

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

52KG Thrust Underwater Propulsion System With 70141 Motor 14S 160A Motor Controller

Brand Name:	Furious Motor
Model Number:	70141
MOQ:	1
Price:	$596
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

70141

Dimension:

70mm * 141mm

Max. Thrust:

Max. Torque:

Max. RPM:

Suggested ESC:

14S 160A

Suggested Prop:

Max. Current:

Max. Voltage:

Max. Power:

4.4KW

Li - Po:

12S - 14S

Hall Sensor:

Optional

Weight:

1.9KG

Application:

Efoil, Electric Boat.

Supply Ability:

3000 pcs per month

Highlight:

52KG Underwater Propulsion System

70141 Underwater Propulsion System

160A underwater propulsion motor

Product Description

Intoroduction

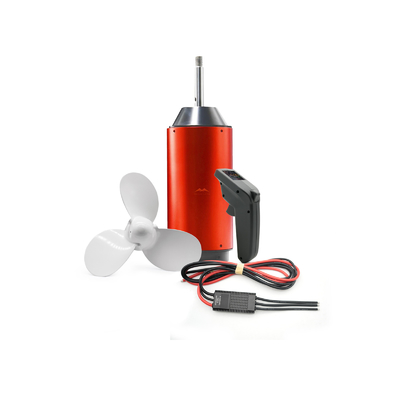

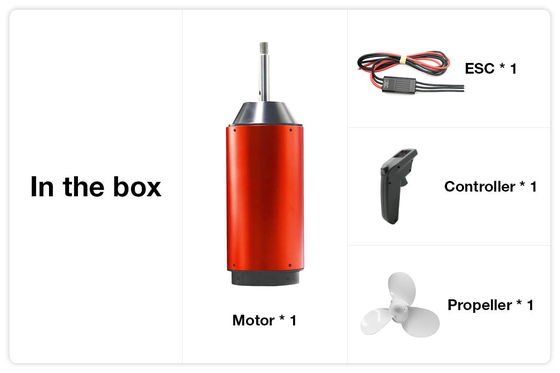

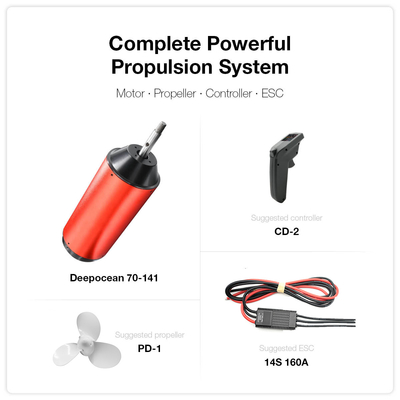

Introducing our 70141 brushless motor propulsion system, a powerhouse designed for aquatic adventures. With a robust BLDC motor delivering up to 50kg of thrust, it's a force to be reckoned with. Paired seamlessly with the DP-1 propeller, 14S 160A ESC, and DC-2 controller,it ensures optimal performance and control. Crafted for underwater thrusters, e-foils, electric surfboards and underwater scooters, it's your ticket to a thriling aquatic experience.

Tech Specs

Motor

Model	70-141
Type	Brushless DC motor
KV	120
Suggested ESC	14 S 160 A
Suggested Propeller	PD-1
Max. Thrust	52 kg
Max. Torque	9 N·m
Max. RPM	6600
Li-Po	8 S ~ 14 S
Max. Voltage	57 V
Max. Current	78 A
Max. Power	4 kW
Motor Dimension	70 mm * 141 mm
Weight	1.9 kg
Application	Electric surfboard, efoil, underwater thruster, electric boat

ESC

Model	14 S 160 A
Suggested Battery	6 S ~ 14 S (Li-Po)
BEC	5 V 1 A
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	58 V
Max. Current	200 A
Weight	550 g
Dimension	92 mm * 46 mm * 23 mm

Details

52KG Thrust Underwater Propulsion System With 70141 Motor 14S 160A Motor Controller 0

52KG Thrust Underwater Propulsion System With 70141 Motor 14S 160A Motor Controller For Efoil Electric Surfboard
