Agricultural Drone Motor

8318 BLDC Motor With 13KG Thrust For Mapping Drone Agricultural Drone Multi Rotor Drone

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

8318 BLDC Motor With 13KG Thrust For Mapping Drone Agricultural Drone Multi Rotor Drone

Brand Name:	Furious Motor
Model Number:	8318
MOQ:	4
Price:	$79
Packaging Details:	Carton with protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

Dimension:

83mm * 18mm

Max. Thrust:

Max. Torque:

Max. RPM:

Suggested ESC:

12S 80A

Suggested Prop:

31 Inch

Max. Current:

Max. Voltage:

Max. Power:

2.7KW

Li-Po:

3S - 12S

Hall Sensor:

Optional

Weight:

0.62KG

Supply Ability:

3000 pcs / month

Highlight:

BLDC Agricultural Drone Motor

8318 Agricultural Drone Motor

100kv 8318 motor

Product Description

Introduction

Introducing Furious Motor 8318 brushlessmotor, a powerhouse of efficiency and precision. With a remarkable thrust capacity of up to13kg, its lightweight yet robust design is tailor-made for agricultural drones, UAVs, and robots. This motor offers unparalleled customizability! allowing seamless integration into a range ofapplications. Pair it with our AH-31 foldable propeller and the 12S 80A motor controllerfor optimal performance.

Tech Specs

Model	8318
Type	Brushless DC motor
KV	100
Suggested ESC	12 S 80 A
Suggested Propeller	31 inch foldable 2-blade
Max. Thrust	13.5 kg
Max. Torque	5 N·m
Max. RPM	4900
Li-Po	3 S ~ 12 S
Max. Voltage	48 V
Max. Current	65 A
Max. Power	2.7 kW
Motor Dimension	83 mm * 18mm
Weight	610 g
Application	Multi rotor drone, agricultural drone

Details

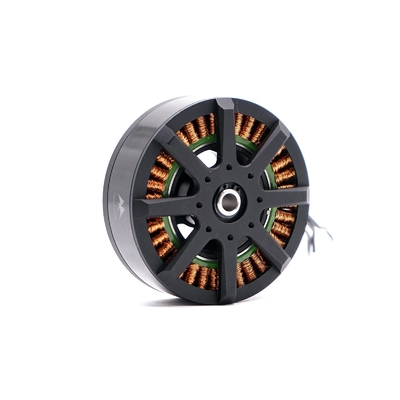

8318 BLDC Motor With 13KG Thrust For Mapping Drone Agricultural Drone Multi Rotor Drone 0

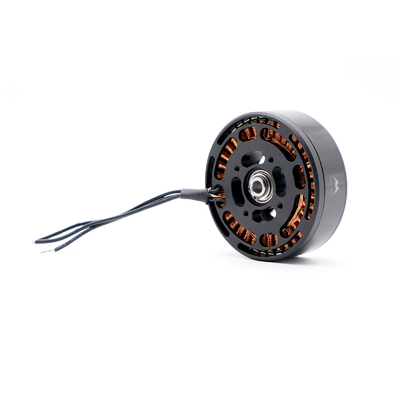

8318 BLDC Motor With 13KG Thrust For Mapping Drone Agricultural Drone Multi Rotor Drone 1

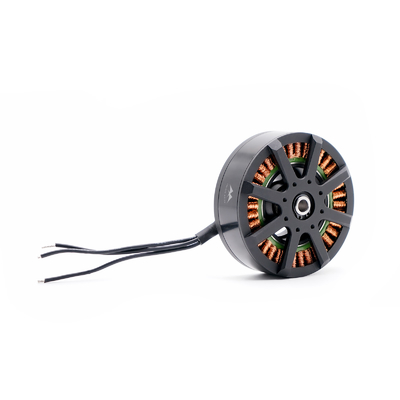

8318 BLDC Motor With 13KG Thrust For Mapping Drone Agricultural Drone Multi Rotor Drone 2

8318 BLDC Motor With 13KG Thrust For Mapping Drone Agricultural Drone Multi Rotor Drone 3

8318 BLDC Motor With 13KG Thrust For Mapping Drone Agricultural Drone Multi Rotor Drone 4

8318 BLDC Motor With 13KG Thrust For Mapping Drone Agricultural Drone Multi Rotor Drone 5

8318 BLDC Motor With 13KG Thrust For Mapping Drone Agricultural Drone Multi Rotor Drone 6

8318 BLDC Motor with 13KG Thrust for Mapping Drone Agricultural Drone Multi Rotor Drone
