160A 400V High Voltage Generative Breaking ESC For Heavy Lift Multi Rotor Drone BLDC Motor
  • name
  • name
  • name

160A 400V High Voltage Generative Breaking ESC For Heavy Lift Multi Rotor Drone BLDC Motor

Brand Name: Furious Motor
Model Number: 400 V 160 A
MOQ: 1
Price: $2898
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
96 S 160 A
Effective Throttle Range:
1050 Us ~ 1940 Us
BEC:
5 V 200 MA
Input Voltage:
DC 200 V ~ 400 V
Continuous Current:
160 A
Ingress Protecton:
IP X4
Suggested Li-po:
48 S ~ 96 S Lipo
Dimension:
232 Mm * 121 Mm * 68.8 Mm
Weight:
1480 G
Frequency:
50 Hz ~ 500 Hz
Supply Ability:
3000 pcs per month
Highlight:

160A Motor ESC

,

400V Motor ESC

,

BLDC Motor high voltage esc

Product Description

Intoroduction

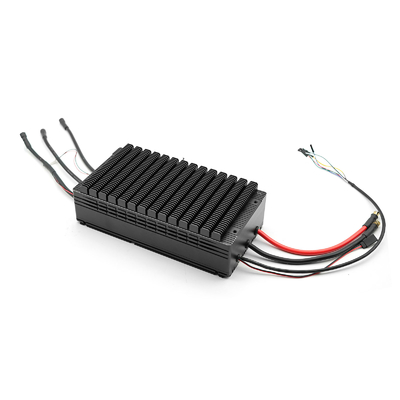

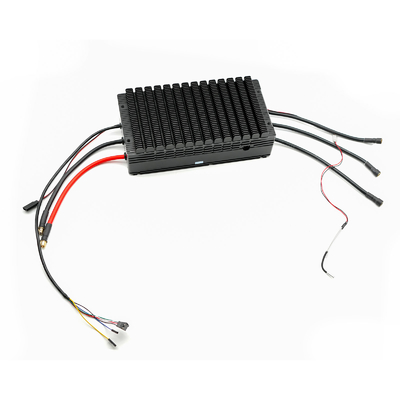

Experience rapid response with our 96S 160A ESC, accelerating from idle to full speed within 0.60 seconds. Dual throttle support (CAN digital throttle + PWM analog throttle), prioritizing CAN digital throttle control. Enjoy synchronous regenerative braking for enhanced throttle linearity and drive efficiency. Features RPM and error signal output interfaces, along with CAN communication for real-time connectivity with flight controllers. Convenient installation allows flexible mounting. Signal and power isolation ensure safety. It is designed to work seamlessly with 202150 and 240150 motors.





Tech Specs



Model 96 S 160 A
Effective Throttle Range 1050 us ~ 1940 us
BEC 5 V 200 mA
Input Voltage DC 200 V ~ 400 V
Continuous Current 160 A
Ingress Protecton IP X4
Suggested Li-po 48 S ~ 96 S
Dimension 179 mm * 99.6 mm * 66 mm
Weight 1480 g
Frequency 50 Hz ~ 500 Hz
Wire 8 AWG
Online Upgrade Yes
Throttle Loss Protection Yes
Error Signal  Yes
Temperature Protection Yes
Voltage Protection Yes
Lock Protection Yes
RPM Output Yes
CAN Communication Yes
Working Temperature -20 °C ~ 65 °C





Details

160A 400V High Voltage Generative Breaking ESC For Heavy Lift Multi Rotor Drone BLDC Motor 0



160A 400V High Voltage Generative Breaking ESC For Heavy Lift Multi Rotor Drone BLDC Motor 1

160A 400V High Voltage Generative Breaking ESC For Heavy Lift Multi Rotor Drone BLDC Motor 2

160A 400V High Voltage Generative Breaking ESC For Heavy Lift Multi Rotor Drone BLDC Motor 3

400V 160A High Voltage Generative Breaking ESC For Heavy Lift Multi Rotor Drone BLDC Motor
