products details

Home > Products >

Electric Surfboard Motor

58KG Thrust Electric Surfboard Brushless DC Motor With Propeller And Remote Controller

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

58KG Thrust Electric Surfboard Brushless DC Motor With Propeller And Remote Controller

Brand Name:	Furious Motor
Model Number:	75141
MOQ:	1
Price:	$707
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

75141

Dimension:

75mm * 141mm

Max. Thrust:

Max. Torque:

11.9N.m

Max. RPM:

Suggested ESC:

14S 160A

Suggested Prop:

Max. Current:

Max. Voltage:

Max. Power:

6.8KW

Li - Po:

12S - 14S

Hall Sensor:

Optional

Weight:

Application:

Efoil, Electric Boat.

Supply Ability:

3000 pcs per month

Highlight:

58KG Electric Surfboard Motor

Brushless Electric Surfboard Motor

75141 brushless dc motor

Product Description

Intoroduction

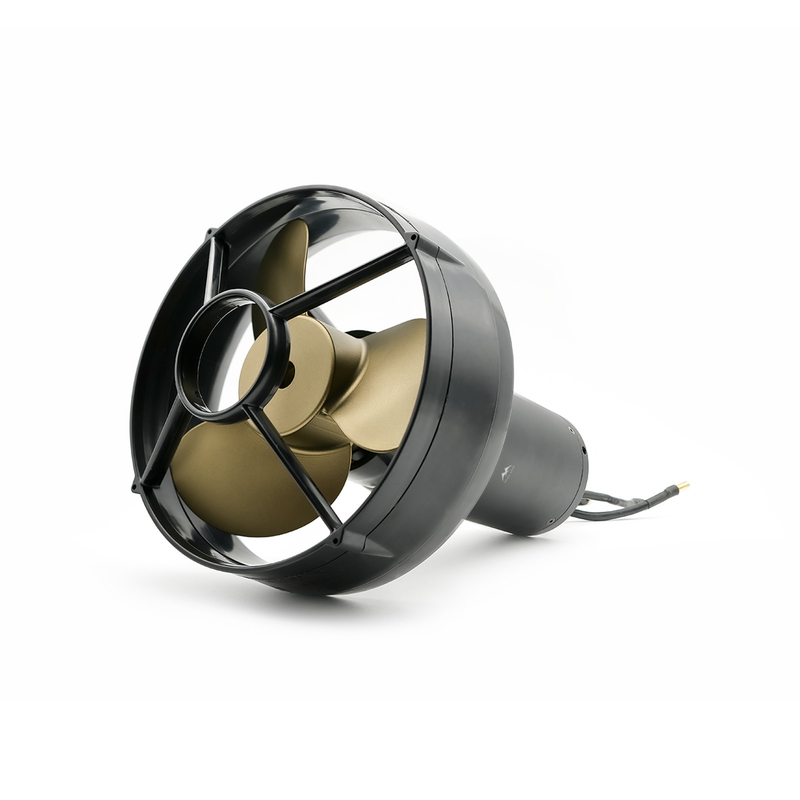

The 75141 Propulsion System is built for high-performance aquatic applications, delivering up to 56kg of thrust with its powerful BLDC motor. Engineered for precision and reliability, it pairs seamlessly with the DP-3 propeller, 14S 160A ESC, and DC-2 controller to ensure smooth and efficient operation. Designed for underwater thrusters, e-foils, electric surfboards, and underwater scooters, this system provides the power and control needed for an exhilarating ride on or beneath the water.

Tech Specs

Motor

Model	75141
Type	Brushless DC motor
KV	100
Suggested ESC	14 S 160 A
Suggested Propeller	PD-2
Max. Thrust	58 kg
Max. Torque	11.9 N·m
Max. RPM	5500
Li-Po	8 S ~ 14 S
Max. Voltage	57 V
Max. Current	120 A
Max. Power	6.8 kW
Motor Dimension	75 mm * 141 mm
Weight	2 kg
Application	Electric surfboard, efoil, underwater thruster, electric boat

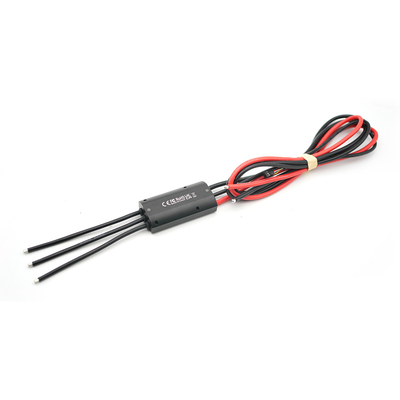

ESC

Model	14 S 160 A
Suggested Battery	6 S ~ 14 S (Li-Po)
BEC	5 V 1 A
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	58 V
Max. Current	200 A
Weight	550 g
Dimension	92 mm * 46 mm * 23 mm

Details

58KG Thrust Electric Surfboard Brushless DC Motor With Propeller And Remote Controller 0

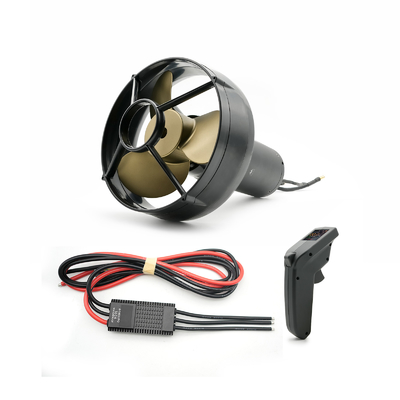

58KG Thrust Electric Surfboard Brushless DC Motor With Propeller And Remote Controller Included
