5065 Brushless DC Motor High Customizable Motor For Power Tool

Brand Name:	Furious Motor
Model Number:	5065
MOQ:	10
Price:	$28
Packaging Details:	Carton with protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

300 / Customized

Max. Torque:

1.4 N.m

Input Voltage:

11 V - 36 V

Suggested Prop:

11 Inch - 14 Inch

Idle Current:

1.6 A - 2.9 A

Max. Current:

Max. Thrust:

6500 G

14500

Li-Po:

4S - 12S

Dimension:

50 Mm * 65 Mm

Weight:

370 G

Application:

Drone, Power Tool

Supply Ability:

3000 pcs / month

Highlight:

5065 dc brushless motor

Power Tool dc brushless motor

11V brushless dc motors

Product Description

Introduction

The 5065 brushless DC motor is a highly customizable solution, offering flexibility in color, shaft, KV, and torque to meet diverse application needs. Designed for power tools and home appliances, this motor delivers exceptional performance with 0.2mm laminations, manually wound wire with a protective coating, and N42SH permanent magnets. Its compact and lightweight design ensures efficiency and reliability, making it an ideal choice for demanding applications.

Tech Specs

Model	5065
Type	Brushless DC motor
KV	300
Suggested ESC	4 S ~ 12 S
Max. Torque	1.4 N·m
Li-Po	4 S ~ 12 S
Max. Voltage	48 V
Max. Current	40 A
Max. Power	1.8 kW
Motor Dimension	50 mm * 65 mm
Max. Thrust	6500 g
Weight	370 g
Application	RC drone, power tool

Details

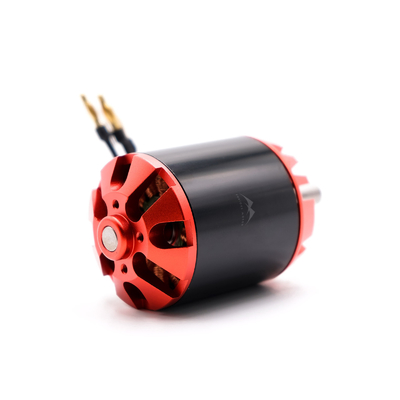

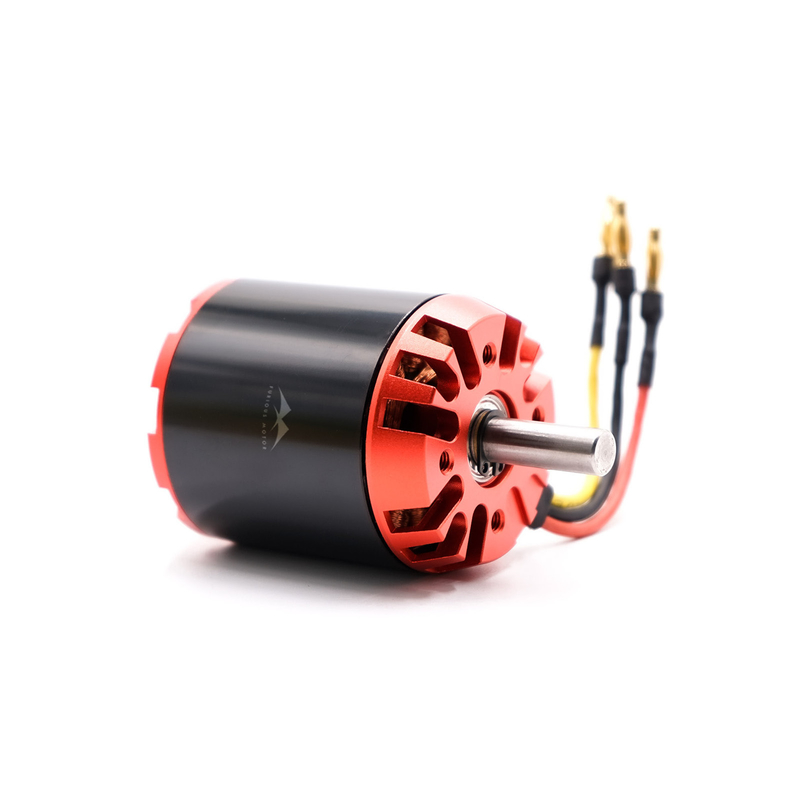

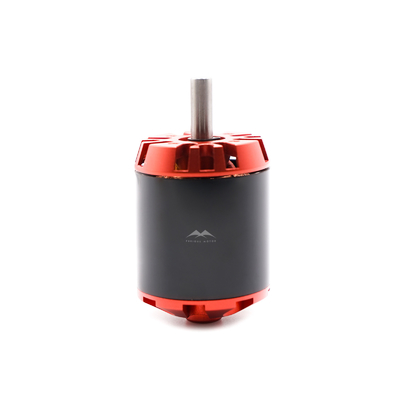

5065 Brushless DC Motor High Customizable Motor For Power Tool 0

5065 Brushless DC Motor High Customizable Motor For Power Tool 1

5065 Brushless DC Motor High Customizable Motor For Power Tool 2

5065 Brushless DC Motor High Customizable Motor For Power Tool 3

5065 Brushless DC Motor High Customizable Motor For Power Tool 4

5065 Brushless DC Motor High Customizable Motor For Power Tool 5

5065 Brushless DC Motor High Customizable Motor for Power Tool
