VESC FOC Motor Controller 75V 200A ESC with CAN UART Ports for Drone Brushless Motor

Brand Name:	Furious Motor
Model Number:	VESC 75 V 200 A
MOQ:	1
Price:	$160
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

75 V 200 A

Firmware:

5.2

Voltage:

12 V ~ 84 V

Continuous Current:

50 V / 200 A, 75 V / 150 A

Burst Current:

300 A

BEC:

5 V, 1 A

Mode:

DC, BLDC, FOC

ERPM:

150000

Port:

USB, PWM, CAN, UART, SPI, IIC

Sensor:

ABI, HALL, AS5047, AS5048A

Input Source:

PPM, ADC, NRF, UART

Size:

130 Mm * 67.7 Mm * 40.1 Mm

Supply Ability:

3000 pcs per month

Highlight:

VESC FOC motor controller 75V

brushless motor ESC with CAN UART

drone motor controller 200A

Product Description

VESC FOC Motor Controller 75V 200A ESC with CAN UART Ports

Key Features

High-performance motor controller for electric mobility and robotics
Wide voltage range: 12V-84V (4-20S) operation
Continuous current: 200A at 50V, 150A at 75V
Supports BLDC, FOC, and DC drive modes
150,000 ERPM capability for high-speed applications

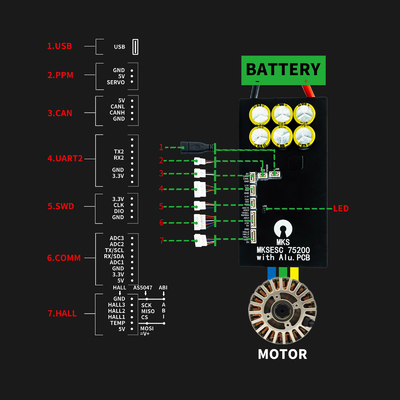

Multiple interface options: USB, CAN, UART, SPI, I²C

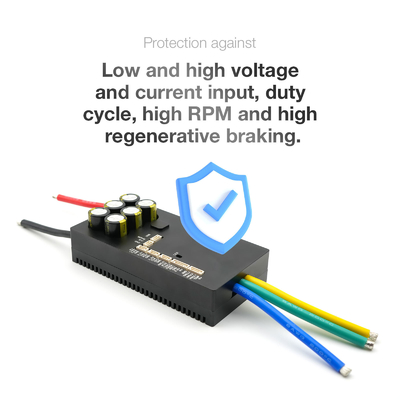

Robust protection features and aluminum-core PCB for heat dissipation

Technical Specifications

Attribute	Value
Model	75 V 200 A
Firmware	5.2
Voltage	12 V ~ 84 V
Continuous Current	50 V / 200 A, 75 V / 150 A
Burst Current	300 A
BEC	5 V, 1 A
Mode	DC, BLDC, FOC
ERPM	150000
Port	USB, PWM, CAN, UART, SPI, IIC
Sensor	ABI, HALL, AS5047, AS5048A
Input Source	PPM, ADC, NRF, UART
Size	130 mm * 67.7 mm * 40.1 mm

Product Description

The VESC 75V 200A motor controller delivers exceptional performance for next-generation electric mobility and high-power robotics applications. Engineered for versatility, it supports a wide range of voltage inputs (12V-84V) and multiple drive modes including BLDC, FOC, and DC.

With its 150,000 ERPM capability and full VESC_TOOL compatibility, this controller offers deep configurability and real-time tuning for both sensored and sensorless setups. The comprehensive interface options (USB, CAN, UART, SPI, I²C) enable seamless integration into complex systems.

The robust aluminum-core PCB design ensures excellent heat dissipation, while built-in protection features maintain system safety. Ideal for e-bikes, electric skateboards, heavy-duty robotics, and drone applications requiring high current handling and precise motor control.

Product Images
