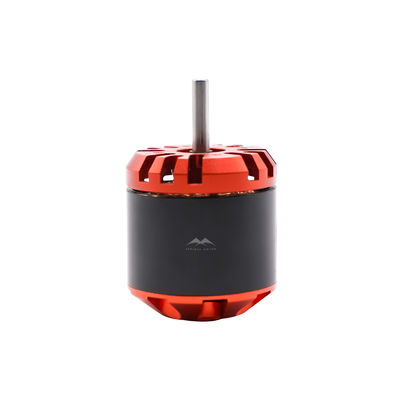

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications

Brand Name:	Furious Motor
Model Number:	4250
MOQ:	5
Price:	$20.80-24

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Continuous Current:

31A

Efficiency:

89%

Speed:

12774 RPM

Commutation:

Brushless

Construction:

Permanent Magnet

Protect Feature:

Explosion-proof

Torque:

0.9N.m

Dimension:

42mm X 50mm

Max Thrust:

3000g

Max Torque:

0.9Nm

Max RPM:

12774

Li-Po:

4S-6S

Peak Current:

52A

Max Power:

1150W

Shaft Diameter:

5mm

Weight:

230g

Highlight:

24V/48V Brushless DC Motor

,

5mm Shaft Diameter Brushless DC Motor

,

4S/6S Li-Po Brushless DC Motor

Product Description

24V/48V Brushless DC Outrunner Robot AGV Motor with High Torque Low Noise Explosion-Proof 5mm 4S/6S Permanent Magnet

Product Overview

High-performance brushless DC motor designed for AGV and robotic applications, featuring explosion-proof construction, high torque output, and low noise operation.

Product Images

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 0

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 1

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 2

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 3

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 4

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 5

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 6

Technical Specifications

Warranty	3 months
Place of Origin	China, Guangdong
Brand Name	Furious Motor
Model Number	4250
Usage	BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Foam plane
Type	Brushless Motor
Construction	Permanent Magnet
Commutation	Brushless
Protect Feature	Explosion-proof
Efficiency	89%
Dimension	42mm x 50mm
Max. Thrust	3000g
Max. Torque	0.9Nm
Max. RPM	12774
Li-Po	4S-6S
Peak Current	52A
Continuous Current	31A
Max. Power	1150W
Shaft Diameter	5mm
Weight	230g

Manufacturer Information

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 7

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 8

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 9

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 10

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 11

24V/48V Brushless DC Motor with 5mm Shaft Diameter and 4S/6S Li-Po for High Torque Applications 12
