12070 41KG Brushless DC Motor High Speed Powerful For VTOL UAV Heavy Lift Drone

Brand Name:	Furious Motor
Model Number:	12070
MOQ:	1
Price:	$300
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

12070

Dimension:

120mm * 70mm

Max. Thrust:

Max. Torque:

18N.m

Max. RPM:

Suggested ESC:

24S 150A

Suggested Prop:

36 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

2.4KG

Application:

Drone

Supply Ability:

3000 pcs per month

Highlight:

12070 Heavy Lift Drone Motor

41KG Heavy Lift Drone Motor

UAV high speed bldc

Product Description

Intoroduction

Furious Motor 12070 BLDC motor represents a significant advancement in propulsion technology, tailored for a diverse range of applications including big drones, UAVs, multi-rotor drones, robots, and electric tools. This upgraded motor is finely tuned for optimal performance, seamlessly integrating witha 36-inch propeller and a 24S 150A motor controller for precise control and efficient power distribution. With maximum thrust of 40kg, it delivers robust power for various heavy lift drones.

Tech Specs

Model	12070
Type	Brushless DC motor
KV	80
Suggested ESC	24 S 150 A
Suggested Propeller	36 inch
Max. Thrust	41 kg
Max. Torque	16 N·m
Max. RPM	5400
Li-Po	14 S ~ 24 S
Max. Voltage	79 V
Max. Current	112 A
Max. Power	8.5 kW
Motor Dimension	120 mm * 70mm
Weight	2.4 kg
Application	Multi rotor drone, heavy lift drone, paramotor

Details

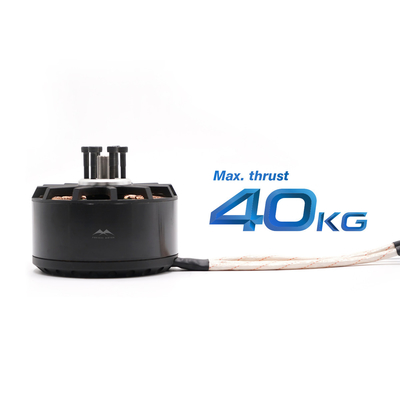

12070 41KG Brushless DC Motor High Speed Powerful For VTOL UAV Heavy Lift Drone 0

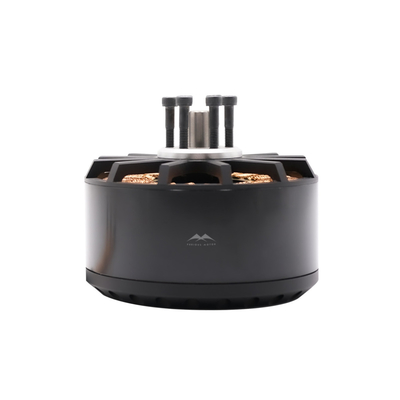

12070 41KG Brushless DC Motor High Speed Powerful For VTOL UAV Heavy Lift Drone 1

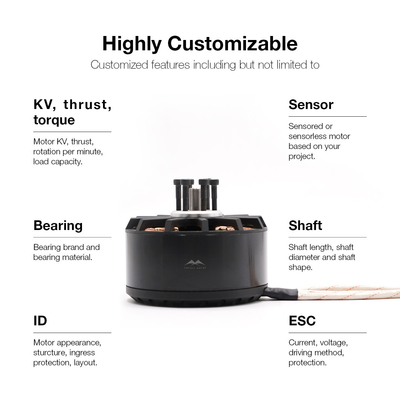

12070 41KG Brushless DC Motor High Speed Powerful Motor for VTOL UAV Heavy Lift Drone
