240150 220KG Thrust Electric Brushless Motor For Big Drone Multi Rotor Heavy Lift Drone

Brand Name:	Furious Motor
Model Number:	240150
MOQ:	1
Price:	$ 3599
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

240150

Dimension:

240 Mm * 150 Mm

Max. Thrust:

220 KG

Max. Torque:

234 N.m

Max. RPM:

Suggested ESC:

400 V 160 A

Suggested Prop:

78 Inch Propeller

Max. Current:

153 A

Max. Voltage:

400 V

Max. Power:

59 KW

Li - Po:

48 S - 96 S

Hall Sensor:

Optional

Weight:

16 KG

Application:

Heavy Lift Drone

Supply Ability:

3000 pcs per month

Highlight:

220KG Heavy Lift Drone Motor

240150 Heavy Lift Drone Motor

Big Drone electric brushless motor

Product Description

Introduction

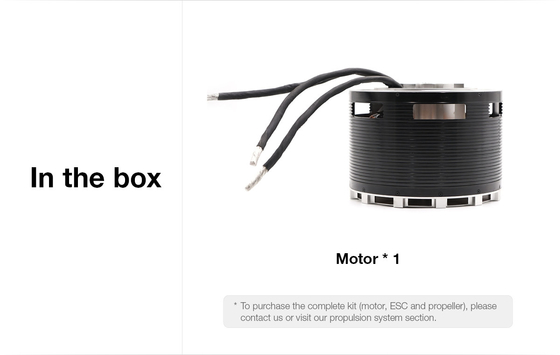

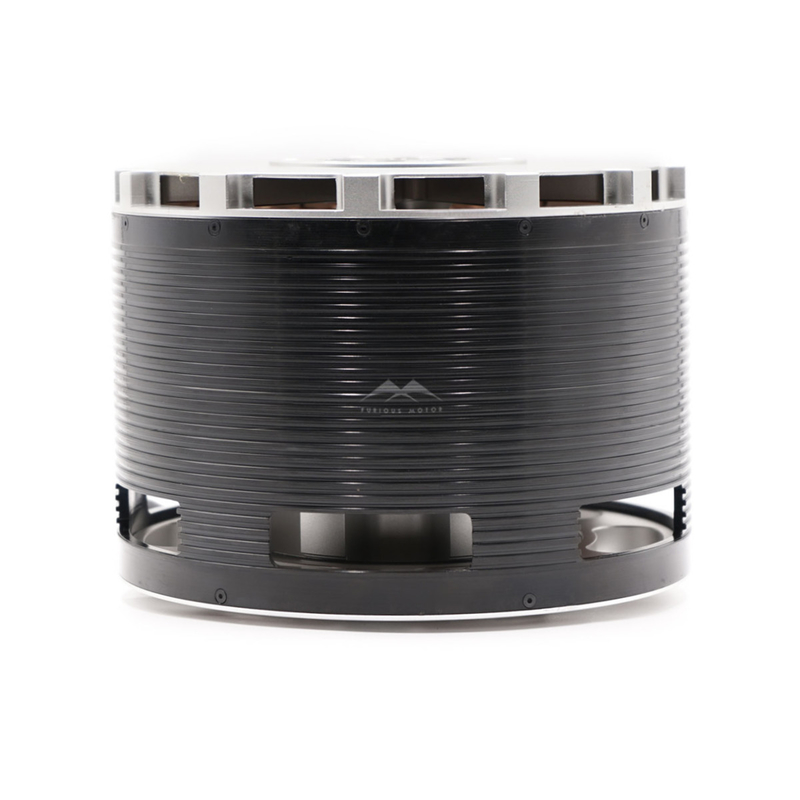

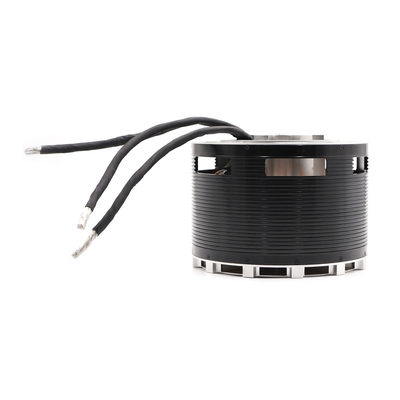

The Furious Motor 240150 is a high-performance brushless DC motor, purpose-built for advanced propulsion systems. Designed to work seamlessly with a 78-inch propeller and a 400V 160A ESC (Electronic Speed Controller), it delivers outstanding power and efficiency. Capable of producing up to 220kg of maximum thrust, it is an ideal choice for demanding heavy-lift applications.

Tech Specs

Model	240150
Type	Brushless DC motor
KV	10
Suggested ESC	400 V 160 A
Suggested Propeller	78 inch propeller
Max. Thrust	220 kg
Max. Torque	234 N·m
Max. RPM	2335
Li-Po	48 S ~ 96 S
Max. Voltage	400 V
Max. Current	153 A
Max. Power	59 kW
Motor Dimension	240 mm * 150mm
Weight	16 kg
Application	Multi rotor drone, heavy lift drone
