238100 Drone Motor 116KG Thrust Brushless DC Motor For Unmanned Aircraft UAV VTOL Drone

Brand Name:	Furious Motor
Model Number:	238100
MOQ:	1
Price:	$1788
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

238100

Dimension:

238mm * 100mm

Max. Thrust:

116KG

Max. Torque:

79N.m

Max. RPM:

Suggested ESC:

24S 300A

Suggested Prop:

63 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

7.8KG

Application:

Drone

Supply Ability:

3000 pcs per month

Highlight:

238100 drone motor

116KG drone motor

35kv heavy lift drone motors

Product Description

Introduction

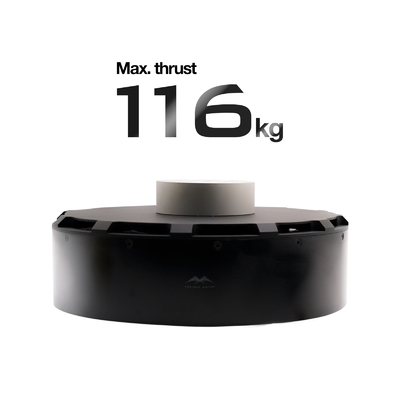

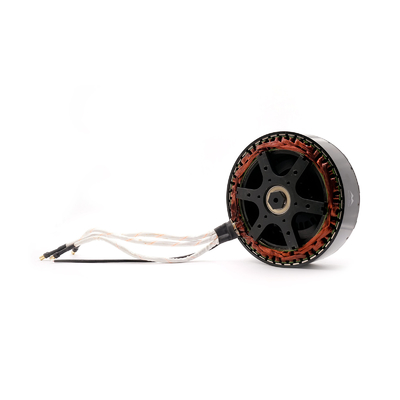

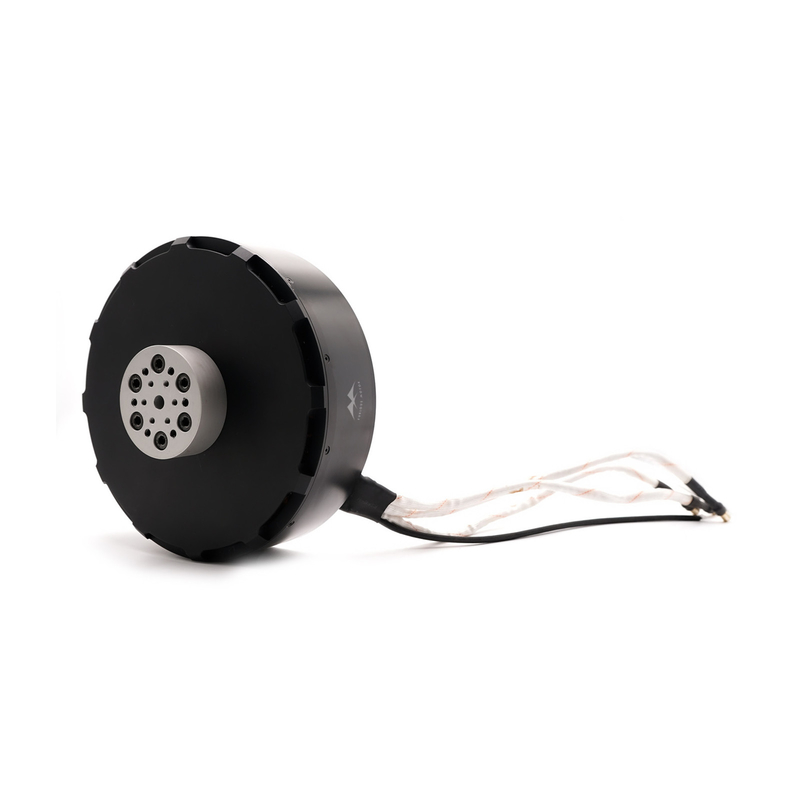

The Furious Motor 238100 brushless motor is aversatile and efficient brushless DC motor designed for drone propulsion systems. lt is specifically engineered to work seamlessly with a propellersize of 63 and an 24S 300A ESC, ensuring optimal performance. With a maximum thrustof up to 116KG, this motor is well-suited fora range of applications, including unmannedaircraft, heavy lift drones, multi rotor drones.

Tech Specs

Model	238100
Type	Brushless DC motor
KV	35
Suggested ESC	24 S 300 A
Suggested Propeller	66 inch propeller
Max. Thrust	116 kg
Max. Torque	79 N·m
Max. RPM	2881
Li-Po	14 S ~ 24 S
Max. Voltage	95 V
Max. Current	288 A
Max. Power	23.8 kW
Motor Dimension	238 mm * 100mm
Weight	7.8 kg
Application	Multi rotor drone, heavy lift drone
