Good price online

products details

Home > Products >
Motor ESC
>
150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone
All Category

Heavy Lift Drone Motor

Underwater Thruster Motor

Electric Surfboard Motor

Electric Skateboard Motor

Agricultural Drone Motor

Racing Drone Motor

FPV Motor

Power Tool Motor

Paramotor

Drone Propulsion System

Underwater Propulsion System

Motor ESC

Drone Propeller

Motor Accessories

Multi Rotor Drone Motor

Unmanned Aircraft Motor

Efoil Motor

Carbon Fiber Propeller

VTOL Drone Motor

Drone ESC

Brushless DC Motor
Contact Us
Mr. Han
han@furiousmotor.com
+86 139 2465 2635
Contact Now
150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone
  • name
  • name
  • name
  • name

150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone

Brand Name: Furious Motor
Model Number: 24S 150A
MOQ: 1
Price: $450
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
24S 150A
Dimension:
140.5mm * 66.6mm * 18mm
Li - Po:
12S - 24S
Max. Current:
150A
Frequency:
50Hz - 400Hz
Effective Throttle:
900us - 2000us
Ingress Protection:
Optional
Type:
PWM
Electric Advance:
15°
Weight:
450g
Working Temperature:
-20°C ~ 65°C
Supply Ability:
3000 pcs per month
Highlight:

150A Motor ESC

,

24S Motor ESC

,

Multi Rotor Drone brushless motor esc

Product Description

Intoroduction



24S 150A is an ESC of precision and reliability in brushless motor control. Utilizing advanced algorithms and professional-grade brushless motor drive chips, it ensures precise commutation control for reliable high-voltage driving. Enjoy the convenience of throttle calibration support, while built-in safeguards like over-temperature, lock, and signal loss protection guarantee optimal performance. Compatible with a wide range of BLDC motors used in heavy lift drones, this ESC works seamlessly with our 12070 and 12090 motors, offering unparalleled control and efficiency for your aerial endeavors.



Tech Specs



Model 24 S 150 A
Effective Throttle Range 900 us ~ 2000 us
Advanced Angle 15°
Input Voltage DC 50 V ~ 100 V
Peak Current 150 A
Ingress Protecton Rainproof
Suggested Li-po 12 S ~ 24 S
Dimension 140.5 mm * 66.6 mm * 18 mm
Weight 450 g

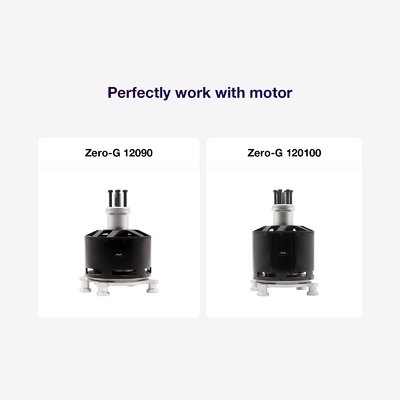

Motor 12070, 12090, 120100





Details

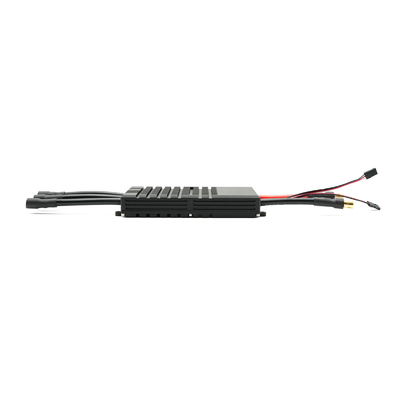

150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 0

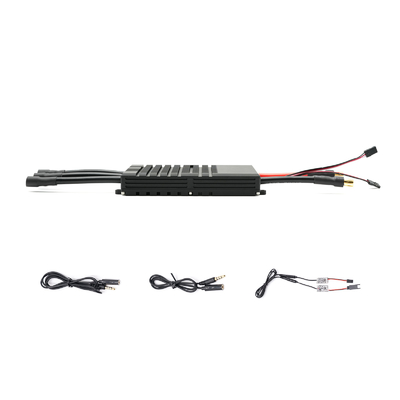

150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 1150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 2

150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 3



150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 4

150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 5

150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 6

24S 150A High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone

Tags:

Motor ESC

esc motor controller

motor controller esc

Products Details

Home > Products >
Motor ESC
>
150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone
All Category

Heavy Lift Drone Motor

Underwater Thruster Motor

Electric Surfboard Motor

Electric Skateboard Motor

Agricultural Drone Motor

Racing Drone Motor

FPV Motor

Power Tool Motor

Paramotor

Drone Propulsion System

Underwater Propulsion System

Motor ESC

Drone Propeller

Motor Accessories

Multi Rotor Drone Motor

Unmanned Aircraft Motor

Efoil Motor

Carbon Fiber Propeller

VTOL Drone Motor

Drone ESC

Brushless DC Motor
150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone
  • name
  • name
  • name
  • name

150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone

Brand Name: Furious Motor
Model Number: 24S 150A
MOQ: 1
Price: $450
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Brand Name:
Furious Motor
Certification:
CE
Model Number:
24S 150A
Model:
24S 150A
Dimension:
140.5mm * 66.6mm * 18mm
Li - Po:
12S - 24S
Max. Current:
150A
Frequency:
50Hz - 400Hz
Effective Throttle:
900us - 2000us
Ingress Protection:
Optional
Type:
PWM
Electric Advance:
15°
Weight:
450g
Working Temperature:
-20°C ~ 65°C
Minimum Order Quantity:
1
Price:
$450
Packaging Details:
Carton witn protection (EPE)
Delivery Time:
5-8 working days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
3000 pcs per month
Highlight:

150A Motor ESC

,

24S Motor ESC

,

Multi Rotor Drone brushless motor esc

Product Description

Intoroduction



24S 150A is an ESC of precision and reliability in brushless motor control. Utilizing advanced algorithms and professional-grade brushless motor drive chips, it ensures precise commutation control for reliable high-voltage driving. Enjoy the convenience of throttle calibration support, while built-in safeguards like over-temperature, lock, and signal loss protection guarantee optimal performance. Compatible with a wide range of BLDC motors used in heavy lift drones, this ESC works seamlessly with our 12070 and 12090 motors, offering unparalleled control and efficiency for your aerial endeavors.



Tech Specs



Model 24 S 150 A
Effective Throttle Range 900 us ~ 2000 us
Advanced Angle 15°
Input Voltage DC 50 V ~ 100 V
Peak Current 150 A
Ingress Protecton Rainproof
Suggested Li-po 12 S ~ 24 S
Dimension 140.5 mm * 66.6 mm * 18 mm
Weight 450 g
Motor 12070, 12090, 120100





Details



150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 0

150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 1150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 2

150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 3



150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 4

150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 5

150A 24S High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone 6

24S 150A High Compatibility Motor Controller PWM ESC For Brushless Motor Multi Rotor Drone

Tags:

Motor ESC

esc motor controller

motor controller esc
