products details

Home > Products >

Heavy Lift Drone Motor

202150 155KG Thrust Big Brushless Motor For Multi Rotor Drone Heavy Lift Drone

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

202150 155KG Thrust Big Brushless Motor For Multi Rotor Drone Heavy Lift Drone

Brand Name:	Furious Motor
Model Number:	202150
MOQ:	1
Price:	$ 2088
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

202150

Dimension:

202 Mm * 15 0mm

Max. Thrust:

155 KG

Max. Torque:

120 N.m

Max. RPM:

Suggested ESC:

400 V 160 A

Suggested Prop:

63 Inch Propeller

Max. Current:

110 A

Max. Voltage:

400 V

Max. Power:

40 KW

Li - Po:

48 S - 96 S

Hall Sensor:

Optional

Weight:

11.8 KG

Application:

Heavy Lift Drone

Supply Ability:

3000 pcs per month

Highlight:

202150 drone motors heavy lift

Big drone motors heavy lift

Heavy Lift Drone big brushless motor

Product Description

Intoroduction

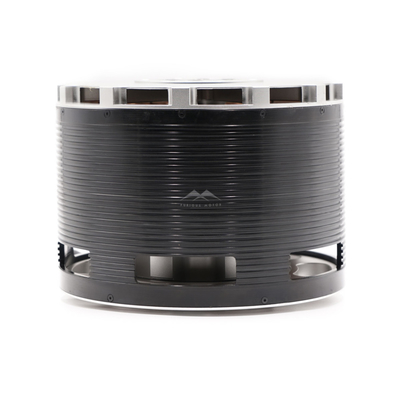

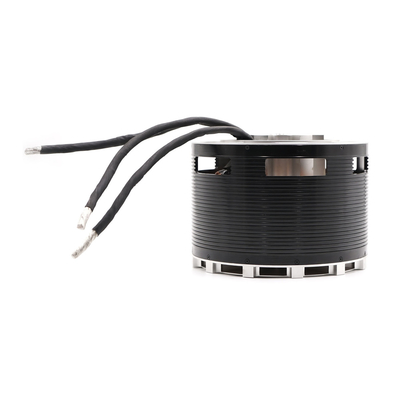

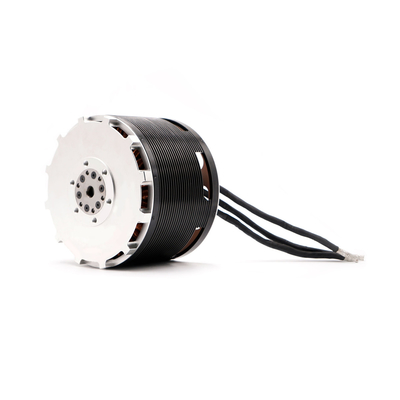

The Furious Motor 202150 brushless motor is a high-performance brushless DC motor designed for a wide range of aerial vehicles. With compatibility for a propeller size of 63 and a 400V 160A ESC, it delivers powerful performance. With a maximum thrust of 155KG, it is ideal for manned aircraft, heavy lift drones, mega drones, and DIY drones, offering reliable and efficient propulsion.

Tech Specs

Model	202150
Type	Brushless DC motor
KV	10
Suggested ESC	400 V 160 A
Suggested Propeller	63 inch propeller
Max. Thrust	155 kg
Max. Torque	120 N·m
Max. RPM	3500
Li-Po	48 S ~ 96 S
Max. Voltage	400 V
Max. Current	110 A
Max. Power	40 kW
Motor Dimension	202 mm * 150mm
Weight	11.8 kg
Application	Multi rotor drone, heavy lift drone

Details

202150 155KG Thrust Big Brushless Motor For Multi Rotor Drone Heavy Lift Drone 0

202150 155KG Thrust Big Brushless Motor For Multi Rotor Drone Heavy Lift Drone 1

202150 155KG Thrust Big Brushless Motor For Multi Rotor Drone Heavy Lift Drone 2

202150 155KG Thrust Big Brushless Motor For Multi Rotor Drone Heavy Lift Drone 3

202150 155KG Thrust Big Brushless Motor For Multi Rotor Drone Heavy Lift Drone 4

202150 155KG Thrust Big Brushless Motor For Multi Rotor Drone Heavy Lift Drone 5

202150 155KG Thrust Big Brushless Motor For Multi Rotor Drone Heavy Lift Drone 6

202150 155KG Thrust Big Brushless Motor for Multi Rotor Drone Heavy Lift Drone and Unmanned Aircraft
