3650 High Speed Brushless DC Motors With Customized KV For FPV Racing Drone

Brand Name:	Furious Motor
Model Number:	3650
MOQ:	10
Price:	$22
Packaging Details:	Carton with protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

500 / Customized

Max. Torque:

0.7 N.m

Input Voltage:

11 V - 40 V

Suggested Prop:

11 Inch - 14 Inch

Idle Current:

1.6 A - 2.9 A

Max. Current:

Max. Thrust:

3600 G

18000

Li-Po:

4S - 10S

Dimension:

36 Mm * 50 Mm

Weight:

186 G

Application:

Drone, Power Tool

Supply Ability:

3000 pcs / month

Highlight:

High Speed brushless dc motors

3650 brushless dc motors

FPV electric motor dc brushless

Product Description

Introduction

The 3650 brushless DC motor is a versatile solution with customizable options for color, shaft, KV, and torque to meet specific requirements. Designed for racing drone, FPV and camara drone, it incorporates 0.2mm laminations, precision-wound wire with a protective coating, and high-quality N42SH permanent magnets. With its compact and lightweight build, this motor delivers reliable performance, efficiency, and durability for demanding applications.

Tech Specs

Model	3650
Type	Brushless DC motor
KV	500
Suggested ESC	4 S ~ 10 S
Max. Torque	0.7 N·m
Li-Po	4 S ~ 10 S
Max. Voltage	40 V
Max. Current	26 A
Max. Power	830 W
Motor Dimension	36 mm * 50 mm
Max. Thrust	3600 g
Weight	186 g
Application	FPV, racing drone

Details

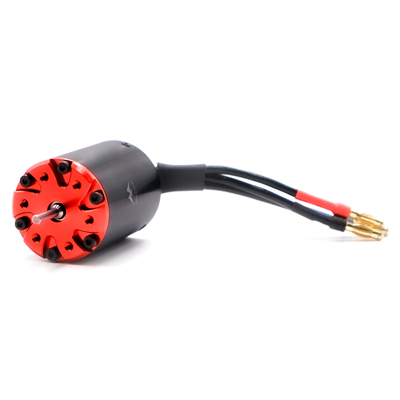

3650 High Speed Brushless DC Motors With Customized KV For FPV Racing Drone 0

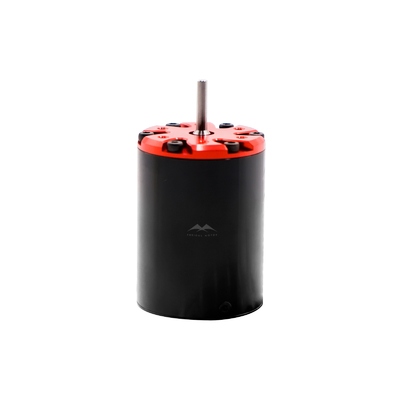

3650 High Speed Brushless DC Motors With Customized KV For FPV Racing Drone 1

3650 High Speed Brushless DC Motors With Customized KV For FPV Racing Drone 2

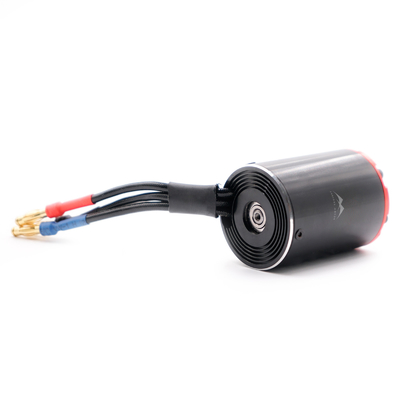

3650 High Speed Brushless DC Motors With Customized KV For FPV Racing Drone 3
