3542 800KV Brushless DC Motor For FPV Quadcopter Multi Rotor Drone

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

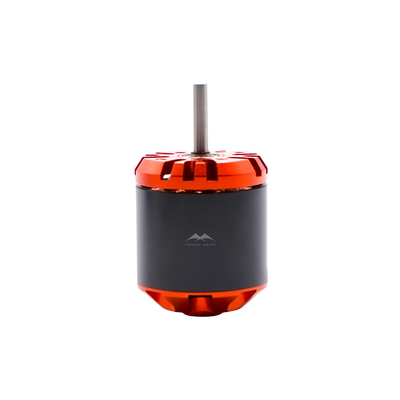

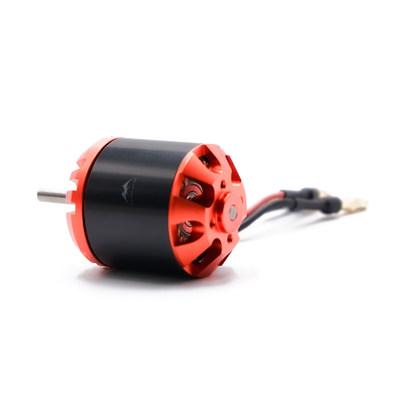

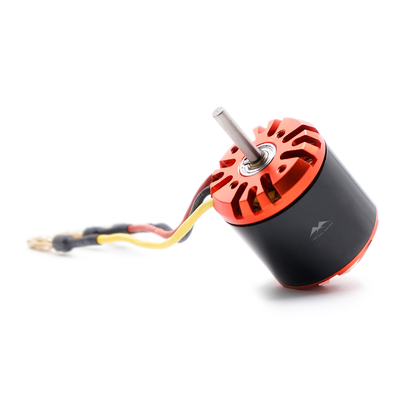

3542 800KV Brushless DC Motor For FPV Quadcopter Multi Rotor Drone

Brand Name:	Furious Motor
Model Number:	3542
MOQ:	10
Price:	$16.7
Packaging Details:	Carton with protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

800 / Customized

Max. Torque:

0.4 N.m

Input Voltage:

11 V - 30 V

Suggested Prop:

11 Inch - 14 Inch

Idle Current:

1.6 A - 2.9 A

Max. Current:

Max. Thrust:

2800 G

22000

Li-Po:

4S - 810S

Dimension:

35 Mm * 42 Mm

Weight:

130 G

Application:

Drone, FPV, Racing Drone

Supply Ability:

3000 pcs / month

Highlight:

3542 motor brushless dc

800KV motor brushless dc

Multi Rotor Drone brushless dc motors

Product Description

Introduction

The 3542 brushless DC motor is a highly adaptable solution, offering customizable options such as color, shaft size, KV rating, and torque to suit various applications. Engineered for FPV, multi rotor drone, it incorporates 0.2mm laminations, precision-wound wire with a protective coating, and durable N42SH permanent magnets. With its compact and lightweight design, this motor ensures efficient and reliable performance, making it ideal for demanding applications.

Tech Specs

Model	3542
Type	Brushless DC motor
KV	800
Suggested ESC	4 S ~ 8 S
Max. Torque	0.4 N·m
Li-Po	4 S ~ 8 S
Max. Voltage	30 V
Max. Current	23 A
Max. Power	580 W
Motor Dimension	35 mm * 42 mm
Max. Thrust	2800 g
Weight	130 g
Application	FPV, racing drone

Details

3542 800KV Brushless DC Motor For FPV Quadcopter Multi Rotor Drone 0

3542 800KV Brushless DC Motor For FPV Quadcopter Multi Rotor Drone 1

3542 800KV Brushless DC Motor For FPV Quadcopter Multi Rotor Drone 2

3542 800KV Brushless DC Motor For FPV Quadcopter Multi Rotor Drone 3

3542 800KV Brushless DC Motor For FPV Quadcopter Multi Rotor Drone 4

3542 High KV Brushless DC Motor For FPV Quadcopter Multi Rotor Drone
