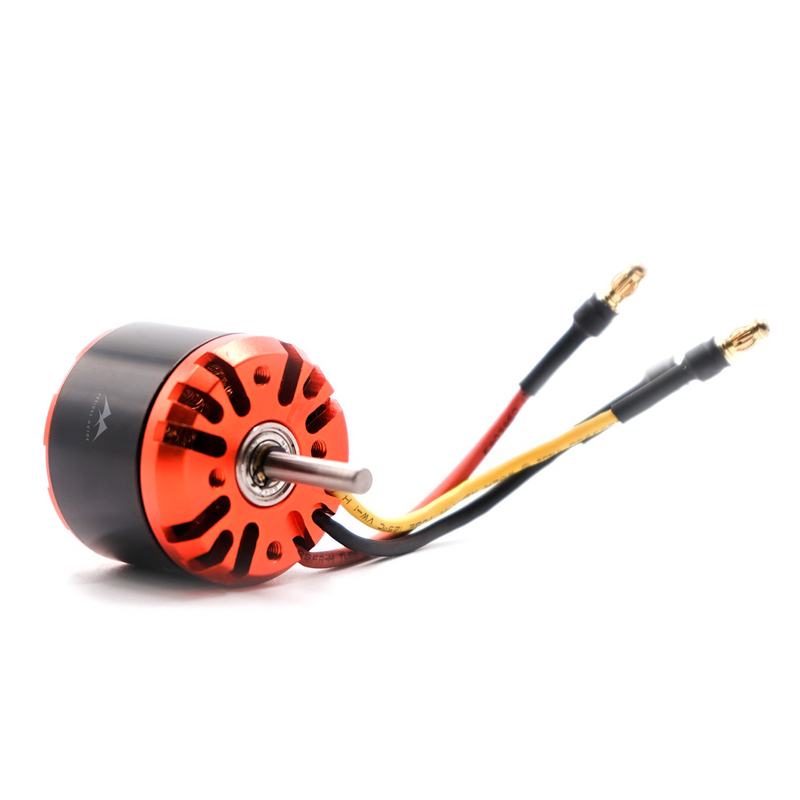

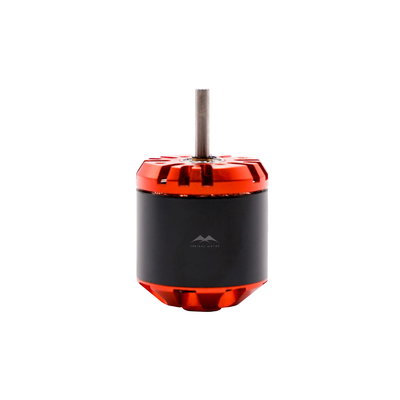

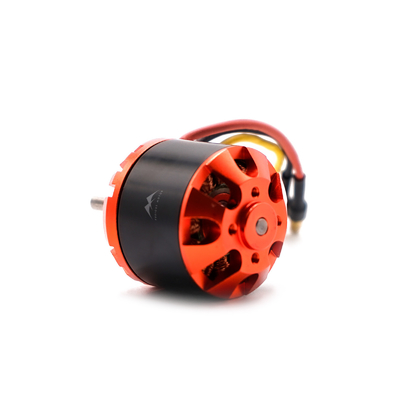

3536 Custom FPV Drone Motor Custom KV For Racing Power System

Brand Name:	Furious Motor
Model Number:	3536
MOQ:	10
Price:	$15.8
Packaging Details:	Carton with protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

800 / Customized

Max. Torque:

0.3 N.m

Input Voltage:

11 V - 30 V

Suggested Prop:

11 Inch - 14 Inch

Idle Current:

1.6 A - 2.9 A

Max. Current:

Max. Thrust:

2500 G

20000

Li-Po:

4S - 10S

Dimension:

35 Mm * 36 Mm

Weight:

128 G

Application:

Drone, FPV, Racing Drone

Supply Ability:

3000 pcs / month

Highlight:

3536 FPV Motor

FPV Motor 3536

11V fpv drone motor

Product Description

Introduction

The 3536 brushless DC motor is a highly adaptable option, offering customization in color, shaft size, KV rating, and torque to meet diverse application requirements. Built for power tools and home appliances, it incorporates 0.2mm laminations, precision-wound wire with a protective coating, and durable N42SH permanent magnets. Its compact and lightweight design ensures efficiency and dependable performance, making it a reliable choice for demanding applications.

Tech Specs

Model	3536
Type	Brushless DC motor
KV	800
Suggested ESC	4 S ~ 8 S
Max. Torque	0.3 N·m
Li-Po	4 S ~ 8 S
Max. Voltage	30 V
Max. Current	20 A
Max. Power	500 W
Motor Dimension	35 mm * 36 mm
Max. Thrust	2500 g
Weight	128 g
Application	FPV, racing drone

Details

3536 Custom FPV Drone Motor Custom KV For Racing Power System 0

3536 Custom FPV Drone Motor Custom KV For Racing Power System 1

3536 Custom FPV Drone Motor Custom KV For Racing Power System 2

3536 Custom FPV Drone Motor Custom KV For Racing Power System 3

3536 Custom FPV Drone Motor Custom KV For Racing Power System 4

3536 Custom FPV Drone Motor Custom KV For Racing Power System
