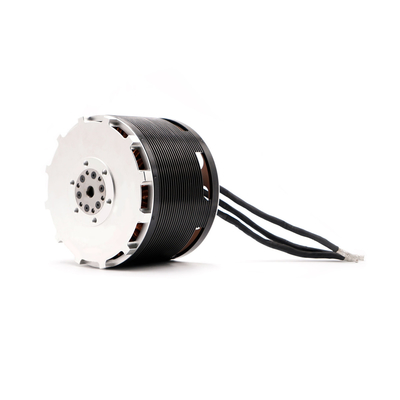

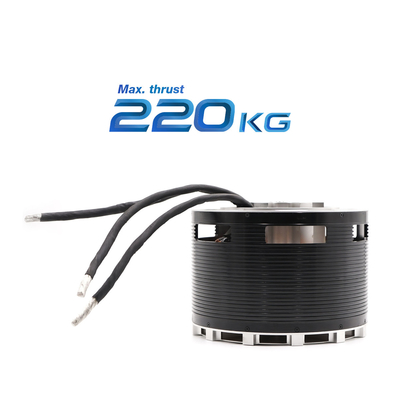

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone
  • name
  • name
  • name
  • name

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone

Brand Name: Furious Motor
Model Number: 240150
MOQ: 1
Price: $ 3599
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
240150
Dimension:
240 Mm * 150 Mm
KV:
10
Max. Thrust:
220 KG
Max. Torque:
234 N.m
Max. RPM:
2335
Suggested ESC:
400 V 160 A
Suggested Prop:
78 Inch Propeller
Max. Current:
153 A
Max. Voltage:
400 V
Max. Power:
59 KW
Li - Po:
48 S - 96 S
Hall Sensor:
Optional
Weight:
16 KG
Application:
Heavy Lift Drone
Supply Ability:
3000 pcs per month
Highlight:

240150 brushless dc motor

,

400V brushless dc motor

,

220kg 240150

Product Description

Intoroduction



The Furious Motor 240150 brushless motor stands as a cutting-edge brushless DC motor, meticulously crafted to achieve unparalleled performance in sophisticated propulsion setups. Designed for flawless integration with a 78-inch propeller and a 400V 160A ESC, this motor strikes an ideal harmony between outstanding power and remarkable efficiency. Delivering an extraordinary maximum thrust of up to 220kg, it serves as a powerful answer to the toughest aerial propulsion demands.





Tech Specs



Model 240150
Type Brushless DC motor
KV 10
Suggested ESC 400 V 160 A
Suggested Propeller 78 inch propeller
Max. Thrust 220 kg
Max. Torque 234 N·m
Max. RPM 2335
Li-Po 48 S ~ 96 S
Max. Voltage 400 V
Max. Current 153 A
Max. Power 59 kW
Motor Dimension 240 mm * 150mm
Weight 16 kg
Application Multi rotor drone, heavy lift drone





Details



High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone 0

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone 1

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone 2

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone 3



High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone 4

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone 5

High-Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone
