VTOL Motor 100V 238100 116kg Thrust Motor With Low Vibration For Stable Heavy Lift Drone

Brand Name:	Furious Motor
Model Number:	238100
MOQ:	1
Price:	$1788
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

238100

Dimension:

238mm * 100mm

Max. Thrust:

116KG

Max. Torque:

79N.m

Max. RPM:

Suggested ESC:

24S 300A

Suggested Prop:

63 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

7.8KG

Application:

Drone

Supply Ability:

3000 pcs per month

Highlight:

238100 thrust motor

116kg thrust motor

100V thrust motors

Product Description

Intoroduction

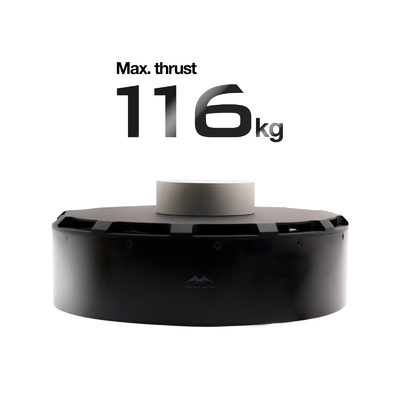

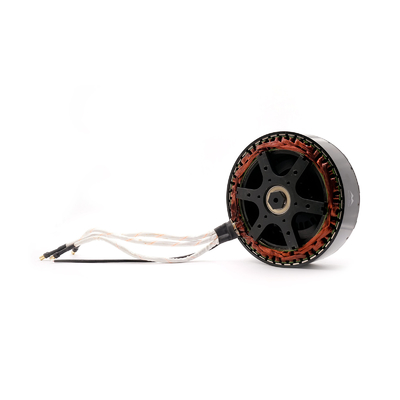

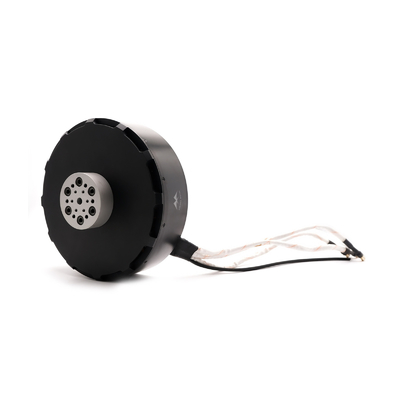

The Furious Motor 238100 brushless motor stands as a powerful and efficient brushless DC motor, expertly developed to enhance the propulsion performance of drone systems. Seamlessly crafted for integration with a 63-inch propeller and a 24S 300A ESC, this motor guarantees exceptional operation with precise control.

Offering an impressive maximum thrust of up to 116kg, it excels across diverse applications such as unmanned aircraft, heavy lift drones, and multirotor configurations, positioning itself as a dynamic solution for advanced aerial projects.

Tech Specs

Model	238100
Type	Brushless DC motor
KV	35
Suggested ESC	24 S 300 A
Suggested Propeller	66 inch propeller
Max. Thrust	116 kg
Max. Torque	79 N·m
Max. RPM	2881
Li-Po	14 S ~ 24 S
Max. Voltage	95 V
Max. Current	288 A
Max. Power	23.8 kW
Motor Dimension	238 mm * 100mm
Weight	7.8 kg
Application	Multi rotor drone, heavy lift drone

VTOL Motor 100V 238100 116kg Thrust Motor With Low Vibration For Stable Heavy Lift Drone 0

VTOL Motor 100V 238100 116kg Thrust Motor With Low Vibration For Stable Heavy Lift Drone 1

VTOL Motor 100V 238100 116kg Thrust Motor With Low Vibration For Stable Heavy Lift Drone 2

VTOL Motor 100V 238100 116kg Thrust Motor With Low Vibration For Stable Heavy Lift Drone 3

VTOL Motor 100V 238100 116kg Thrust Motor With Low Vibration For Stable Heavy Lift Drone 4

VTOL Motor 100V 238100 116kg Thrust Motor With Low Vibration For Stable Heavy Lift Drone 5

Efficient VTOL Motor 100V 238100 116kg Thrust Motor With Low-Vibration For Stable Heavy Lift Drone
