VESC 4 60V 50A Mini Motor Controller ESC for Electric Skateboard and DIY Project

Brand Name:	Furious Motor
Model Number:	VESC 75 V 200 A
MOQ:	1
Price:	$79
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

VESC 4

Voltage:

8 V ~ 60 V

Continuous Current:

Burst Current:

150 A

5 V, 1.5 A

Mode:

DC, BLDC, FOC

Port:

USB, CAN, UART, SPI, IIC

Sensor:

ABI, HALL, AS5047, AS5048A

Input Source:

PPM, ADC, NRF, UART

Size:

50 Mm * 62 Mm * 19 Mm

Throttle Loss Protection:

Error Signal Protection:

Temperature Protection:

Voltage Protection:

Lock Protection:

Weight:

Supply Ability:

3000 pcs per month

Highlight:

60V Mini Motor Controller ESC

Motor ESC for Electric Skateboard

50A Mini Motor Controller ESC

Product Description

Introduction

Furious Motor VESC 4 Motor Controller is a robust, high-performance ESC designed for a wide range of applications—from electric skateboards and underwater thrusters to DIY robotics and power tools. Built on the reliable V4.20 hardware and running the latest VESC firmware, it delivers smooth, customizable motor control and superior thermal performance in a compact form factor.

With support for 3–13S LiPo batteries, the controller handles 50A continuous and up to 150A peak current, making it suitable for both lightweight and demanding motor setups. The programmable cutoff voltage, software timing calibration, and reverse function ensure flexibility for various project needs, while the 5V 1.5A internal BEC reliably powers external electronics.

Tech Specs

Model	VESC 4
Voltage	8 V ~ 60 V
Continuous Current	50 A
Burst Current	150 A
BEC	5 V, 1.5 A
Mode	DC, BLDC, FOC
Port	USB, CAN, UART, SPI, IIC
Sensor	ABI, HALL, AS5047, AS5048A
Input Source	PPM, ADC, NRF, UART
Size	50 mm * 62 mm * 19 mm
Throttle Loss Protection	Yes
Error Signal Output	Yes
Temperature Protection	Yes
Voltage Protection	Yes
Lock Protection	Yes
Weight	33g

Details

1.Delivering 50A continuous and 150A peak current, the VESC 4 is built to handle demanding applications like electric skateboards, thrusters, and power tools with ease.

2.Supports 3–13S LiPo batteries (8V–60V), giving users flexibility to work with a broad range of power setups across various projects.

3.Features like programmable voltage cutoff, software timing calibration, and reverse drive allow for detailed motor behavior tuning to match specific project needs.

4.The built-in 5V 1.5A BEC provides stable power for external electronics like receivers, controllers, or sensors—no need for an external regulator

5.Compatible with PWM input, the controller integrates easily with a variety of remote systems, making it ideal for both DIY makers and advanced developers.

6.Whether you’re building an electric skateboard, underwater thruster, robotic system, the VESC 4 is engineered to support a wide range of DIY and custom projects with reliable, flexible performance.

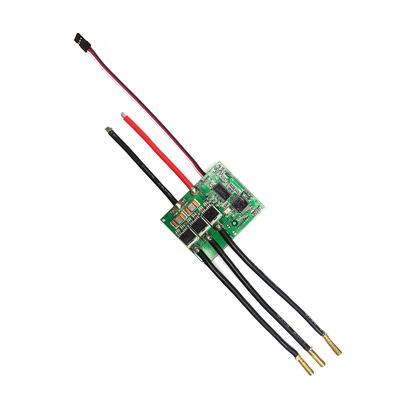

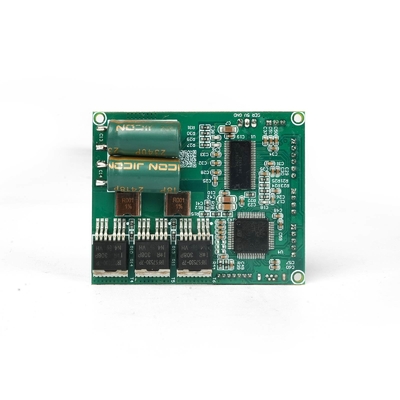

VESC 4 60V 50A Mini Motor Controller ESC for Electric Skateboard and DIY Project 0

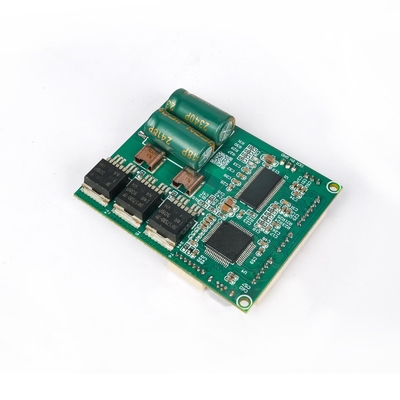

VESC 4 60V 50A Mini Motor Controller ESC for Electric Skateboard and DIY Project 1

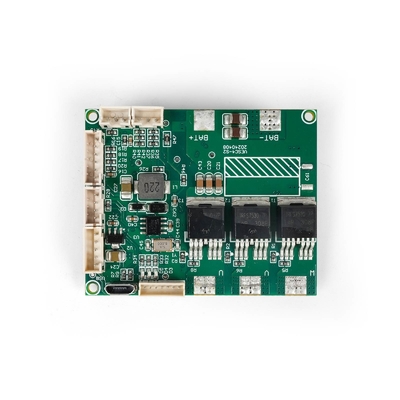

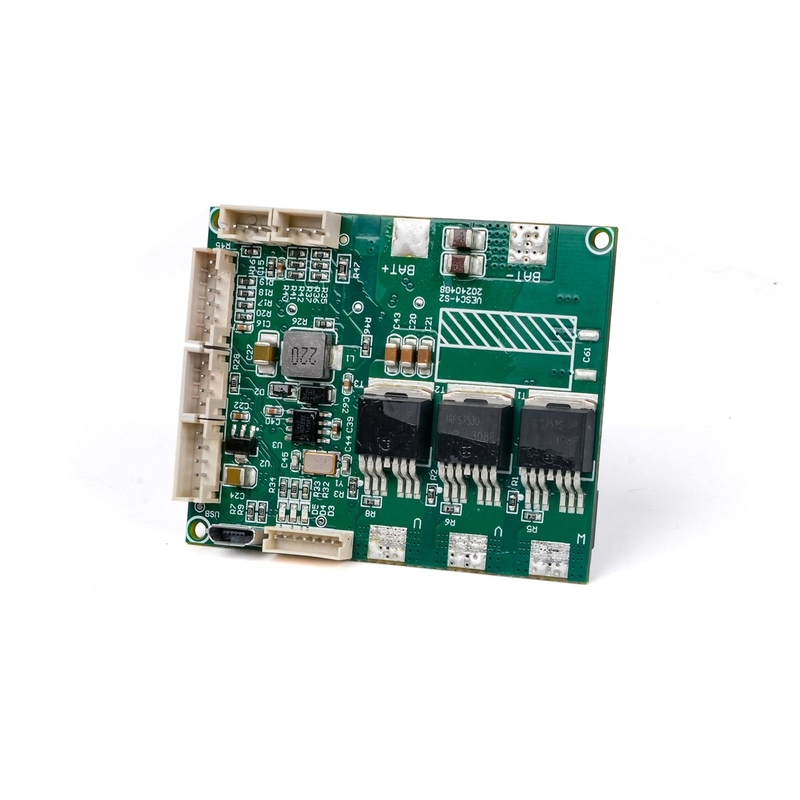

VESC 4 60V 50A Mini Motor Controller ESC for Electric Skateboard and DIY Project 2
