120100 61KG Electric Propulsion Thrust With Motor And 24S 200A ESC And 45 Inch Propeller

Brand Name:	Furious Motor
Model Number:	120100
MOQ:	1
Price:	$1471
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

120-100

Dimension:

120mm * 100mm

Max. Thrust:

Max. Torque:

33N.m

Max. RPM:

Suggested ESC:

24S 200A

Suggested Prop:

45 Inch

Max. Current:

Max. Voltage:

Max. Power:

12.3KW

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

4.84KG

Application:

Drone, Paramotor

Supply Ability:

3000 pcs per month

Highlight:

120100 electric propulsion thrust

61KG electric propulsion thrust

50KV electric motor for paramotor

Product Description

Intoroduction

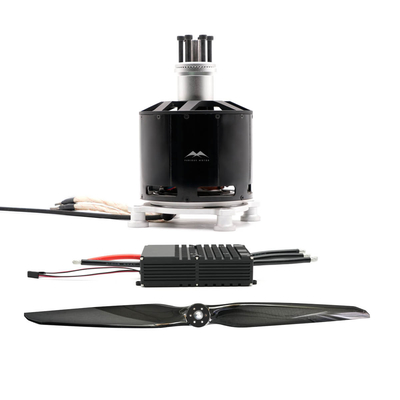

The 120-100 61kg propulsion system is specifically designed for paramotors and paragliders, delivering exceptional performance and reliability. Optimized for smooth power output, it pairs seamlessly with a 45-inch propeller and a 24S 200A motor controller, ensuring precise control and efficiency. With a maximum thrust of 61kg, this powerhouse is built to meet the demands of high-performance aerial applications. Experience enhanced stability and durability, making the 120-100 an ideal choice for pilots seeking a reliable and efficient propulsion system.

Tech Specs

System

Max. Thrsut	61 kg / rotor
Takeoff Weight	20 kg - 30 kg / rotor
Suggested ESC	24 S 200 A
Suggested Propeller	45 inch propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	4.84 kg
Application	Paramotor, paraglider

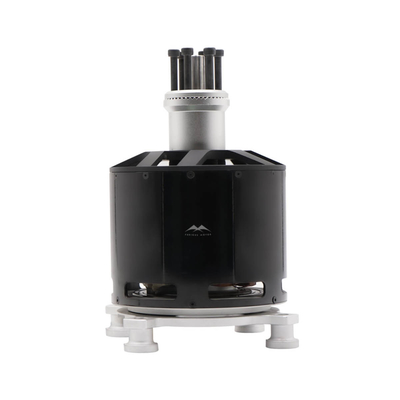

Motor

Model	120-100
KV	50
Max. Thrsut	61 kg
Max. Torque	33 N·m
Max. RPM	3648
Dimension	120 mm * 100 mm
Weight	3.9 kg

ESC

Model	24 S 200 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Current	240 A
Weight	595 g
Dimension	140.5 mm * 66.6 mm * 34.4 mm

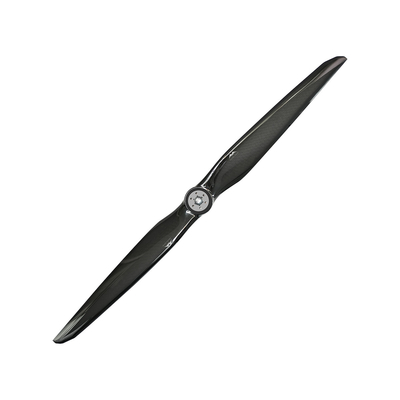

Propeller

Model	45 inch
Diameter	45 inch
Material	Carbon fiber
Weight	0.35 kg

Details

120100 61KG Electric Propulsion Thrust With Motor And 24S 200A ESC And 45 Inch Propeller 0

120100 61KG Thrust Propulsion System With Motor And 24S 200A ESC And 45 Inch Propeller For Paramotor And Paraglider
