Lightweight Paramotor Brushless 15060 56kg Thrust Including Motor Controller And Propeller

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

Lightweight Paramotor Brushless 15060 56kg Thrust Including Motor Controller And Propeller

Brand Name:	Furious Motor
Model Number:	15060
MOQ:	1
Price:	$1722
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

150-60

Dimension:

150mm * 60mm

Max. Thrust:

Max. Torque:

31N.m

Max. RPM:

Suggested ESC:

24S 200A

Suggested Prop:

45 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

2.5KG

Application:

Paramotor, Paraglider

Supply Ability:

3000 pcs per month

Highlight:

Lightweight paramotor

15060 paramotor

56kg paramotor equipment

Product Description

Intoroduction

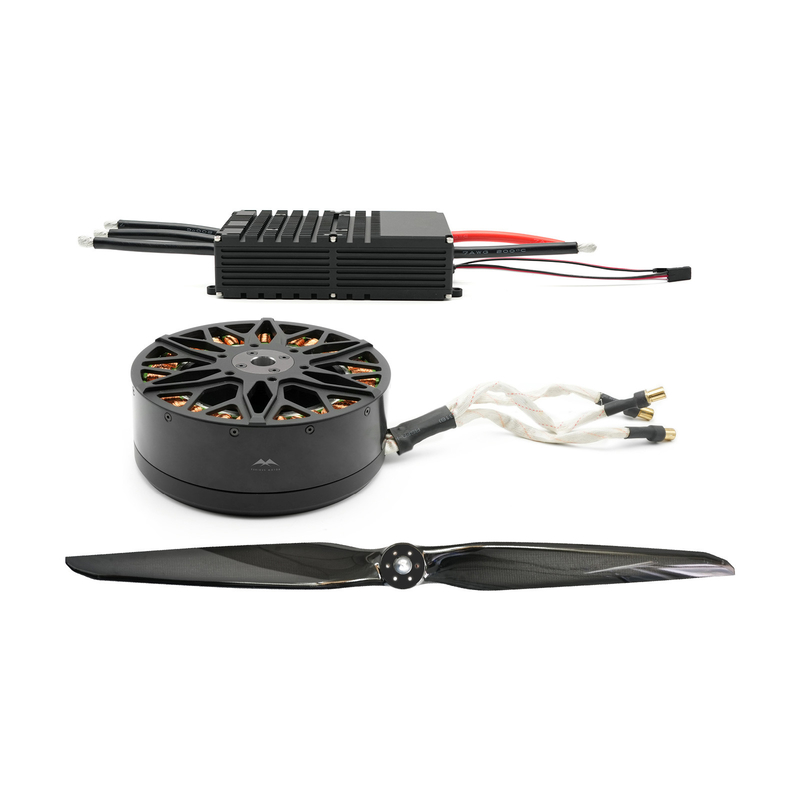

The 15060 Propulsion System is built for paramotors and paragliders, offering a balance of power and efficiency. Delivering up to 56kg of thrust while weighing just 2.5kg, this system ensures a strong yet lightweight solution for aerial applications.

Perfectly paired with a 45-inch propeller and a 24S 200A ESC, the 15060 brushless motor provides smooth and reliable performance. Designed for stability and efficiency, it is an excellent choice for those seeking a high-performance propulsion system for their flying experience.

Tech Specs

System

Max. Thrsut	58 kg / rotor
Takeoff Weight	20 kg - 29 kg / rotor
Suggested ESC	24 S 200 A
Suggested Propeller	45 inch 2-blade propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	3.44 kg
Application	Paramotor and paraglider

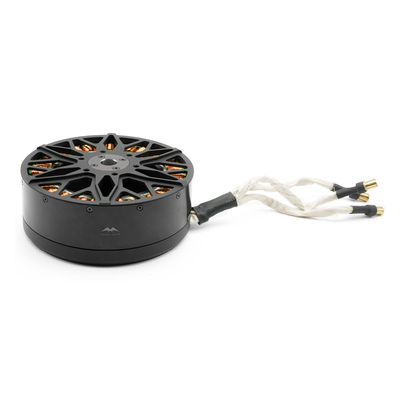

Motor

Model	150-60
KV	72
Max. Thrsut	58 kg
Max. Torque	31 N·m
Max. RPM	3588
Dimension	150 mm * 60 mm
Weight	2.5 kg

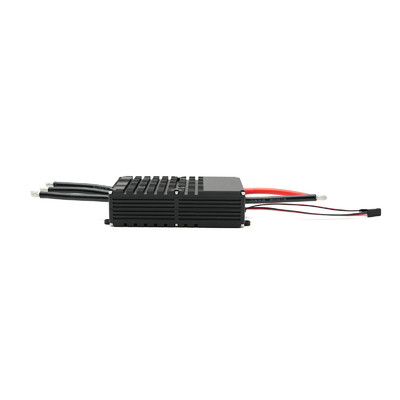

ESC

Model	24 S 200 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Current	240 A
Weight	595 g
Dimension	140.5 mm * 66.6 mm * 34.4 mm

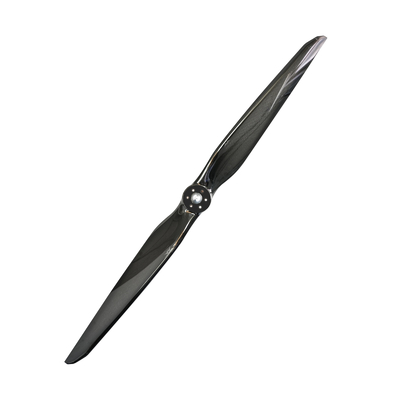

Propeller

Model	45 inch 2-blade
Diameter	45 inch
Material	Carbon fiber
Weight	350 g

Details

Lightweight Paramotor Brushless 15060 56kg Thrust Including Motor Controller And Propeller 0

Lightweight Paramotor Brushless 15060 56kg Thrust Including Motor Controller And Propeller 1

Lightweight Paramotor Brushless 15060 56kg Thrust Including Motor Controller And Propeller 2

Lightweight Paramotor Brushless 15060 56kg Thrust Including Motor Controller And Propeller 3

Lightweight Paramotor Brushless 15060 56kg Thrust Including Motor Controller And Propeller 4

Lightweight Paramotor Brushless 15060 56kg Thrust Including Motor Controller And Propeller 5

Lightweight Paramotor Brushless 15060 56kg Thrust Including Motor Controller And Propeller 6

Lightweight Paramotor Brushless Motor 15060 56kg Thrust Including Motor Controller And Propeller
