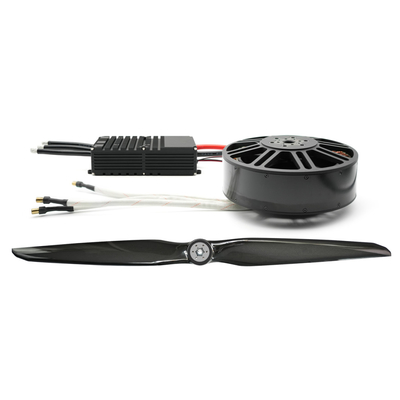

95KG Thrust System With 19460 Motor And 24S 300A ESC And 54 Inch Propeller

Brand Name:	Furious Motor
Model Number:	19460
MOQ:	1
Price:	$2268
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

19460

Dimension:

194mm * 60mm

Max. Thrust:

Max. Torque:

61N.m

Max. RPM:

Suggested ESC:

24S 200A

Suggested Prop:

54 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

6.16KG

Application:

Paramotor, Paraglider

Supply Ability:

3000 pcs per month

Highlight:

95KG electric para motor

19460 electric para motor

300A electric motor paraglider

Product Description

Intoroduction

The 19460 brushless motor is built for paramotors and paragliders, offering exceptional power and efficiency. Designed for high-performance flight, it pairs seamlessly with a 54-inch propeller and a 24S 300A motor controller, delivering an impressive 95kg of thrust.

Its standout feature is its customizability, allowing pilots to fine-tune configurations for optimal performance. Whether for smooth cruising or heavy-lift applications, the 19460 provides the reliability and power needed for an outstanding flying experience.

Tech Specs

System

Max. Thrsut	95 kg / rotor
Takeoff Weight	25 kg - 45 kg / rotor
Suggested ESC	24 S 300 A
Suggested Propeller	54 inch 2-blade propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	6.16 kg
Application	Paramotor, paraglider

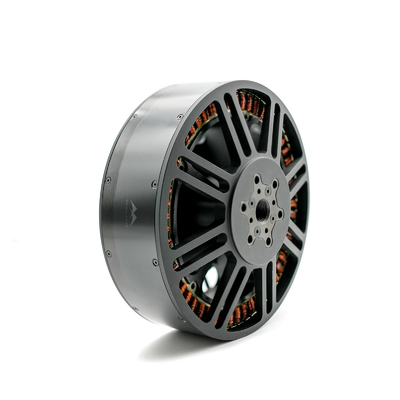

Motor

Model	194-60
KV	35
Max. Thrsut	95 kg
Max. Torque	61 N·m
Max. Voltage	92 V
Max. Current	165 A
Max. Power	23 KW
Max. RPM	3009
Dimension	194 mm * 60 mm
Weight	4.75 kg

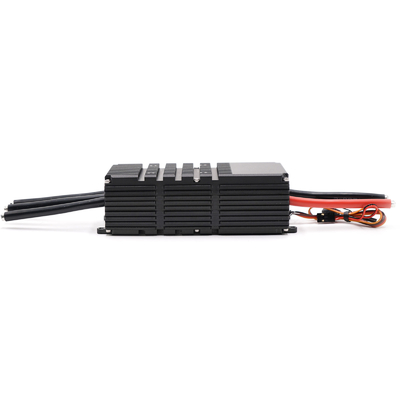

ESC

Model	24 S 300 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Input Current	300 A
Weight	812 g
Dimension	140.5 mm * 66.6 mm * 47.1 mm

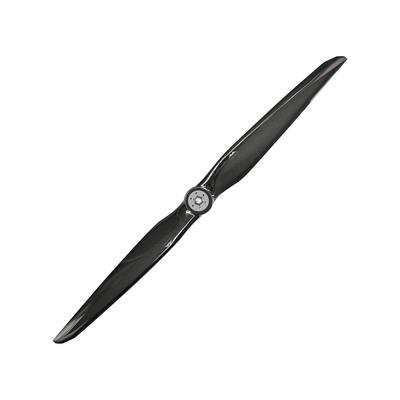

Propeller

Model	54 inch 2-blade
Diameter	54 inch
Material	Carbon fiber
Weight	600 g

Details

95KG Thrust System With 19460 Motor And 24S 300A ESC And 54 Inch Propeller 0

95KG Thrust System With 19460 Motor And 24S 300A ESC And 54 Inch Propeller For Paramotor And Paraglider
