240110 High Thrsut Unmanned Aircraft Motor 400V For Long Endurance Flights

Brand Name:	Furious Motor
Model Number:	240110
MOQ:	1
Price:	$ 2299
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

240110

Dimension:

240 Mm * 110 Mm

Max. Thrust:

180 KG

Max. Torque:

173 N.m

Max. RPM:

Suggested ESC:

400 V 160 A

Suggested Prop:

72 Inch Propeller

Max. Current:

127 A

Max. Voltage:

400 V

Max. Power:

42 KW

Li - Po:

48 S - 96 S

Hall Sensor:

Optional

Weight:

12.8 KG

Application:

Heavy Lift Drone

Supply Ability:

3000 pcs per month

Highlight:

240110 heavy lift drone motor

400V heavy lift drone motor

180KG drone motor heavy lift

Product Description

Intoroduction

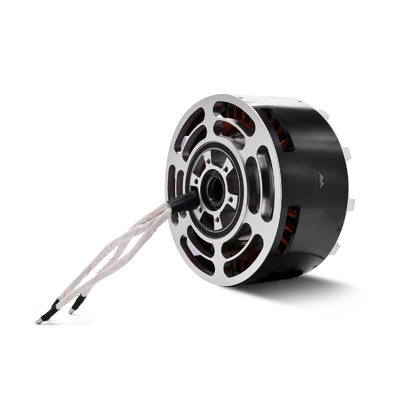

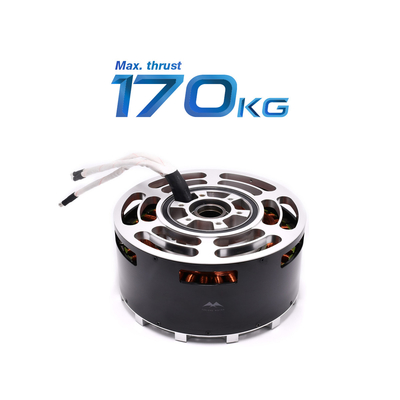

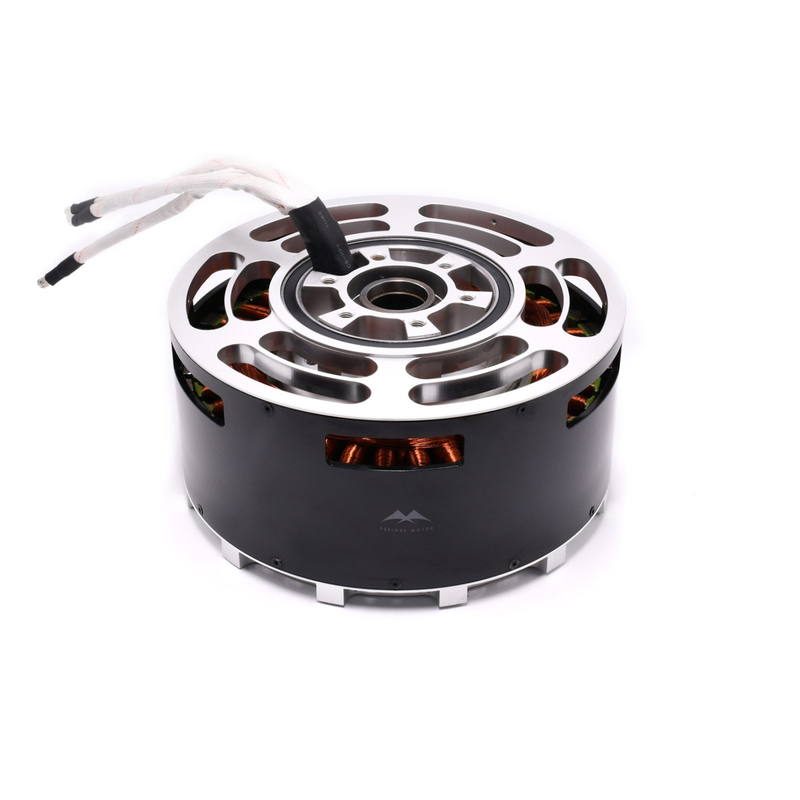

The Furious Motor 240110 brushless motor stands as an innovative brushless DC motor, precisely crafted to unlock exceptional propulsion potential for sophisticated aerial vehicles. Harmoniously matched with a 72-inch propeller and a 400V 160A ESC, this motor ensures smooth and dependable operation.

Delivering an impressive maximum thrust of 180kg, it serves as an outstanding option for unmanned aircraft, heavy lift drones, and mega drone platforms, offering unparalleled strength to fuel the most daring flight pursuits.

Tech Specs

Model	240110
Type	Brushless DC motor
KV	10
Suggested ESC	400 V 160 A
Suggested Propeller	72 inch propeller
Max. Thrust	180 kg
Max. Torque	173 N·m
Max. RPM	257
Li-Po	48 S ~ 96 S
Max. Voltage	400 V
Max. Current	127 A
Max. Power	42 kW
Motor Dimension	202 mm * 150mm
Weight	12.8 kg
Application	Multi rotor drone, heavy lift drone

Details

240110 High Thrsut Unmanned Aircraft Motor 400V For Long Endurance Flights 0

240110 High Thrsut Unmanned Aircraft Motor 400V For Long Endurance Flights 1

240110 High Thrsut Unmanned Aircraft Motor 400V For Long Endurance Flights 2

240110 High Thrsut Unmanned Aircraft Motor 400V For Long Endurance Flights 3

240110 High Thrsut Unmanned Aircraft Motor 400V For Long Endurance Flights 4

240110 High Thrsut Unmanned Aircraft Motor 400V For Long Endurance Flights 5

Durable 240110 High Thrsut Unmanned Aircraft Motor 400V For Long-Endurance Flights
