23850 Lightweight UAV Motor 100V With Low Vibration Design For Unmanned Aircraft

Brand Name:	Furious Motor
Model Number:	23850
MOQ:	1
Price:	$1260
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

23850

Dimension:

238mm * 50mm

Max. Thrust:

Max. Torque:

80N.m

Max. RPM:

Suggested ESC:

24S 300A

Suggested Prop:

55 Tri-blade Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

4.5KG

Application:

Drone, Paramotor

Supply Ability:

3000 pcs per month

Highlight:

Lightweight uav motor

23850 uav motor

100V uav electric motors

Product Description

Intoroduction

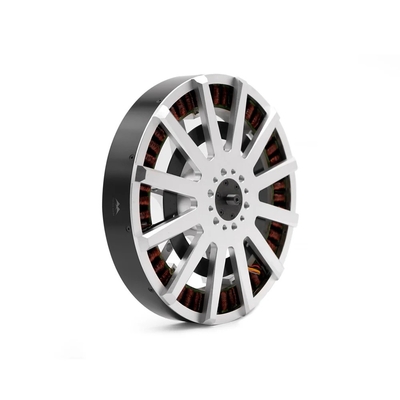

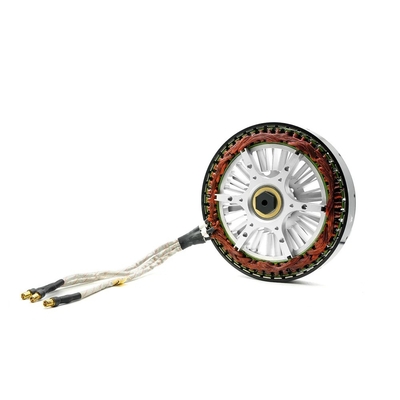

The Furious Motor 23850 brushless motor embodies the forefront of propulsion innovation, meticulously developed as an enhanced powerhouse tailored for large drones, UAVs, paramotors, paragliders, cargo drones, and multirotor configurations.

Engineered for peak efficiency, this motor pairs effortlessly with a 55-inch 3-blade propeller and a 24S 300A motor controller, delivering precise handling and optimized power allocation. With an impressive maximum thrust of 98kg, it has earned its reputation as a top seller for large drones, establishing itself as the preferred solution for the most demanding heavy-duty aerial tasks.

Tech Specs

Model	23850
Type	Brushless DC motor
KV	35
Suggested ESC	24 S 300 A
Suggested Propeller	55 inch 3-blade

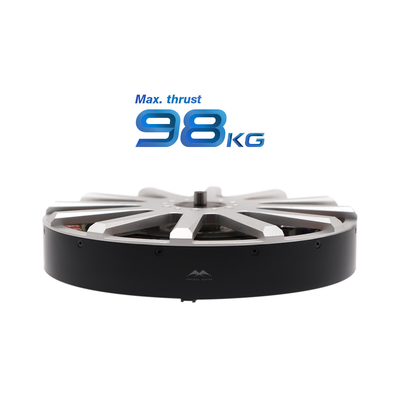

Max. Thrust	98 kg
Max. Torque	80 N·m
Max. RPM	2420
Li-Po	14 S ~ 24 S
Max. Voltage	90 V
Max. Current	280 A
Max. Power	20 kW
Motor Dimension	238 mm * 50mm
Weight	4.5 kg
Application	Multi rotor drone, heavy lift drone, paramotor

Details

23850 Lightweight UAV Motor 100V With Low Vibration Design For Unmanned Aircraft 0

23850 Lightweight UAV Motor 100V With Low Vibration Design For Unmanned Aircraft 1

23850 Lightweight UAV Motor 100V With Low Vibration Design For Unmanned Aircraft 2

23850 Lightweight UAV Motor 100V With Low Vibration Design For Unmanned Aircraft 3

23850 Lightweight UAV Motor 100V With Low Vibration Design For Unmanned Aircraft 4

23850 Lightweight UAV Motor 100V With Low Vibration Design For Unmanned Aircraft 5

23850 Lightweight Efficient UAV Motor 100V With Low-Vibration Design For Unmanned Aircraft
