High Torque Unmanned Aircraft Motor 238100 Brushless 100V For Industrial Applications

Brand Name:	Furious Motor
Model Number:	238100
MOQ:	1
Price:	$1788
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

238100

Dimension:

238mm * 100mm

Max. Thrust:

116KG

Max. Torque:

79N.m

Max. RPM:

Suggested ESC:

24S 300A

Suggested Prop:

63 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

7.8KG

Application:

Drone

Supply Ability:

3000 pcs per month

Highlight:

High Torque brushless motor

238100 brushless motor

100V bldc motor

Product Description

Intoroduction

The Furious Motor 238100 brushless motor emerges as a robust and high-efficiency brushless DC motor, skillfully engineered to elevate propulsion capabilities for drone systems. Perfectly designed to integrate smoothly with a 63-inch propeller and a 24S 300A ESC, this motor ensures outstanding performance with remarkable accuracy.

Delivering a commanding maximum thrust of up to 116kg, it thrives in a variety of roles, including unmanned aircraft, heavy lift drones, and multirotor setups, establishing itself as a versatile force for cutting-edge aerial missions.

Tech Specs

Model	238100
Type	Brushless DC motor
KV	35
Suggested ESC	24 S 300 A
Suggested Propeller	66 inch propeller

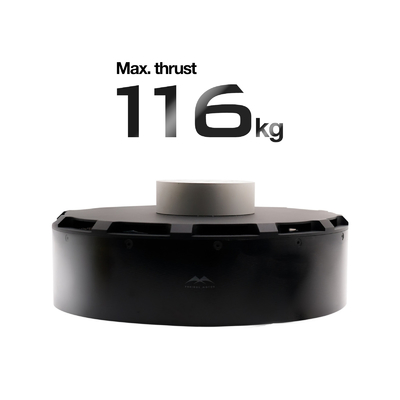

Max. Thrust	116 kg
Max. Torque	79 N·m
Max. RPM	2881
Li-Po	14 S ~ 24 S
Max. Voltage	95 V
Max. Current	288 A
Max. Power	23.8 kW
Motor Dimension	238 mm * 100mm
Weight	7.8 kg
Application	Multi rotor drone, heavy lift drone

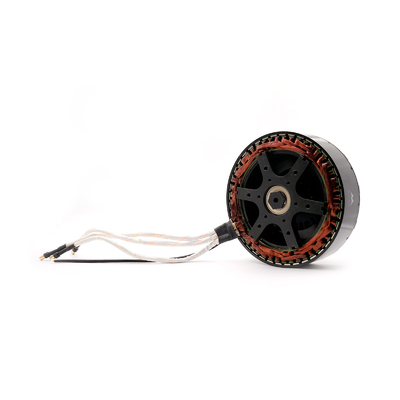

High Torque Unmanned Aircraft Motor 238100 Brushless 100V For Industrial Applications 0

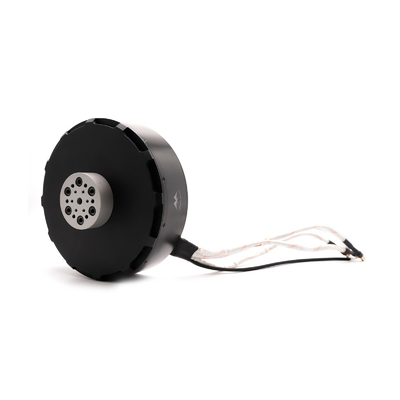

High Torque Unmanned Aircraft Motor 238100 Brushless 100V For Industrial Applications 1

High Torque Unmanned Aircraft Motor 238100 Brushless 100V For Industrial Applications 2

High Torque Unmanned Aircraft Motor 238100 Brushless 100V For Industrial Applications 3

High Torque Unmanned Aircraft Motor 238100 Brushless 100V For Industrial Applications 4

High Torque Unmanned Aircraft Motor 238100 Brushless 100V For Industrial Applications 5
