Good price online

products details

Home > Products >
VTOL Drone Motor
>
154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V
All Category

Heavy Lift Drone Motor

Underwater Thruster Motor

Electric Surfboard Motor

Electric Skateboard Motor

Agricultural Drone Motor

Racing Drone Motor

FPV Motor

Power Tool Motor

Paramotor

Drone Propulsion System

Underwater Propulsion System

Motor ESC

Drone Propeller

Motor Accessories

Multi Rotor Drone Motor

Unmanned Aircraft Motor

Efoil Motor

Carbon Fiber Propeller

VTOL Drone Motor

Drone ESC

Brushless DC Motor
Contact Us
Mr. Han
han@furiousmotor.com
+86 139 2465 2635
Contact Now
154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V
  • name
  • name
  • name

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V

Brand Name: Furious Motor
Model Number: 154120
MOQ: 1
Price: $885
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
154120
Dimension:
154mm * 120mm
KV:
54
Max. Thrust:
80KG
Max. Torque:
47N.m
Max. RPM:
3642
Suggested ESC:
24S 300A
Suggested Prop:
47 Inch Propeller
Max. Current:
252A
Max. Voltage:
90V
Max. Power:
18KW
Li - Po:
14S - 24S
Hall Sensor:
Optional
Weight:
5.9KG
Application:
Drone, Paramotor
Supply Ability:
3000 pcs per month
Highlight:

154120 brushless motor dc

,

Robust brushless motor dc

,

80kg motor brushless dc

Product Description

Intoroduction

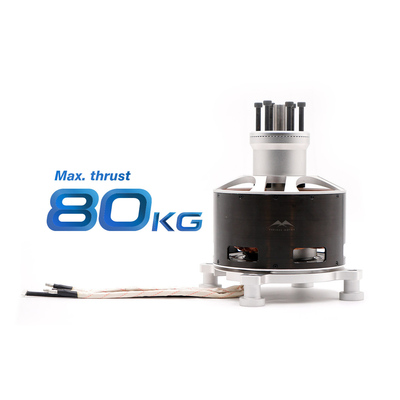

The 154120 brushless motor is expertly crafted to drive an extensive range of aerial vehicles, including large drones, UAVs, paramotors, paragliders, multirotor configurations, and unmanned aircraft. Meticulously sculpted for peak performance, this motor harmonizes effortlessly with a 47-inch propeller and a 24S 300A motor controller, providing precise command and efficient power allocation.

With an impressive maximum thrust of 80kg, it has emerged as a top choice for demanding drone missions. Enhance your aerial endeavors with exceptional stability, as the 154120 Brushless Motor sets new standards for dependability and accuracy in propulsion technology.





Tech Specs

Model 154120
Type Brushless DC motor
KV 55
Suggested ESC 24 S 300 A
Suggested Propeller 47 inch
Max. Thrust 80 kg
Max. Torque 47 N·m
Max. RPM 3642
Li-Po 14 S ~ 24 S
Max. Voltage 90 V
Max. Current 252 A
Max. Power 18 kW
Motor Dimension 154 mm * 120mm
Weight 5.9 kg
Application Multi rotor drone, heavy lift drone, paramotor





Details



154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V 0

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V 1

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V 2

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V 3

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V 4



154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V 5

Robust Brushless DC Motor 154120 With 80kg Thrust For VTOL Drone 100V With Enhanced Reliability



Tags:

motors brushless dc

brushless motor

brushless dc motors
