Powerful VTOL Drone Motor 12090 With High Thrust For Vertical Take Off
  • name
  • name
  • name
  • name

Powerful VTOL Drone Motor 12090 With High Thrust For Vertical Take Off

Brand Name: Furious Motor
Model Number: 12090
MOQ: 1
Price: $344
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
12090
Dimension:
120mm * 90mm
KV:
78
Max. Thrust:
42KG
Max. Torque:
18N.m
Max. RPM:
4770
Suggested ESC:
24S 150A
Suggested Prop:
36 Inch Propeller
Max. Current:
136A
Max. Voltage:
79V
Max. Power:
9KW
Li - Po:
14S - 24S
Hall Sensor:
Optional
Weight:
2.78KG
Application:
Drone, Paramotor
Supply Ability:
3000 pcs per month
Highlight:

VTOL motor dc brushless

,

12090 motor dc brushless

,

High Thrust brushless dc motor high speed

Product Description



Intoroduction

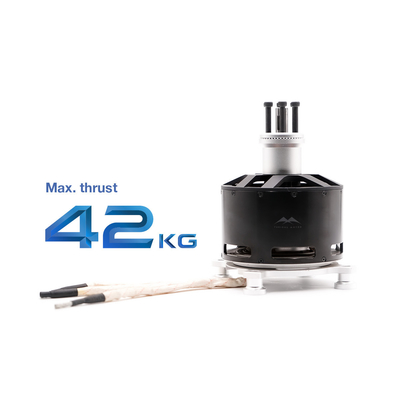

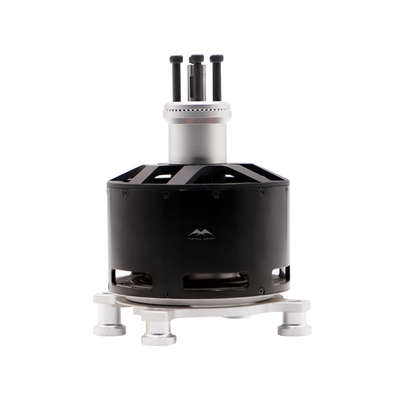

Introducing the 12090 Brushless Motor, a dynamic and resilient solution designed to conquer a wide spectrum of demanding aerial operations, including large drones, UAVs, paramotors, paragliders, cargo delivery drones, and multirotor setups. Precision-crafted for exceptional performance, this motor integrates seamlessly with a 36-inch propeller and a 24S 150A motor controller, ensuring accurate control and efficient power management.

Boasting an impressive maximum thrust of 42kg, this top-performing motor shines in heavy-duty applications, providing outstanding stability, unmatched reliability, and precision to propel your aerial projects to unprecedented levels.





Tech Specs

Model 12090
Type Brushless DC motor
KV 80
Suggested ESC 24 S 150 A
Suggested Propeller 36 inch
Max. Thrust 42 kg
Max. Torque 18 N·m
Max. RPM 4770
Li-Po 14 S ~ 24 S
Max. Voltage 79 V
Max. Current 136 A
Max. Power 9 kW
Motor Dimension 120 mm * 90 mm
Weight 2.78 kg
Application Multi rotor drone, heavy lift drone, paramotor



Details



Powerful VTOL Drone Motor 12090 With High Thrust For Vertical Take Off 0Powerful VTOL Drone Motor 12090 With High Thrust For Vertical Take Off 1Powerful VTOL Drone Motor 12090 With High Thrust For Vertical Take Off 2Powerful VTOL Drone Motor 12090 With High Thrust For Vertical Take Off 3Powerful VTOL Drone Motor 12090 With High Thrust For Vertical Take Off 4Powerful VTOL Drone Motor 12090 With High Thrust For Vertical Take Off 5











Powerful VTOL Drone Motor 12090 With High-Thrust For Vertical Take-Off
