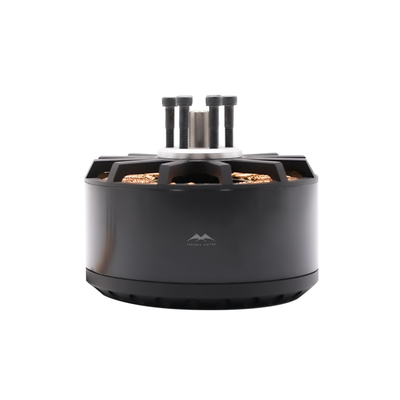

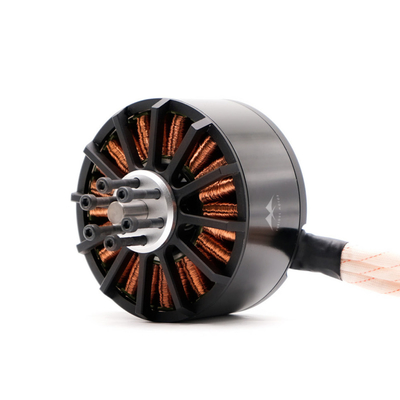

12070 VTOL Propulsion Motor High Efficiency Motor For Long Duration Flights

Brand Name:	Furious Motor
Model Number:	12070
MOQ:	1
Price:	$300
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

12070

Dimension:

120mm * 70mm

Max. Thrust:

Max. Torque:

18N.m

Max. RPM:

Suggested ESC:

24S 150A

Suggested Prop:

36 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

2.4KG

Application:

Drone

Supply Ability:

3000 pcs per month

Highlight:

12070 propulsion motor

VTOL propulsion motor

80kv electric propulsion motor

Product Description

Intoroduction

The Furious Motor 12070 BLDC is specifically engineered to excel across a broad array of applications, such as large drones, UAVs, multirotor systems, robotics, and electric tools. This advanced motor is meticulously optimized for peak efficiency, effortlessly pairing with a 36-inch propeller and a 24S 150A motor controller to ensure precise operation and effective energy allocation.

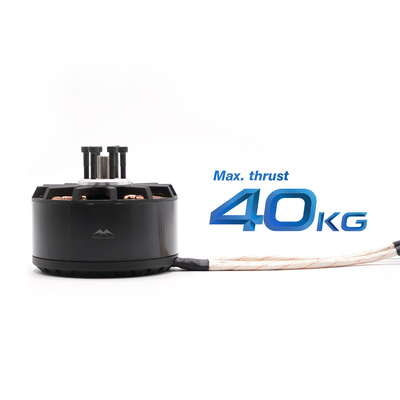

With a substantial maximum thrust of 40kg, it provides powerful performance, making it an excellent choice for a variety of heavy lift drone projects.

Tech Specs

Model	12070
Type	Brushless DC motor
KV	80
Suggested ESC	24 S 150 A
Suggested Propeller	36 inch
Max. Thrust	41 kg
Max. Torque	16 N·m
Max. RPM	5400
Li-Po	14 S ~ 24 S
Max. Voltage	79 V
Max. Current	112 A
Max. Power	8.5 kW
Motor Dimension	120 mm * 70mm
Weight	2.4 kg
Application	Multi rotor drone, heavy lift drone, paramotor

Details

12070 VTOL Propulsion Motor High Efficiency Motor For Long Duration Flights 0

12070 VTOL Propulsion Motor High Efficiency Motor For Long Duration Flights 1

12070 VTOL Propulsion Motor High-Efficiency Motor For Long-Duration Flights
