10860 High Power 40KG Thrust Motor Brushless DC Motor For VTOL Drone Multi Rotor Drone

Brand Name:	Furious Motor
Model Number:	10860
MOQ:	1
Price:	$190
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

10860

Dimension:

108 Mm * 60 Mm

Max. Thrust:

26 Kg

Max. Torque:

16 N.m

Max. RPM:

Suggested ESC:

75 V 200 A

Suggested Prop:

36 Inch Propeller

Max. Current:

150 A

Max. Voltage:

Max. Power:

Li - Po:

10 S - 16 S

Hall Sensor:

Optional

Weight:

1.2 Kg

Application:

Multi Rotor Drone

Supply Ability:

3000 pcs per month

Highlight:

10860 Brushless DC Motor

40KG Brushless DC Motor

High Power bldc brushless dc motors

Product Description

Intoroduction

Unveiling the Furious Motor 10860 brushless DC motor, a robust powerhouse engineered to drive an extensive range of advanced aerial platforms, including multirotor drones, delivery systems, camera-equipped drones, quadcopters, and heavy-lift designs.

Featuring a notable thrust capacity of up to 26kg, this motor pairs seamlessly with a 36-inch propeller and a 24S 150A ESC, delivering superior efficiency and performance. Built with comprehensive customizability to align with your unique requirements, the 10860 offers precisely calibrated operation, underpinned by our commitment to outstanding power and enduring reliability for your aerial endeavors.

Tech Specs

Model	10860
Type	Brushless DC motor
KV	100
Suggested ESC	75 V 200 A
Suggested Propeller	36 inch 2-blade
Max. Thrust	26 kg
Max. Torque	16 N·m
Max. RPM	5100
Li-Po	10 S ~ 16 S
Max. Voltage	53 V
Max. Current	150 A
Max. Power	8 kW
Motor Dimension	108 mm * 60mm
Weight	1.2 kg
Application	Multi rotor drone, camera drone

Details

10860 High Power 40KG Thrust Motor Brushless DC Motor For VTOL Drone Multi Rotor Drone 0

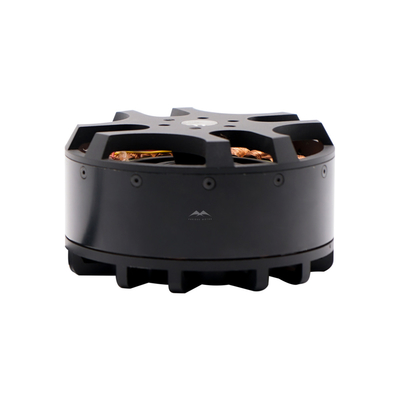

10860 High Power 40KG Thrust Motor Brushless DC Motor For VTOL Drone Multi Rotor Drone 1

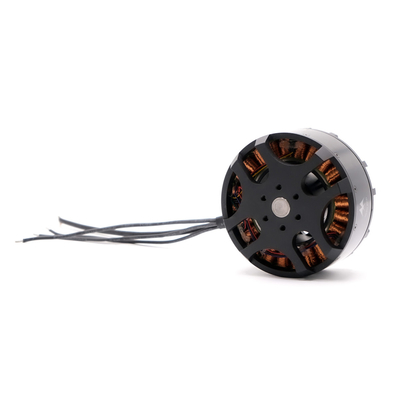

10860 High Power 40KG Thrust Motor Brushless DC Motor For VTOL Drone Multi Rotor Drone 2

10860 High Power 40KG Thrust Motor Brushless DC Motor For VTOL Drone Multi Rotor Drone 3

10860 High Power 40KG Thrust Motor Brushless DC Motor For VTOL Drone Multi Rotor Drone 4

10860 High-Power 40KG Thrust Motor Brushless DC Motor For VTOL Drone Multi Rotor Drone
