High Thrust 12070 Unmanned Aircraft Motor For Industrial Payload Delivery

Brand Name:	Furious Motor
Model Number:	12070
MOQ:	1
Price:	$300
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

12070

Dimension:

120mm * 70mm

Max. Thrust:

Max. Torque:

18N.m

Max. RPM:

Suggested ESC:

24S 150A

Suggested Prop:

36 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

2.4KG

Application:

Drone

Supply Ability:

3000 pcs per month

Highlight:

40KG high speed brushless dc electric motor

12070 high speed brushless dc electric motor

80KV high speed brushless dc motor

Product Description

Intoroduction

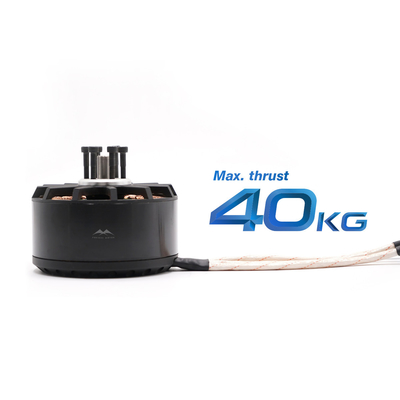

The Furious Motor is engineered to excel across a wide array of uses, such as large drones, UAVs, multirotor systems, robotics, and electric tools. This enhanced motor is meticulously optimized for peak efficiency, pairing effortlessly with a 36-inch propeller and a 24S 150A motor controller to provide accurate handling and effective power allocation. Offering a formidable maximum thrust of 40kg, it supplies substantial strength, making it a prime choice for a variety of heavy lift drone applications.

Tech Specs

Model	12070
Type	Brushless DC motor
KV	80
Suggested ESC	24 S 150 A
Suggested Propeller	36 inch
Max. Thrust	41 kg
Max. Torque	16 N·m
Max. RPM	5400
Li-Po	14 S ~ 24 S
Max. Voltage	79 V
Max. Current	112 A
Max. Power	8.5 kW
Motor Dimension	120 mm * 70mm
Weight	2.4 kg
Application	Multi rotor drone, heavy lift drone, paramotor

Details

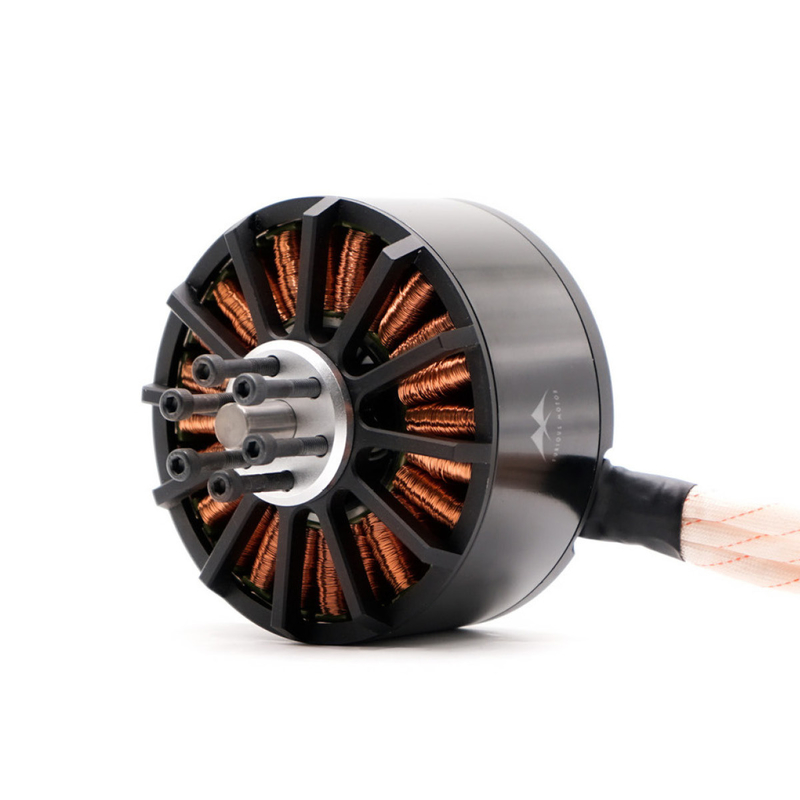

High Thrust 12070 Unmanned Aircraft Motor For Industrial Payload Delivery 0

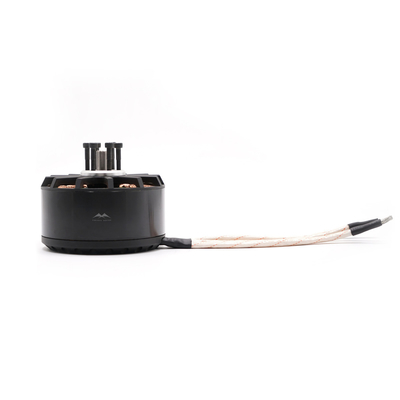

High Thrust 12070 Unmanned Aircraft Motor For Industrial Payload Delivery 1

High-Thrust 12070 Unmanned Aircraft Motor For Industrial Payload Delivery
