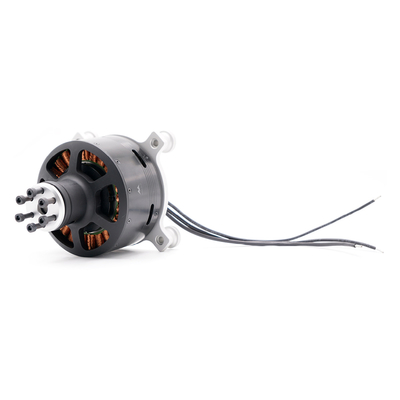

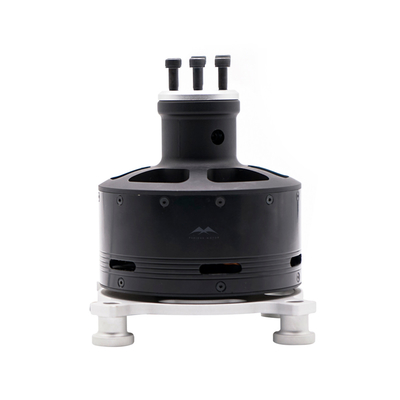

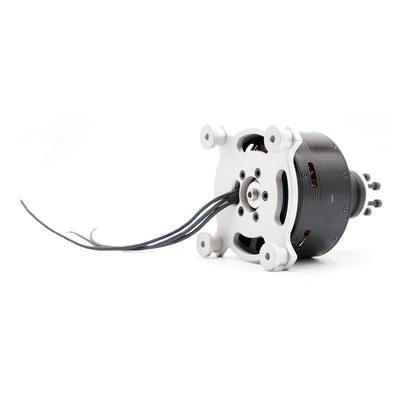

Custom 10850 UAV Motor 48V Low Vibration For Precision Aerial Photography Drone

Brand Name:	Furious Motor
Model Number:	10850
MOQ:	1
Price:	$ 234
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

10850

Dimension:

108 Mm * 50 Mm

Max. Thrust:

25 KG

Max. Torque:

15 N.m

Max. RPM:

Suggested ESC:

75 V 200 A

Suggested Prop:

36 Inch Propeller

Max. Current:

150 A

Max. Voltage:

Max. Power:

7.5 KW

Li - Po:

12 S - 16 S

Hall Sensor:

Optional

Weight:

1.5 KG

Application:

Heavy Lift Drone

Supply Ability:

3000 pcs per month

Highlight:

10850 uav motor

48V uav motor

25KG uav electric motors

Product Description

Intoroduction

The Furious Motor 10850 brushless motor emerges as a standout performer, offering exceptional reliability and power optimized for challenging aerial tasks. Engineered to accommodate a 36-inch propeller and complemented by a 75V 200A ESC, this motor delivers a striking maximum thrust of 25kg, guaranteeing strong and steady power output.

Ideal for multirotor and heavy lift drone operations, the 10850 ensures dependable and effective propulsion across a diverse array of aerial undertakings.

Tech Specs

Model	10850
Type	Brushless DC motor
KV	100
Suggested ESC	75 V 200 A
Suggested Propeller	36 inch propeller
Max. Thrust	25 kg
Max. Torque	15 N·m
Max. RPM	5000
Li-Po	12 S ~ 16 S
Max. Voltage	75 V
Max. Current	150 A
Max. Power	7.5 kW
Motor Dimension	108 mm * 50mm
Weight	1.5 kg
Application	Multi rotor drone, heavy lift drone

Details

Custom 10850 UAV Motor 48V Low Vibration For Precision Aerial Photography Drone 0

Custom 10850 UAV Motor 48V Low Vibration For Precision Aerial Photography Drone 1

Custom 10850 UAV Motor 48V Low Vibration For Precision Aerial Photography Drone 2

Custom 10850 UAV Motor 48V Low Vibration For Precision Aerial Photography Drone 3

Custom 10850 UAV Motor 48V Low Vibration For Precision Aerial Photography Drone 4

Custom 10850 UAV Motor 48V Low Vibration For Precision Aerial Photography Drone 5

Custom 10850 UAV Motor 48V Low-Vibration For Precision Aerial Photography Drone
