75KG Thrust Submersible Brushless Motor For Electric Surfboards And Foils

Brand Name:	Furious Motor
Model Number:	75141
MOQ:	1
Price:	$449
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

75141

Dimension:

75mm * 141mm

Max. Thrust:

Max. Torque:

11.9N.m

Max. RPM:

Suggested ESC:

14S 160A

Suggested Prop:

Max. Current:

Max. Voltage:

Max. Power:

6.8KW

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

Application:

Efoil, Electric Boat.

Supply Ability:

3000 pcs per month

Highlight:

75KG brushless motor

75141 brushless motor

100kv bldc motor

Product Description

Intoroduction

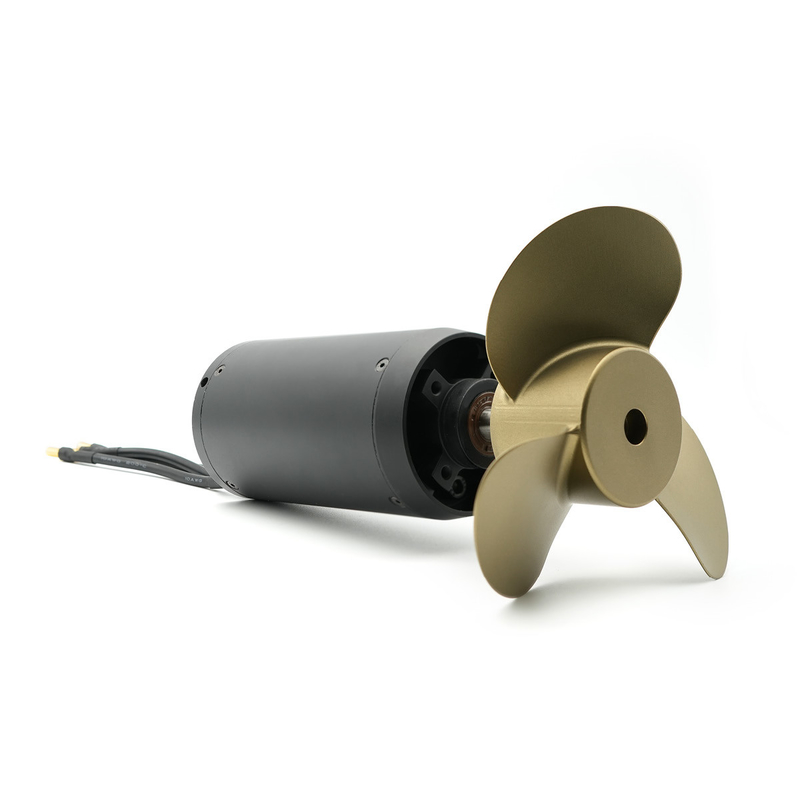

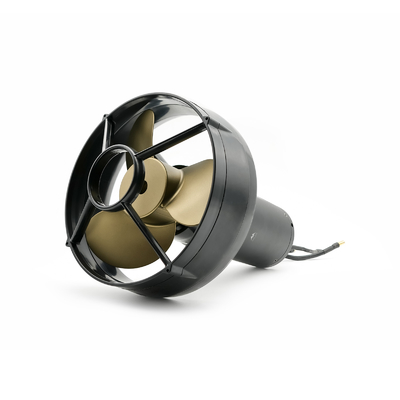

Unleash the potential of your aquatic projects with our 75141 brushless motor propulsion system, a comprehensive solution engineered for maximum power. This system, centered around a high-thrust BLDC motor capable of generating up to 56kg of force, includes the DP-3 propeller, 14S 160A ESC, and DC-2 controller for seamless integration and optimal control.

Whether powering underwater thrusters, e-foils, electric surfboards, or underwater scooters, this system delivers the performance required for thrilling water-based adventures.

Tech Specs

Model	75141
Type	Brushless DC motor
KV	100
Suggested ESC	14 S 160 A
Suggested Propeller	PD-2
Max. Thrust	58 kg
Max. Torque	11.9 N·m
Max. RPM	5500
Li-Po	8 S ~ 14 S
Max. Voltage	57 V
Max. Current	120 A
Max. Power	6.8 kW
Motor Dimension	75 mm * 141 mm
Weight	2 kg
Application	Electric surfboard, efoil, underwater thruster, electric boat

Details

75KG Thrust Submersible Brushless Motor For Electric Surfboards And Foils 0

75KG Thrust Submersible Brushless Motor For Electric Surfboards And Foils 1

75KG Thrust Submersible Brushless Motor For Electric Surfboards And Foils 2

75KG Thrust Submersible Brushless Motor For Electric Surfboards And Foils 3

75KG Thrust Submersible Brushless Motor For Electric Surfboards And Foils 4

75KG Thrust Submersible Brushless Motor For Electric Surfboards And Foils 5

75KG Thrust Submersible Brushless Motor For Electric Surfboards And Foils
