High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors

Brand Name:	Furious Motor
Model Number:	66160
MOQ:	1
Price:	$523
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

66160

Dimension:

66mm * 160mm

Max. Thrust:

Max. Torque:

Max. RPM:

Suggested ESC:

14S 160A

Suggested Prop:

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

12S - 14S

Hall Sensor:

Optional

Weight:

2.3KG

Application:

Efoil, Electric Boat.

Supply Ability:

3000 pcs per month

Highlight:

High Thrust Brushless DC Motor

High Torque Brushless DC Motor

66160 motors brushless dc

Product Description

Intoroduction

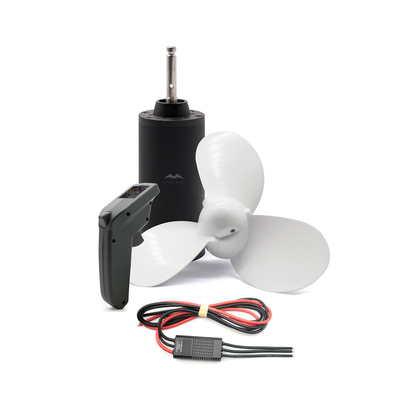

Elevate your aquatic performance with the 66160 propulsion system, a powerful and refined solution designed for a range of watercraft. Achieving an impressive 46kg of thrust, this system is expertly paired with the PD-1 propeller, 14S 160A ESC, and CD-2 wireless controller for smooth and reliable operation.

Ideal for powering underwater thrusters, e-foils, electric surfboards, jet boards, underwater scooters, and electric boats, it delivers the performance required for exceptional aquatic adventures.

Tech Specs

Motor

Model	66-160
Type	Brushless DC motor
KV	160
Suggested ESC	14 S 160 A
Suggested Propeller	PD-1

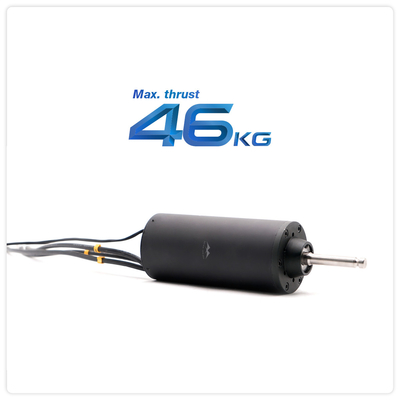

Max. Thrust	46 kg
Max. Torque	7 N·m
Max. RPM	8500
Li-Po	8 S ~ 14 S
Max. Voltage	57 V
Max. Current	140 A
Max. Power	6 kW
Motor Dimension	66 mm * 160 mm
Weight	2.3 kg
Application	Electric surfboard, efoil, underwater thruster, electric boat

ESC

Model	14 S 160 A
Suggested Battery	6 S ~ 14 S (Li-Po)
BEC	5 V 1 A
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	58 V
Max. Current	200 A
Weight	550 g
Dimension	92 mm * 46 mm * 23 mm

Details

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors 0

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors 1

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors 2

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors 3

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors 4

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors 5

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors 6

High-Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors
