70141 High Torque Brushless Motor High Thrust Low Noise For Electric Hydrofoils

Brand Name:	Furious Motor
Model Number:	70141
MOQ:	1
Price:	$313
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

70-141

Dimension:

70mm * 141mm

Max. Thrust:

Max. Torque:

9 N.m

Max. RPM:

Suggested ESC:

14S 160A

Suggested Prop:

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

12S - 14S

Hall Sensor:

Optional

Weight:

1.9KG

Application:

Efoil, Electric Boat.

Supply Ability:

3000 pcs per month

Highlight:

70141 high torque brushless motor

Low Noise high torque brushless motor

Electric Hydrofoils high thrust brushless motor

Product Description

Intoroduction

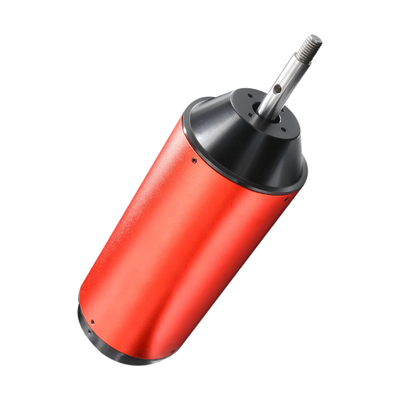

Dive into the thrill of aquatic exploration with our 70141 brushless motor propulsion system, a complete solution engineered for exceptional performance. This system, anchored by a powerful BLDC motor capable of generating up to 50kg of thrust, is seamlessly integrated with the DP-1 propeller, 14S 160A ESC, and DC-2 controller, ensuring precise control and optimal efficiency.

Designed for use in underwater thrusters, e-foils, electric surfboards, and underwater scooters, it provides the power and responsiveness needed for unforgettable water adventures.

Tech Specs

Model	70-141
Type	Brushless DC motor
KV	120
Suggested ESC	14 S 160 A
Suggested Propeller	PD-1
Max. Thrust	52 kg
Max. Torque	9 N·m
Max. RPM	6600
Li-Po	8 S ~ 14 S
Max. Voltage	57 V
Max. Current	78 A
Max. Power	4 kW
Motor Dimension	70 mm * 141 mm
Weight	1.9 kg
Application	Electric surfboard, efoil, underwater thruster, electric boat

Details

70141 High Torque Brushless Motor High Thrust Low Noise For Electric Hydrofoils 0

70141 High-Torque High Thrsut Low Noise Brushless Motor For Electric Hydrofoils
