Efoil Motor

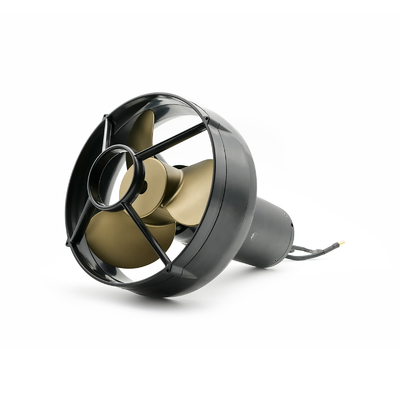

Waterproof 75141 58KG Thrust Propulsion Kit For Efoil Electric Surboard

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

Waterproof 75141 58KG Thrust Propulsion Kit For Efoil Electric Surboard

Brand Name:	Furious Motor
Model Number:	75141
MOQ:	1
Price:	$707
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

75141

Dimension:

75mm * 141mm

Max. Thrust:

Max. Torque:

11.9N.m

Max. RPM:

Suggested ESC:

14S 160A

Suggested Prop:

Max. Current:

Max. Voltage:

Max. Power:

6.8KW

Li - Po:

12S - 14S

Hall Sensor:

Optional

Weight:

Application:

Efoil, Electric Boat.

Supply Ability:

3000 pcs per month

Highlight:

Waterproof e foil motor

75141 e foil motor

58KG fliteboard motor

Product Description

Intoroduction

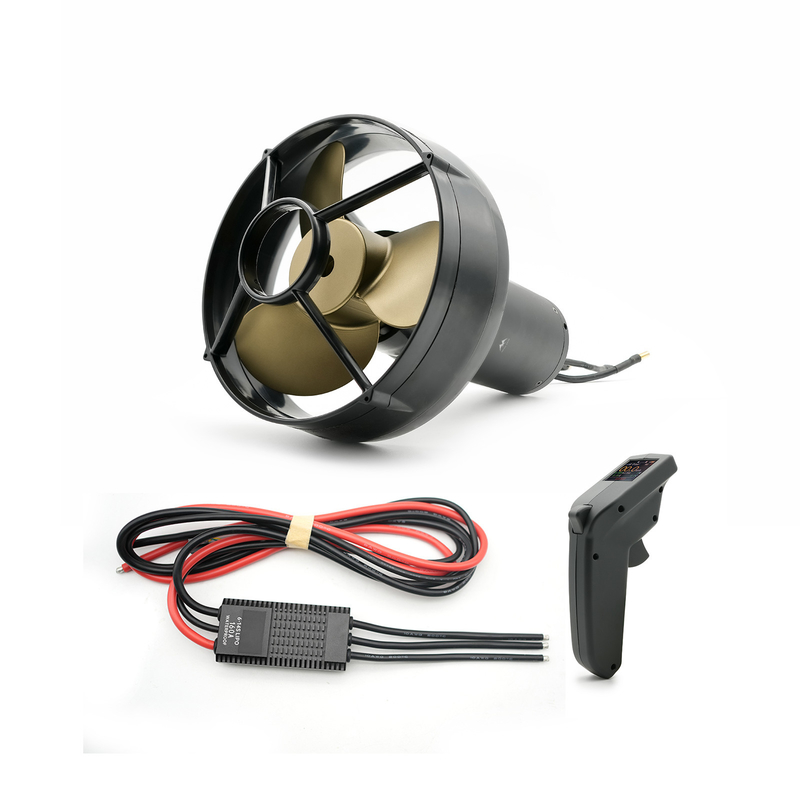

Transform your aquatic pursuits into thrilling adventures with our 75141 brushless motor propulsion system, designed for peak performance in a variety of watercraft. Boasting a robust BLDC motor capable of generating up to 56kg of thrust, this system includes the DP-3 propeller, 14S 160A ESC, and DC-2 controller for precise control and efficient operation.

Ideal for powering underwater thrusters, e-foils, electric surfboards, and underwater scooters, it ensures an unforgettable experience on the water.

Tech Specs

Motor

Model	75141
Type	Brushless DC motor
KV	100
Suggested ESC	14 S 160 A
Suggested Propeller	PD-2
Max. Thrust	58 kg
Max. Torque	11.9 N·m
Max. RPM	5500
Li-Po	8 S ~ 14 S
Max. Voltage	57 V
Max. Current	120 A
Max. Power	6.8 kW
Motor Dimension	75 mm * 141 mm
Weight	2 kg
Application	Electric surfboard, efoil, underwater thruster, electric boat

ESC

Model	14 S 160 A
Suggested Battery	6 S ~ 14 S (Li-Po)
BEC	5 V 1 A
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	58 V
Max. Current	200 A
Weight	550 g
Dimension	92 mm * 46 mm * 23 mm

Details

Waterproof 75141 58KG Thrust Propulsion Kit For Efoil Electric Surboard 0

Waterproof 75141 58KG Thrust Propulsion Kit For Efoil Electric Surboard

Tags:

Products Details

Home > Products >

Efoil Motor

Waterproof 75141 58KG Thrust Propulsion Kit For Efoil Electric Surboard

All Category

Waterproof 75141 58KG Thrust Propulsion Kit For Efoil Electric Surboard

Brand Name:	Furious Motor
Model Number:	75141
MOQ:	1
Price:	$707
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

Furious Motor

Certification:

Model Number:

75141

Model:

75141

Dimension:

75mm * 141mm

KV:

100

Max. Thrust:

58KG

Max. Torque:

11.9N.m

Max. RPM:

5500

Suggested ESC:

14S 160A

Suggested Prop:

PD-1

Max. Current:

120A

Max. Voltage:

55V

Max. Power:

6.8KW

Li - Po:

12S - 14S

Hall Sensor:

Optional

Weight:

2KG

Application:

Efoil, Electric Boat.

Minimum Order Quantity:

Price:

$707

Packaging Details:

Carton witn protection (EPE)

Delivery Time:

5-8 working days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Supply Ability:

3000 pcs per month

Highlight:

Waterproof e foil motor

75141 e foil motor

58KG fliteboard motor

Product Description

Intoroduction

Ideal for powering underwater thrusters, e-foils, electric surfboards, and underwater scooters, it ensures an unforgettable experience on the water.

Tech Specs

Motor

Model	75141
Type	Brushless DC motor
KV	100
Suggested ESC	14 S 160 A
Suggested Propeller	PD-2
Max. Thrust	58 kg
Max. Torque	11.9 N·m
Max. RPM	5500
Li-Po	8 S ~ 14 S
Max. Voltage	57 V
Max. Current	120 A
Max. Power	6.8 kW
Motor Dimension	75 mm * 141 mm
Weight	2 kg
Application	Electric surfboard, efoil, underwater thruster, electric boat

ESC

Model	14 S 160 A
Suggested Battery	6 S ~ 14 S (Li-Po)
BEC	5 V 1 A
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	58 V
Max. Current	200 A
Weight	550 g
Dimension	92 mm * 46 mm * 23 mm

Details

Waterproof 75141 58KG Thrust Propulsion Kit For Efoil Electric Surboard 0

Waterproof 75141 58KG Thrust Propulsion Kit For Efoil Electric Surboard
