Efoil Motor

Waterproof Direct Drive Brushless Motor 66160 With 46kg Thrsut For Silent Efoil Propulsion

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

Waterproof Direct Drive Brushless Motor 66160 With 46kg Thrsut For Silent Efoil Propulsion

Brand Name:	Furious Motor
Model Number:	66160
MOQ:	1
Price:	$240
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

66160

Dimension:

66mm * 160mm

Max. Thrust:

Max. Torque:

Max. RPM:

Suggested ESC:

14S 160A

Suggested Prop:

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

12S - 14S

Hall Sensor:

Optional

Weight:

2.3KG

Application:

Efoil, Electric Boat.

Supply Ability:

3000 pcs per month

Highlight:

66160 Efoil Motor

46kg Efoil Motor

Direct Drive waterproof brushless motor

Product Description

Intoroduction

Dive into the future of aquatic propulsion with our 66160 brushless motor system, a comprehensive solution designed for peak performance. This system, featuring a powerful BLDC motor capable of generating up to 46kg of thrust, is seamlessly integrated with the PD-1 propeller, 14S 160A ESC, and the innovative wireless CD-2 controller for unparalleled freedom and precision.

Engineered for use in underwater thrusters, e-foils, electric surfboards, jet boards, underwater scooters, and electric boats, it delivers the power and efficiency necessary for an extraordinary water experience.

Tech Specs

Model	66-160
Type	Brushless DC motor
KV	160
Suggested ESC	14 S 160 A
Suggested Propeller	PD-1
Max. Thrust	46 kg
Max. Torque	7 N·m
Max. RPM	8500
Li-Po	8 S ~ 14 S
Max. Voltage	57 V
Max. Current	140 A
Max. Power	6 kW
Motor Dimension	66 mm * 160 mm
Weight	2.3 kg
Application	Electric surfboard, efoil, underwater thruster, electric boat

Details

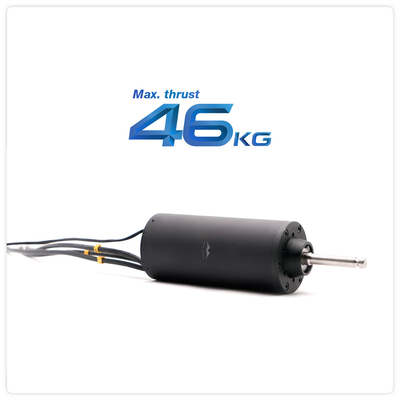

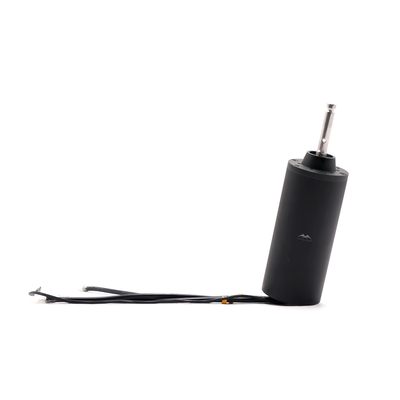

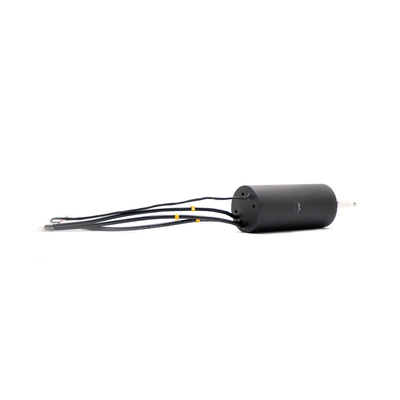

Waterproof Direct Drive Brushless Motor 66160 With 46kg Thrsut For Silent Efoil Propulsion 0

Waterproof Direct Drive Brushless Motor 66160 With 46kg Thrsut For Silent Efoil Propulsion 1

Waterproof Direct Drive Brushless Motor 66160 With 46kg Thrsut For Silent Efoil Propulsion 2

Waterproof Direct Drive Brushless Motor 66160 With 46kg Thrsut For Silent Efoil Propulsion 3

Waterproof Direct Drive Brushless Motor 66160 With 46kg Thrsut For Silent Efoil Propulsion 4

Waterproof Direct Drive Brushless Motor 66160 With 46kg Thrsut For Silent Efoil Propulsion
