15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights

Brand Name:	Furious Motor
Model Number:	15470
MOQ:	1
Price:	$1637
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

15470

Dimension:

154 Mm * 70 Mm

Max. Thrust:

51 Kg

Max. Torque:

25 N.m

Max. RPM:

Suggested ESC:

24 S 200 A

Suggested Prop:

42 Inch Propeller

Max. Current:

122 A

Max. Voltage:

Max. Power:

11.5 KW

Li - Po:

14 S - 24 S

Hall Sensor:

Optional

Weight:

3.4 Kg

Application:

Multi Rotor Drone, Paraglider

Supply Ability:

3000 pcs per month

Highlight:

15470 Paramotor

High Thrsut Paramotor

50kv power paramotor

Product Description

Intoroduction

The Furious Motor 15470 brushless motor is meticulously developed to power an array of aerial systems, including large drones, UAVs, paramotors, and paragliders. Crafted for outstanding performance, this motor integrates seamlessly with a 42-inch propeller and a 24S 200A motor controller, delivering optimized power allocation and pinpoint accuracy.

With the ability to produce up to 51kg of thrust, it excels in heavy-duty scenarios, blending robust strength with improved stability to offer a dependable choice for the most challenging aerial missions.

Tech Specs

System

Max. Thrsut	51 kg / rotor
Takeoff Weight	20 kg - 25 kg / rotor
Suggested ESC	24 S 200 A
Suggested Propeller	42 inch 2-blade propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	4.3 kg
Application	Multi rotor drone, heavy lift drone, paramotor

Motor

Model	154-70
KV	50
Max. Thrsut	51 kg
Max. Torque	25 N·m
Max. RPM	3762
Dimension	154 mm * 70 mm
Weight	3.4 kg

ESC

Model	24 S 200 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Input Current	240 A
Weight	595 g
Dimension	140mm * 66mm * 34mm

Propeller

Model	42 inch 2-blade
Diameter	42 inch
Material	Carbon fiber
Weight	300 g

Details

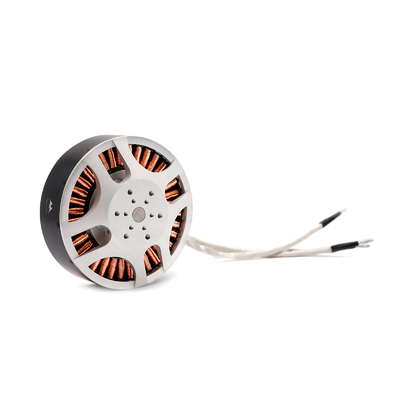

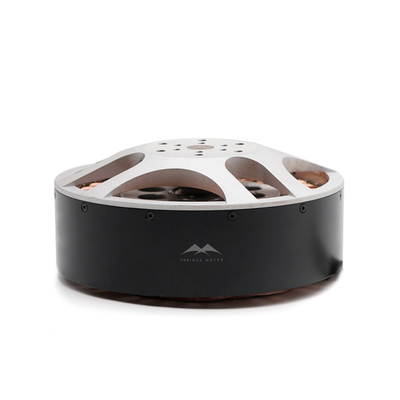

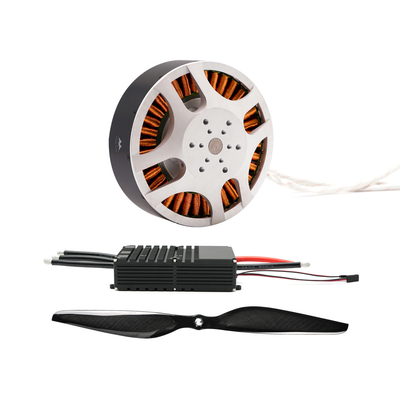

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights 0

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights 1

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights 2

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights 3

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights 4

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights 5

Durable 15470 Paramotor Motor With High Thrsut For Long-Endurance Paragliding Flights
