Multi Rotor Drone Motor

High Thrust Brushless DC Motor 238100 For Multirotor Drone Propulsion System With 100V ESC 63 Inch Propeller

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

High Thrust Brushless DC Motor 238100 For Multirotor Drone Propulsion System With 100V ESC 63 Inch Propeller

Brand Name:	Furious Motor
Model Number:	238100
MOQ:	1
Price:	$3316
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

238100

Dimension:

238mm * 100mm

Max. Thrust:

116KG

Max. Torque:

79N.m

Max. RPM:

Suggested ESC:

24S 300A

Suggested Prop:

63 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

7.8KG

Application:

Drone

Supply Ability:

3000 pcs per month

Highlight:

High Thrust Brushless DC Motor

238100 Brushless DC Motor

100V ESC 238100

Product Description

Intoroduction

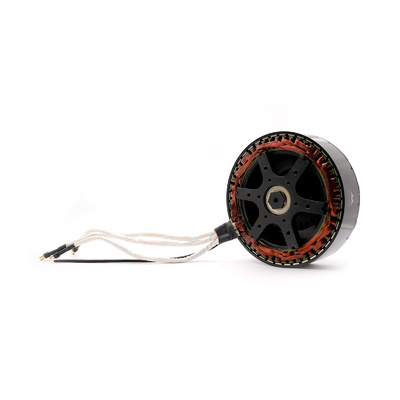

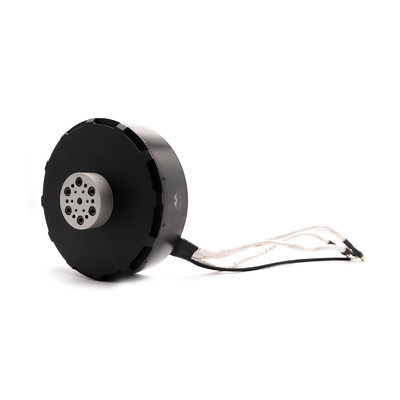

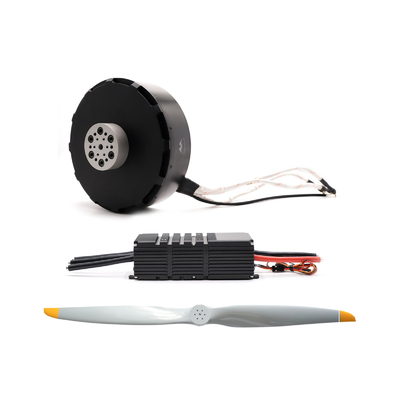

The Furious Motor 238100 brushless motor stands as a dynamic and high-efficiency brushless DC motor, meticulously developed to enhance drone propulsion systems. Expertly crafted for flawless integration with a 63-inch propeller and a 24S 300A ESC, this motor delivers exceptional performance with precision.

Offering an impressive maximum thrust of up to 116kg, it excels across various applications, such as unmanned aircraft, heavy lift drones, and multirotor configurations, making it a reliable powerhouse for diverse aerial operations.

Tech Specs

System

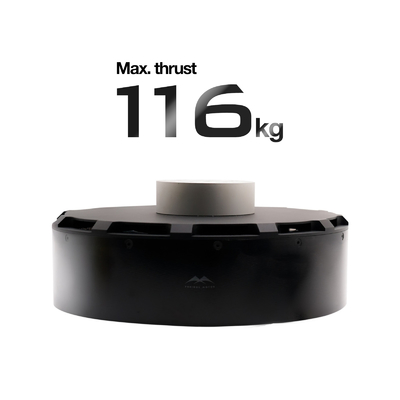

Max. Thrsut	116 kg / rotor
Takeoff Weight	40 kg - 55 kg / rotor
Suggested ESC	24 S 300 A
Suggested Propeller	63 inch propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	9.4 kg
Application	Multi rotor drone, heavy lift drone

Motor

Model	238-100
KV	35
Max. Thrsut	116 kg
Max. Torque	79 N·m
Max. RPM	2881
Dimension	238 mm * 100 mm
Weight	7.8 kg

ESC

Model	24 S 300 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Input Current	240 A
Weight	812 g
Dimension	140.5 mm * 66.6 mm * 47.1 mm

Propeller

Model	63 inch 2-blade
Diameter	63 inch
Material	Carbon fiber
Weight	820 g

Details

High Thrust Brushless DC Motor 238100 For Multirotor Drone Propulsion System With 100V ESC 63 Inch Propeller 0

High Thrust Brushless DC Motor 238100 For Multirotor Drone Propulsion System With 100V ESC 63 Inch Propeller 1

High Thrust Brushless DC Motor 238100 For Multirotor Drone Propulsion System With 100V ESC 63 Inch Propeller 2

High Thrust Brushless DC Motor 238100 For Multirotor Drone Propulsion System With 100V ESC 63 Inch Propeller 3

High Thrust Brushless DC Motor 238100 For Multirotor Drone Propulsion System With 100V ESC 63 Inch Propeller 4

High Thrust Brushless DC Motor 238100 For Multirotor Drone Propulsion System With 100V ESC 63 Inch Propeller 5

High Thrust Brushless DC Motor 238100 For Multirotor Drone Propulsion System With 100V ESC 63 Inch Propeller 6

High-Thrust Brushless DC Motor 238100 for Multirotor Drone Propulsion System with 100V ESC and 63 Inch Propeller
