Lightweight Brushless DC Motors 120100 For Multirotor Drone 100V With 45'' Propeller And ESC

Brand Name:	Furious Motor
Model Number:	120100
MOQ:	1
Price:	$1471
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

120100

Dimension:

120mm * 100mm

Max. Thrust:

Max. Torque:

33N.m

Max. RPM:

Suggested ESC:

24S 200A

Suggested Prop:

45 Inch

Max. Current:

Max. Voltage:

Max. Power:

12.3KW

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

4.84KG

Application:

Drone, Paramotor

Supply Ability:

3000 pcs per month

Highlight:

Lightweight brushless dc motors

120100 brushless dc motors

100V 120100 motor

Product Description

Intoroduction

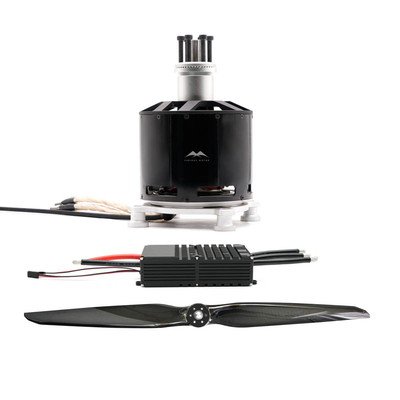

The 120100 brushless motor is meticulously crafted to propel a diverse array of aerial platforms, including large drones, UAVs, paramotors, paragliders, multirotor systems, and unmanned aircraft. Expertly designed for top-notch performance, this motor integrates smoothly with a 45-inch propeller and a 24S 200A motor controller, providing accurate control and efficient power allocation.

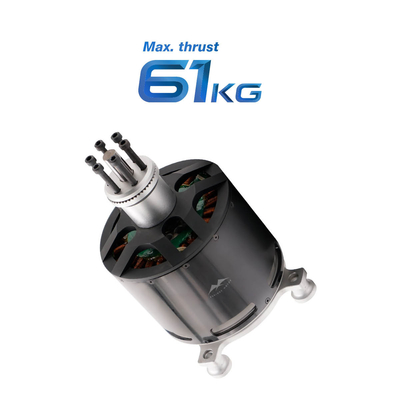

With an impressive maximum thrust of 61kg, it has cemented its status as a leading choice for significant drone applications. Transform your aerial adventures with enhanced stability, as the 120100 Brushless Motor establishes new benchmarks for reliability and precision in propulsion technology.

Tech Specs

System

Max. Thrsut	61 kg / rotor
Takeoff Weight	20 kg - 30 kg / rotor
Suggested ESC	24 S 200 A
Suggested Propeller	45 inch propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	4.84 kg
Application	Paramotor, paraglider

Motor

Model	120-100
KV	50
Max. Thrsut	61 kg
Max. Torque	33 N·m
Max. RPM	3648
Dimension	120 mm * 100 mm
Weight	3.9 kg

ESC

Model	24 S 200 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Current	240 A
Weight	595 g
Dimension	140.5 mm * 66.6 mm * 34.4 mm

Propeller

Model	45 inch
Diameter	45 inch
Material	Carbon fiber
Weight	0.35 kg

Details

Lightweight Brushless DC Motors 120100 For Multirotor Drone 100V With 45'' Propeller And ESC 0

Lightweight Brushless DC Motor 120100 For Multirotor Drone 100V With 45-Inch Propeller And ESC
