Custom Multirotor Drone Propulsion System 154120 Motor With 47'' Propeller Motor Controller

Brand Name:	Furious Motor
Model Number:	154120
MOQ:	1
Price:	$2133
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

154120

Dimension:

154mm * 120mm

Max. Thrust:

Max. Torque:

47N.m

Max. RPM:

Suggested ESC:

24S 300A

Suggested Prop:

47 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

5.9KG

Application:

Drone, Paramotor

Supply Ability:

3000 pcs per month

Highlight:

Custom drone propulsion system

Multirotor drone propulsion system

80KG 154120 motor

Product Description

Intoroduction

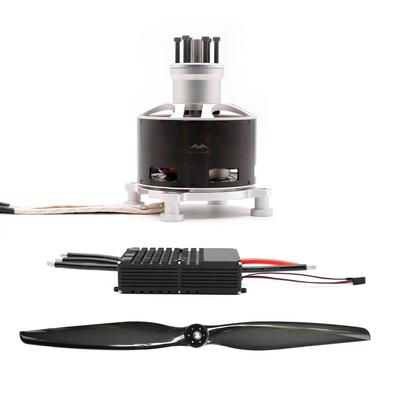

The 154120 brushless motor is expertly designed to empower a wide range of aerial systems, including large drones, UAVs, paramotors, paragliders, multirotor drones, and unmanned aircraft. Meticulously crafted for superior performance, this motor pairs effortlessly with a 47-inch propeller and a 24S 300A motor controller, delivering precise handling and efficient energy management.

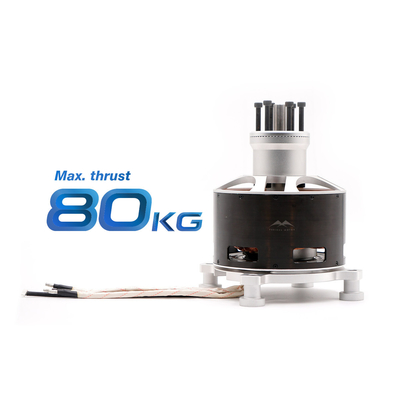

With a formidable maximum thrust of 80kg, it has earned its place as a top-selling choice for demanding drone applications. Enhance your aerial missions with improved stability, as the 154120 Brushless Motor sets a new benchmark for dependability and accuracy in propulsion technology.

Tech Specs

System

Max. Thrsut	80 kg / rotor
Takeoff Weight	30 kg - 40 kg / rotor
Suggested ESC	24 S 300 A
Suggested Propeller	47 inch 2-blade propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	7.7 kg
Application	Multi rotor drone, heavy lift drone, paramotor

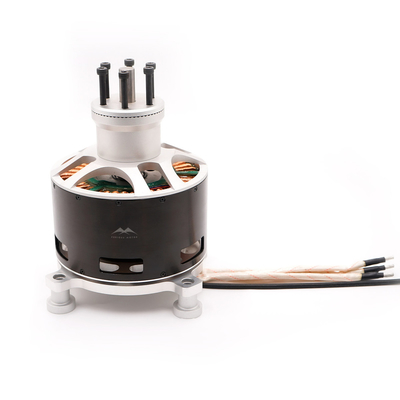

Motor

Model	154-120
KV	55
Max. Thrsut	80 kg
Max. Torque	47 N·m
Max. RPM	3642
Dimension	154 mm * 120 mm
Weight	5.9 kg

ESC

Model	24 S 300 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Input Current	300 A
Weight	812 g
Dimension	140.5 mm * 66.6 mm * 47.1 mm

Propeller

Model	47 inch 2-blade
Diameter	47 inch
Material	Carbon fiber
Weight	450 g

Details

Custom Multirotor Drone Propulsion System 154120 Motor With 47'' Propeller Motor Controller 0

Custom Multirotor Drone Propulsion System 154120 Motor With 47'' Propeller Motor Controller 1

Custom Multirotor Drone Propulsion System 154120 Motor With 47'' Propeller Motor Controller 2

Custom Multirotor Drone Propulsion System 154120 Motor With 47'' Propeller Motor Controller 3

Custom Multirotor Drone Propulsion System 154120 Motor With 47'' Propeller Motor Controller 4

Custom Multirotor Drone Propulsion System 154120 Motor With 47'' Propeller Motor Controller 5

Custom Multirotor Drone Propulsion System 154120 Motor With 47-Inch Propeller And Motor Controller
