Multirotor Drone Propulsion Motor 23850 With 55 Inch Propeller And High Efficiency ESC

Brand Name:	Furious Motor
Model Number:	23850
MOQ:	1
Price:	$2735
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

23850

Dimension:

238mm * 50mm

Max. Thrust:

Max. Torque:

80N.m

Max. RPM:

Suggested ESC:

24S 300A

Suggested Prop:

55 Tri-blade Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

6.3KG

Application:

Drone, Paramotor

Supply Ability:

3000 pcs per month

Highlight:

Multirotor Drone propulsion motor

23850 propulsion motor

55 Inch electric propulsion motor

Product Description

Intoroduction

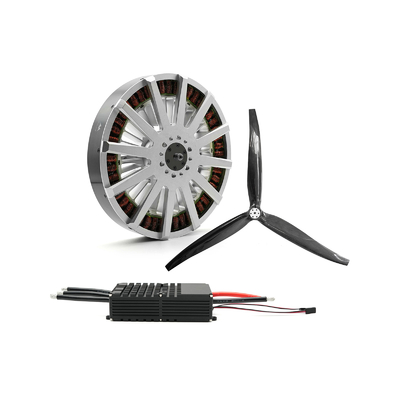

Presenting the 23850 Propulsion System, a top-tier solution crafted for exceptional aerial performance. Central to this system is the 23850 BLDC motor, seamlessly integrated with a 24S 300A ESC and a 55-inch propeller, unleashing an impressive maximum thrust of 98kg.

Designed to tackle the needs of diverse applications such as multirotor drones (quadcopters, hexacopters, octocopters), paramotors, and paragliders, this system delivers whether you require robust lifting power, prolonged flight duration, or consistent, dependable operation, making the 23850 Propulsion System your ideal partner for soaring to new heights.

Tech Specs

System

Max. Thrsut	98 kg / rotor
Takeoff Weight	39 kg - 49 kg / rotor
Suggested ESC	24 S 300 A
Suggested Propeller	55 inch 3-blade propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	6.5 kg
Application	Multi rotor drone, heavy lift drone, paramotor

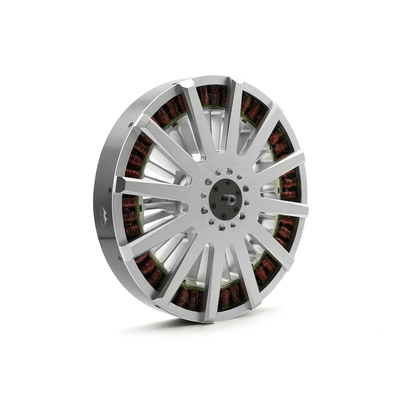

Motor

Model	238-50
KV	35

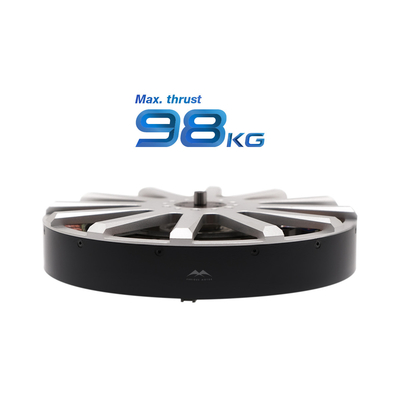

Max. Thrsut	98 kg
Max. Torque	80 N·m
Max. RPM	2420
Dimension	238 mm * 50 mm
Weight	4.5 kg

ESC

Model	24 S 300 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Input Current	240 A
Weight	595 g
Dimension	140.5 mm * 66.6 mm * 47.1 mm

Propeller

Model	55 inch 3-blade
Diameter	55 inch
Material	Carbon fiber
Weight	1.2 kg

Details

Multirotor Drone Propulsion Motor 23850 With 55 Inch Propeller And High Efficiency ESC 0

Powerful Multirotor Drone Propulsion Motor 23850 With 55-Inch Propeller And High-Efficiency ESC
