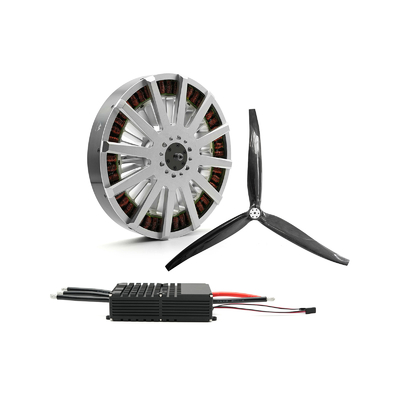

23850 98KG Thrust Propulsion System With Motor And 24S 300A ESC And 55 Inch Propeller
  • name
  • name
  • name
  • name

23850 98KG Thrust Propulsion System With Motor And 24S 300A ESC And 55 Inch Propeller

Brand Name: Furious Motor
Model Number: 23850
MOQ: 1
Price: $2735
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
23850
Dimension:
238mm * 50mm
KV:
35
Max. Thrust:
98KG
Max. Torque:
80N.m
Max. RPM:
2420
Suggested ESC:
24S 300A
Suggested Prop:
55 Tri-blade Propeller
Max. Current:
280A
Max. Voltage:
90V
Max. Power:
20KW
Li - Po:
14S - 24S
Hall Sensor:
Optional
Weight:
6.3KG
Application:
Drone, Paramotor
Supply Ability:
3000 pcs per month
Highlight:

98KG Drone Propulsion System

,

23850 Drone Propulsion System

,

300A ESC uav propulsion

Product Description

Intoroduction



Introducing the 23850 Propulsion System, a high-performance solution designed for unmatched aerial capability. At its heart is the 23850 BLDC motor, expertly paired with a 24S 300A ESC and a 55-inch propeller, delivering a staggering maximum thrust of 98kg.



This system is engineered to meet the demands of various applications, including multi-rotor drones (quadcopters, hexcopters, octocopters), paramotors, and paragliders. Whether you’re aiming for heavy-lift capability, extended flight time, or smooth, reliable performance, the 23850 Propulsion System is built to elevate your aerial adventures.





Tech Specs



System

Max. Thrsut 98 kg / rotor
Takeoff Weight 39 kg - 49 kg / rotor
Suggested ESC 24 S 300 A
Suggested Propeller 55 inch 3-blade propeller
Suggested Battery 12 S - 24 S
Working Temperature -20 °C ~ 50 °C
Total Weight 6.5 kg
Application Multi rotor drone, heavy lift drone, paramotor

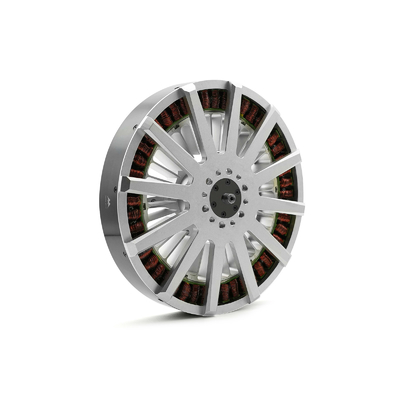

Motor

Model 238-50
KV 35
Max. Thrsut 98 kg
Max. Torque 80 N·m
Max. RPM 2420
Dimension 238 mm * 50 mm
Weight 4.5 kg

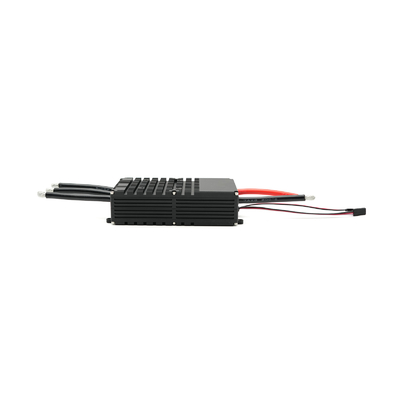

ESC

Model 24 S 300 A
Suggested Battery 12 S ~ 24 S (Li-Po)
PMW Signal 3.3 V / 5 V
Pulse Width 900 us ~ 2000 us
Signal Frequency 50 Hz ~ 400 Hz
Max. Input Voltage DC 50 V ~ 100 V
Max. Input Current 240 A
Weight 595 g
Dimension 140.5 mm * 66.6 mm * 47.1 mm

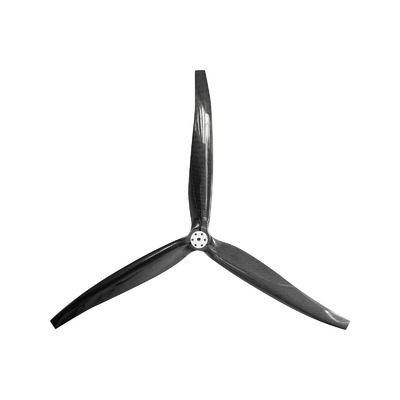

Propeller

Model 55 inch 3-blade
Diameter 55 inch
Material Carbon fiber
Weight 1.2 kg





Details

23850 98KG Thrust Propulsion System With Motor And 24S 300A ESC And 55 Inch Propeller 023850 98KG Thrust Propulsion System With Motor And 24S 300A ESC And 55 Inch Propeller 123850 98KG Thrust Propulsion System With Motor And 24S 300A ESC And 55 Inch Propeller 223850 98KG Thrust Propulsion System With Motor And 24S 300A ESC And 55 Inch Propeller 323850 98KG Thrust Propulsion System With Motor And 24S 300A ESC And 55 Inch Propeller 423850 98KG Thrust Propulsion System With Motor And 24S 300A ESC And 55 Inch Propeller 523850 98KG Thrust Propulsion System With Motor And 24S 300A ESC And 55 Inch Propeller 6









23850 98KG Thrust Propulsion System With Motor And 24S 300A ESC And 55 Inch Propeller For Drone And Paramotor
