Drone Propulsion System

220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller Propeller

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller Propeller

Brand Name:	Furious Motor
Model Number:	240150
MOQ:	1
Price:	$ 7356
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

240150

Dimension:

240 Mm * 150 Mm

Max. Thrust:

220 KG

Max. Torque:

234 N.m

Max. RPM:

Suggested ESC:

400 V 160 A

Suggested Prop:

78 Inch Propeller

Max. Current:

153 A

Max. Voltage:

400 V

Max. Power:

59 KW

Li - Po:

48 S - 96 S

Hall Sensor:

Optional

Weight:

16 KG

Application:

Heavy Lift Drone

Supply Ability:

3000 pcs per month

Highlight:

220KG Drone Propulsion System

240150 Drone Propulsion System

400V uav electric propulsion

Product Description

Introduction

Introducing the pinnacle of power from Furious Motor — the 240150 brushless motor, delivering an extraordinary 220kg of thrust. Purpose-built for mega drones, heavy-lift platforms, and unmanned aircraft, this powerhouse is engineered to handle the most demanding aerial challenges with ease.

Seamlessly paired with a 400V 160A ESC and a 78-inch propeller, the 240150 motor offers unmatched efficiency, stability, and precise control. Whether you’re lifting massive payloads or pushing the limits of flight performance, this motor redefines what’s possible in the sky.

Tech Specs

Model	240150
Type	Brushless DC motor
KV	10
Suggested ESC	400 V 160 A
Suggested Propeller	78 inch propeller
Max. Thrust	220 kg
Max. Torque	234 N·m
Max. RPM	2335
Li-Po	48 S ~ 96 S
Max. Voltage	400 V
Max. Current	153 A
Max. Power	59 kW
Motor Dimension	240 mm * 150mm
Weight	16 kg
Application	Multi rotor drone, heavy lift drone

Details

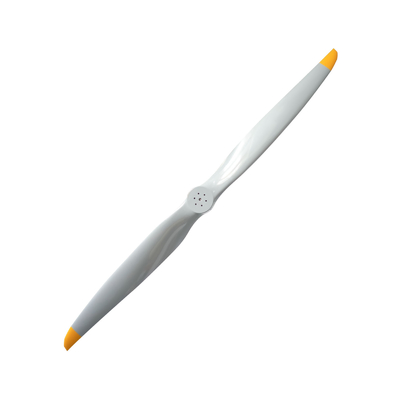

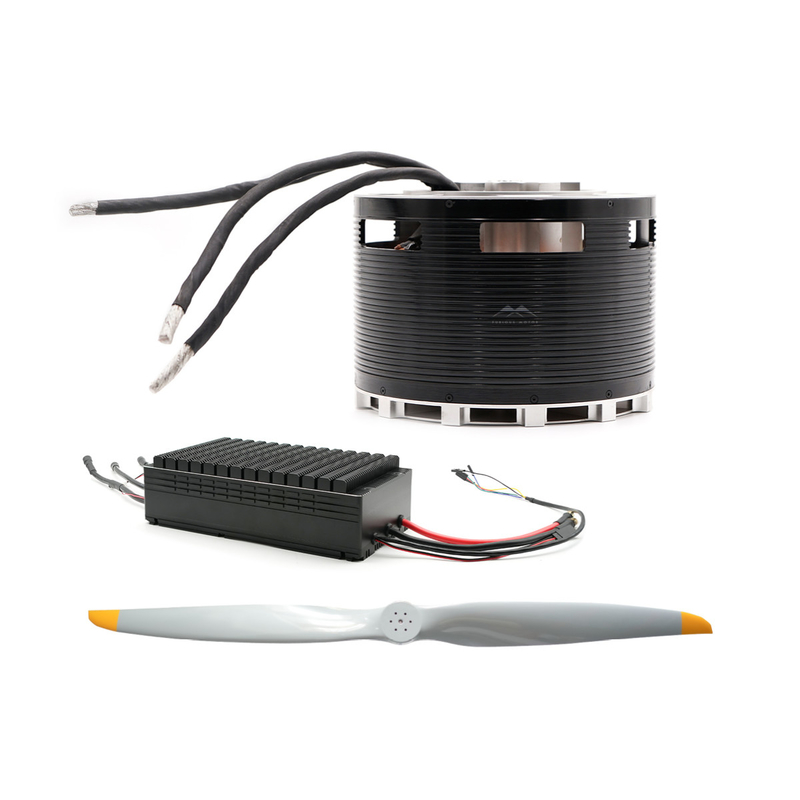

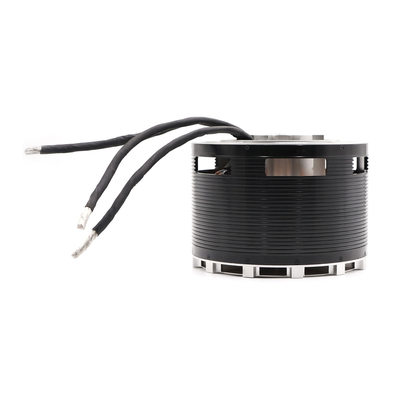

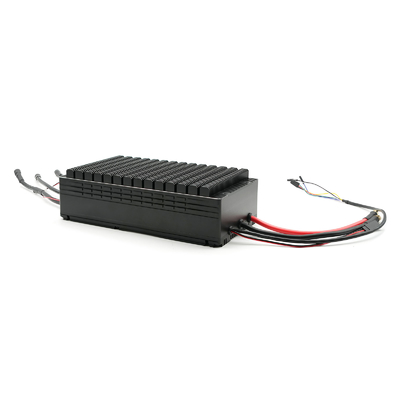

220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller Propeller 0

220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller Propeller 1

220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller Propeller 2

220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller Propeller 3

220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller Propeller 4

220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller Propeller 5

220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller Propeller 6

220KG Thrust Proppulsion System Including 240150 BLDC Motor 400V 160A Motor Controller And Propeller For Drone
