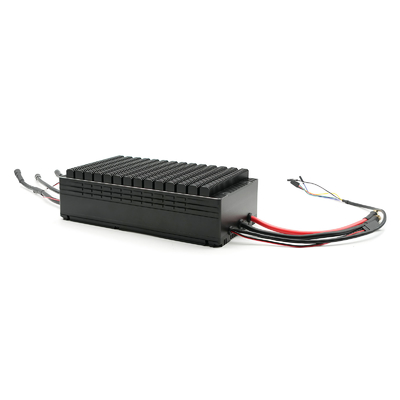

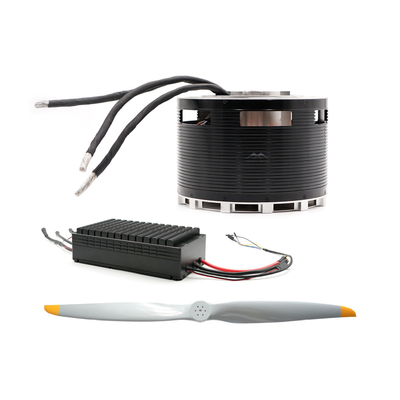

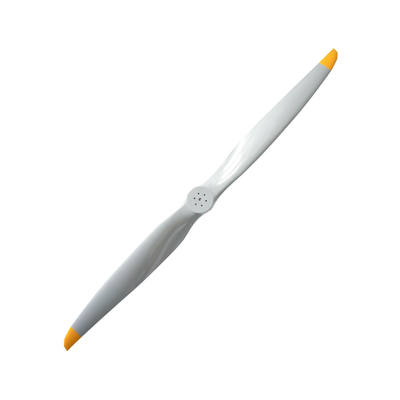

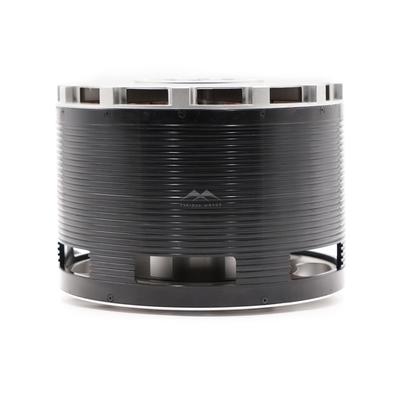

155KG Drone Propulsion System Including 202150 BLDC Motor 400V 160A ESC And 63 Inch Propeller

Brand Name:	Furious Motor
Model Number:	202150
MOQ:	1
Price:	$ 5585
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

202150

Dimension:

202 Mm * 15 0mm

Max. Thrust:

155 KG

Max. Torque:

120 N.m

Max. RPM:

Suggested ESC:

400 V 160 A

Suggested Prop:

63 Inch Propeller

Max. Current:

110 A

Max. Voltage:

400 V

Max. Power:

40 KW

Li - Po:

48 S - 96 S

Hall Sensor:

Optional

Weight:

11.8 KG

Application:

Heavy Lift Drone

Supply Ability:

3000 pcs per month

Highlight:

155KG Drone Propulsion System

400V Drone Propulsion System

160A drone propulsion

Product Description

Intoroduction

Introducing Furious Motor's 155KG propulsion sysem, featuring staggering 155kg thrust, making it one of our most potents release yet. Tailored for mega drones, heavy lift drones, and unmanned aircraft, its robust design ensures unmatched performance. Paired seamlessly with a 400V 160A ESC and a 63-inch propeller,it delivers unrivaled efficiency and control. From lifting heavy payloads to conquering theskies with ease, this motor redefines aerialcapabilities.

Tech Specs

Model	202150
Type	Brushless DC motor
KV	10
Suggested ESC	400 V 160 A
Suggested Propeller	63 inch propeller
Max. Thrust	155 kg
Max. Torque	120 N·m
Max. RPM	3500
Li-Po	48 S ~ 96 S
Max. Voltage	400 V
Max. Current	110 A
Max. Power	40 kW
Motor Dimension	202 mm * 150mm
Weight	11.8 kg
Application	Multi rotor drone, heavy lift drone

Details

155KG Drone Propulsion System Including 202150 BLDC Motor 400V 160A ESC And 63 Inch Propeller 0

155KG Drone Propulsion System Including 202150 BLDC Motor 400V 160A ESC And 63 Inch Propeller 1

155KG Drone Propulsion System Including 202150 BLDC Motor 400V 160A ESC And 63 Inch Propeller 2

155KG Drone Propulsion System Including 202150 BLDC Motor 400V 160A ESC And 63 Inch Propeller 3

155KG Drone Propulsion System Including 202150 BLDC Motor 400V 160A ESC And 63 Inch Propeller 4

155KG Drone Propulsion System Including 202150 BLDC Motor 400V 160A ESC And 63 Inch Propeller 5

155KG Drone Propulsion System Including 202150 BLDC Motor 400V 160A ESC And 63 Inch Propeller 6

155KG Thrust Propulstion System Including 202150 BLDC Motor And 400V 160A ESC And 63 Inch Propeller
