240110 180KG Thrust Propulsion Drone Brushless Motor 400V 160A ESC 72'' Propeller

Brand Name:	Furious Motor
Model Number:	240110
MOQ:	1
Price:	$ 5863
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

240110

Dimension:

240 Mm * 110 Mm

Max. Thrust:

180 KG

Max. Torque:

173 N.m

Max. RPM:

Suggested ESC:

400 V 160 A

Suggested Prop:

72 Inch Propeller

Max. Current:

127 A

Max. Voltage:

400 V

Max. Power:

42 KW

Li - Po:

48 S - 96 S

Hall Sensor:

Optional

Weight:

12.8 KG

Application:

Heavy Lift Drone

Supply Ability:

3000 pcs per month

Highlight:

180KG propulsion drone

240110 propulsion drone

400V uav propulsion

Product Description

Introduction

Boasting an impressive 180kg thrust, 240110 stands as one of our most potent innovations yet. Designed for heavy lift drones, quadcopters, hexacopters, and unmanned aircraft, it seamlessly paired witha 400V 160A ESC and a 72-inch propeller, it ensures optimal efficiency and control for any mission.

From lifting heavy payloads to executing precise maneuvers, this propulsion system elevates your drone operations with the unmatched power and reliability.

Tech Specs

Model	240110
Type	Brushless DC motor
KV	10
Suggested ESC	400 V 160 A
Suggested Propeller	72 inch propeller
Max. Thrust	180 kg
Max. Torque	173 N·m
Max. RPM	257
Li-Po	48 S ~ 96 S
Max. Voltage	400 V
Max. Current	127 A
Max. Power	42 kW
Motor Dimension	202 mm * 150mm
Weight	12.8 kg
Application	Multi rotor drone, heavy lift drone

Details

240110 180KG Thrust Propulsion Drone Brushless Motor 400V 160A ESC 72'' Propeller 0

240110 180KG Thrust Propulsion Drone Brushless Motor 400V 160A ESC 72'' Propeller 1

240110 180KG Thrust Propulsion Drone Brushless Motor 400V 160A ESC 72'' Propeller 2

240110 180KG Thrust Propulsion Drone Brushless Motor 400V 160A ESC 72'' Propeller 3

240110 180KG Thrust Propulsion Drone Brushless Motor 400V 160A ESC 72'' Propeller 4

240110 180KG Thrust Propulsion Drone Brushless Motor 400V 160A ESC 72'' Propeller 5

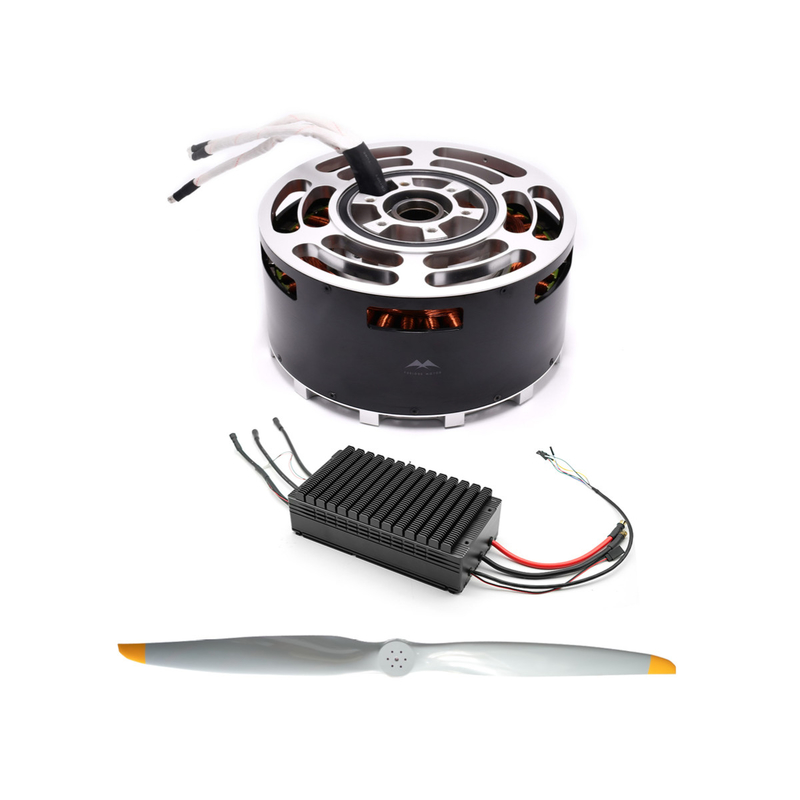

240110 180KG Thrust Propulsion System Including 240110 Brushless Motor 400V 160A ESC And 72 Inch Propeller
