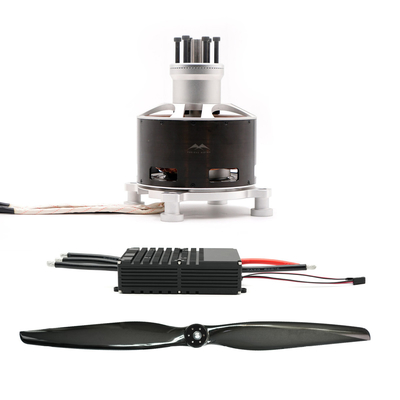

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor

Brand Name:	Furious Motor
Model Number:	154120
MOQ:	1
Price:	$2133
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

154120

Dimension:

154mm * 120mm

Max. Thrust:

Max. Torque:

47N.m

Max. RPM:

Suggested ESC:

24S 300A

Suggested Prop:

47 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

5.9KG

Application:

Drone, Paramotor

Supply Ability:

3000 pcs per month

Highlight:

80KG uav propulsion

154120 uav propulsion

Paramotor uav electric propulsion

Product Description

Introduction

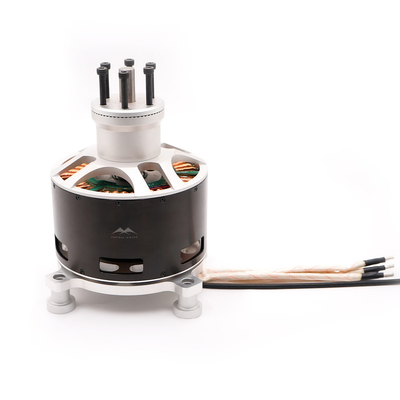

The 154120 brushless motor is tailored for big drones, UAVs, paramotors, paragliders, multi-rotor drones, and unmanned aircraft. Precision engineered for enhanced performance, this motor seamlessly integrates with a 47-inchpropeller and a 24S 300A motor controller ensuring seamless control and optimal power distribution. Boasting a maximum thrust of 80kg, it has solidified its position as one of our best sellers for substantial drone applications. Elevate your aerial pursuits with upgraded stability, as the 154120 Brushless Motor redefines standards for reliability and precision.

Tech Specs

System

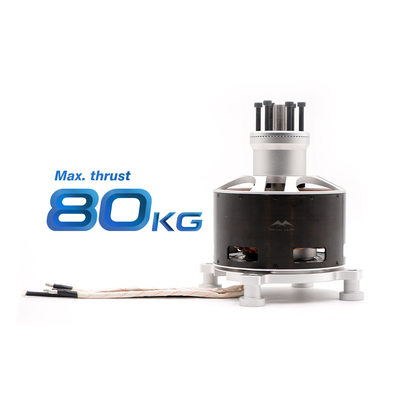

Max. Thrsut	80 kg / rotor
Takeoff Weight	30 kg - 40 kg / rotor
Suggested ESC	24 S 300 A
Suggested Propeller	47 inch 2-blade propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	7.7 kg
Application	Multi rotor drone, heavy lift drone, paramotor

Motor

Model	154-120
KV	55
Max. Thrsut	80 kg
Max. Torque	47 N·m
Max. RPM	3642
Dimension	154 mm * 120 mm
Weight	5.9 kg

ESC

Model	24 S 300 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Input Current	300 A
Weight	812 g
Dimension	140.5 mm * 66.6 mm * 47.1 mm

Propeller

Model	47 inch 2-blade
Diameter	47 inch
Material	Carbon fiber
Weight	450 g

Details

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor 0

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor 1

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor 2

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor 3

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor 4

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor 5

80KG Thrust Propulsion System with 154120 Brushless Motor and 24S 300A ESC and 47 Inch Propeller for Heavy Lift Drone and Paramotor
