120100 61KG UAV Propulsion System With Motor And 24S 200A ESC 45'' Propeller For Heavy Lift Drone
  • name
  • name
  • name
  • name

120100 61KG UAV Propulsion System With Motor And 24S 200A ESC 45'' Propeller For Heavy Lift Drone

Brand Name: Furious Motor
Model Number: 120100
MOQ: 1
Price: $1471
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
120100
Dimension:
120mm * 100mm
KV:
50
Max. Thrust:
61KG
Max. Torque:
33N.m
Max. RPM:
3468
Suggested ESC:
24S 200A
Suggested Prop:
45 Inch
Max. Current:
165A
Max. Voltage:
94V
Max. Power:
12.3KW
Li - Po:
14S - 24S
Hall Sensor:
Optional
Weight:
4.84KG
Application:
Drone, Paramotor
Supply Ability:
3000 pcs per month
Highlight:

61KG uav propulsion system

,

120100 uav propulsion system

,

200A ESC drone propulsion

Product Description

Intoroduction

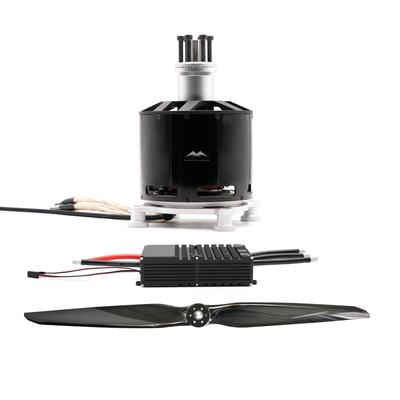

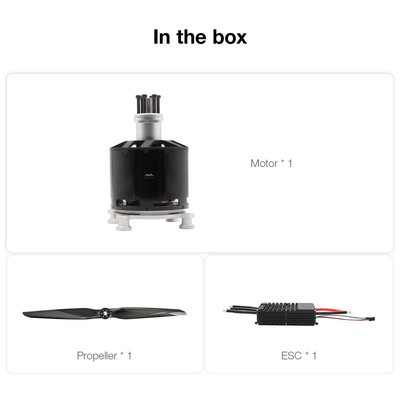

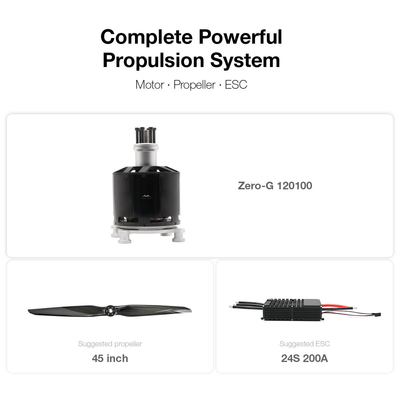

The 120100 brushless motor is tailored for bigdrones, UAVs, paramotors, paragliders, multi rotor drones, and unmanned aircraft. Precision-engineered for enhanced performance, this motor seamlessly integrates with a 45-inchpropeller and a 24S 200A motor controller, ensuring seamless control and optimal power distribution.



Boasting a maximum thrust of 61kg, it has solidified its position as one of ourbest sellers for substantial drone applications. Elevate your aerial pursuits with upgraded stability, as the 120100 Brushless Motor redefines standards for reliability and precision.



Tech Specs



System

Max. Thrsut 61 kg / rotor
Takeoff Weight 20 kg - 30 kg / rotor
Suggested ESC 24 S 200 A
Suggested Propeller 45 inch propeller
Suggested Battery 12 S - 24 S
Working Temperature -20 °C ~ 50 °C
Total Weight 4.84 kg
Application Paramotor, paraglider



Motor

Model 120-100
KV 50
Max. Thrsut 61 kg
Max. Torque 33 N·m
Max. RPM 3648
Dimension 120 mm * 100 mm
Weight 3.9 kg



ESC

Model 24 S 200 A
Suggested Battery 12 S ~ 24 S (Li-Po)
PMW Signal 3.3 V / 5 V
Pulse Width 900 us ~ 2000 us
Signal Frequency 50 Hz ~ 400 Hz
Max. Input Voltage DC 50 V ~ 100 V
Max. Current 240 A
Weight 595 g
Dimension 140.5 mm * 66.6 mm * 34.4 mm



Propeller

Model 45 inch
Diameter 45 inch
Material Carbon fiber
Weight 0.35 kg





Details





120100 61KG UAV Propulsion System With Motor And 24S 200A ESC 45'' Propeller For Heavy Lift Drone 0120100 61KG UAV Propulsion System With Motor And 24S 200A ESC 45'' Propeller For Heavy Lift Drone 1120100 61KG UAV Propulsion System With Motor And 24S 200A ESC 45'' Propeller For Heavy Lift Drone 2120100 61KG UAV Propulsion System With Motor And 24S 200A ESC 45'' Propeller For Heavy Lift Drone 3120100 61KG UAV Propulsion System With Motor And 24S 200A ESC 45'' Propeller For Heavy Lift Drone 4120100 61KG UAV Propulsion System With Motor And 24S 200A ESC 45'' Propeller For Heavy Lift Drone 5

120100 61KG Thrust Propulsion System With Motor And 24S 200A ESC And 45 Inch Propeller For Heavy Lift Drone
