Drone Propulsion System

56kg Thrust Drone Propulsion With 15060 Brushless DC Motor And 24S 200A ESC 45'' Propeller

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

56kg Thrust Drone Propulsion With 15060 Brushless DC Motor And 24S 200A ESC 45'' Propeller

Brand Name:	Furious Motor
Model Number:	15060
MOQ:	1
Price:	$1722
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

15060

Dimension:

150mm * 60mm

Max. Thrust:

Max. Torque:

31N.m

Max. RPM:

Suggested ESC:

24S 200A

Suggested Prop:

45 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

2.5KG

Application:

Drone, Paramotor

Supply Ability:

3000 pcs per month

Highlight:

56kg drone propulsion

15060 drone propulsion

200A propulsion drone

Product Description

Intoroduction

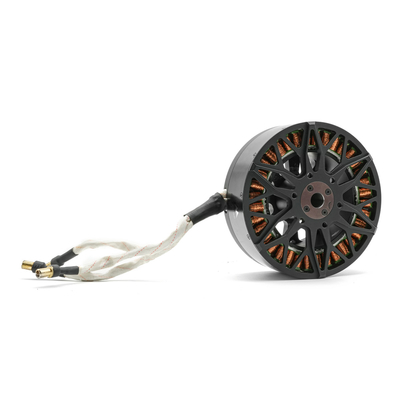

Furious Motor 15060 brushless motor iscrafted for a multitude of aerial applications including multi-rotor drones, delivery drones, camera drones, quadcopters, and heavy-liftdrones. Boasting a remarkable maximum thrustof up to 56kg while maintaining a lightweightdesign of only 2.5kg. Perfectly matched witha 45-inch propeller and a 24S 200A ESC, our15060S motor ensures optimal efficiency andreliability, providing smooth operation in anyscenarios.

Tech Specs

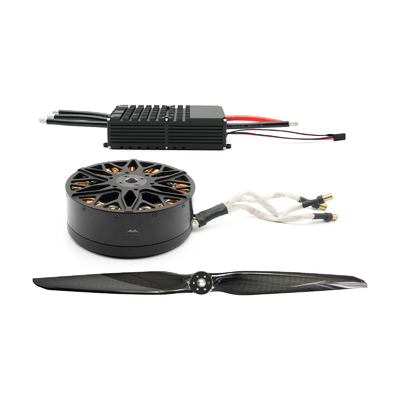

System

Max. Thrsut	58 kg / rotor
Takeoff Weight	20 kg - 29 kg / rotor
Suggested ESC	24 S 200 A
Suggested Propeller	45 inch 2-blade propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	3.44 kg
Application	Multi-rotor drone, paramotor and paraglider

Motor

Model	150-60
KV	72

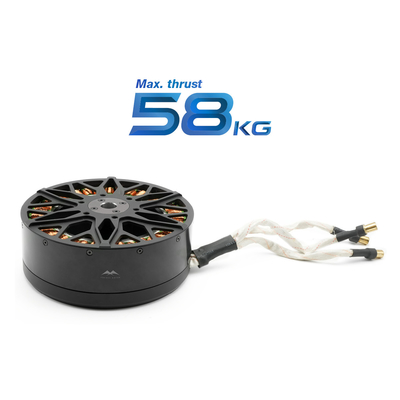

Max. Thrsut	58 kg
Max. Torque	31 N·m
Max. RPM	3588
Dimension	150 mm * 60 mm
Weight	2.5 kg

ESC

Model	24 S 200 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Current	240 A
Weight	595 g
Dimension	140.5 mm * 66.6 mm * 34.4 mm

Propeller

Model	45 inch 2-blade
Diameter	45 inch
Material	Carbon fiber
Weight	350 g

Details

56kg Thrust Drone Propulsion With 15060 Brushless DC Motor And 24S 200A ESC 45'' Propeller 0

56kg Thrust Drone Propulsion With 15060 Brushless DC Motor And 24S 200A ESC 45'' Propeller 1

56kg Thrust Drone Propulsion With 15060 Brushless DC Motor And 24S 200A ESC 45'' Propeller 2

56kg Thrust Drone Propulsion With 15060 Brushless DC Motor And 24S 200A ESC 45'' Propeller 3

56kg Thrust Drone Propulsion With 15060 Brushless DC Motor And 24S 200A ESC 45'' Propeller 4

56kg Thrust Drone Propulsion With 15060 Brushless DC Motor And 24S 200A ESC 45'' Propeller 5

56kg Thrust Drone Propulsion With 15060 Brushless DC Motor And 24S 200A ESC 45'' Propeller 6

56kg Thrust Propulsion System With 15060 Brushless DC Motor And 24S 200A ESC And 45 Inch Propeller
