Drone Propulsion System

26KG Drone Propulsion With 10860 Brushless DC Motor And 36 Inch Propeller And 75V 200A ESC

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

26KG Drone Propulsion With 10860 Brushless DC Motor And 36 Inch Propeller And 75V 200A ESC

Brand Name:	Furious Motor
Model Number:	10860
MOQ:	1
Price:	$ 480
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

10860

Dimension:

108 Mm * 60 Mm

Max. Thrust:

26 Kg

Max. Torque:

16 N.m

Max. RPM:

Suggested ESC:

75 V 200 A

Suggested Prop:

36 Inch Propeller

Max. Current:

150 A

Max. Voltage:

Max. Power:

Li - Po:

10 S - 16 S

Hall Sensor:

Optional

Weight:

1.2 Kg

Application:

Multi Rotor Drone

Supply Ability:

3000 pcs per month

Highlight:

26KG drone propulsion

10860 drone propulsion

200A ESC propulsion drone

Product Description

Introduction

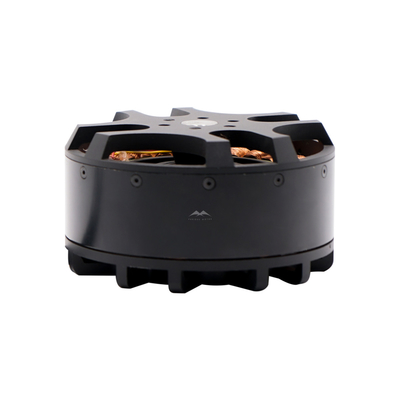

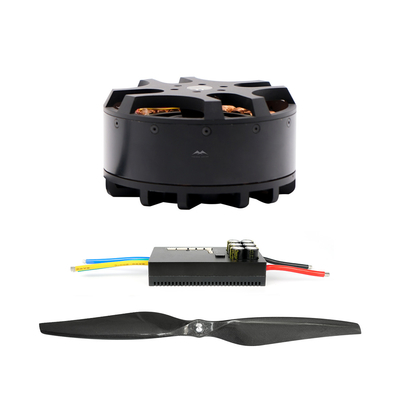

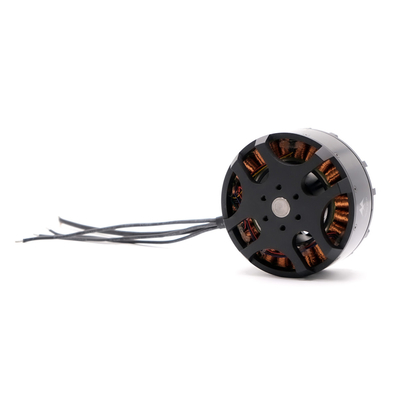

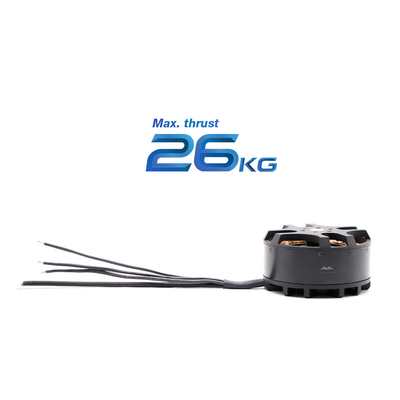

Furious Motor 10860 brushless motor is engineered for precision and power, making it the ideal choice for multi-rotor drones, delivery drones, camera drones, quadcopters, and heavy-lift applications. With an maximum thrust capability of up to 26kg, the 10860 motor seamlessly pairs with a 36-inch propeller and a 75V 200A ESC to deliver optimal efficiency and performance.

Designed for versatility, our motors can be fully customized to meet your specific requirements, ensuring each flight is tailored to your exact needs. With a commitment to quality and reliability, trust in our expertise to elevate your aerial projects with power, precision, and dependability.

Tech Specs

System

Max. Thrsut	26 kg / rotor
Takeoff Weight	8 kg - 13 kg / rotor
Suggested ESC	75 S 200 A
Suggested Propeller	36 inch 2-blade propeller
Suggested Battery	12 S - 16 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	1.85 kg
Application	Multi rotor drone

Motor

Model	108-60
KV	100
Max. Thrsut	26 kg
Max. Torque	16 N·m
Max. RPM	5100
Dimension	108 mm * 60 mm
Weight	1.19 kg

ESC

Model	75 V 200 A
Suggested Battery	12 S ~ 16 S (Li-Po)
BEC	5 V 1 A
Mode	DC, BLDC, FOC
ERPM	150000
Communication Ports	USB, CAN, UART, SPI, IIC
Compatibale Sensors	ABI, HALL, AS5047, AS5048A
Input Source	PPM, ADC, NRF, UART
Weight	450 g
Dimension	130 mm * 68 mm * 40 mm

Propeller

Model	36 inch 2-blade
Diameter	36 inch
Material	Carbon fiber
Weight	0.2 kg

Details

26KG Drone Propulsion With 10860 Brushless DC Motor And 36 Inch Propeller And 75V 200A ESC 0

26KG Drone Propulsion With 10860 Brushless DC Motor And 36 Inch Propeller And 75V 200A ESC 1

26KG Drone Propulsion With 10860 Brushless DC Motor And 36 Inch Propeller And 75V 200A ESC 2

26KG Drone Propulsion With 10860 Brushless DC Motor And 36 Inch Propeller And 75V 200A ESC 4

26KG Drone Propulsion System With 10860 Brushless DC Motor And 36 Inch Propeller And 75V 200A ESC
