51Kg Thrust Drone Propulsion System With Brushless Motor And Motor Controller And Propeller

Brand Name: Furious Motor
Model Number: 15470
MOQ: 1
Price: $1637
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
15470
Dimension:
154 Mm * 70 Mm
KV:
50
Max. Thrust:
51 Kg
Max. Torque:
25 N.m
Max. RPM:
3762
Suggested ESC:
24 S 200 A
Suggested Prop:
42 Inch Propeller
Max. Current:
122 A
Max. Voltage:
94 V
Max. Power:
11.5 KW
Li - Po:
14 S - 24 S
Hall Sensor:
Optional
Weight:
3.4 Kg
Application:
Multi Rotor Drone, Paraglider
Supply Ability:
3000 pcs per month
Highlight:

51Kg Drone Propulsion System

,

Propeller Drone Propulsion System

,

Motor Controller uav electric propulsion

Product Description

Introduction

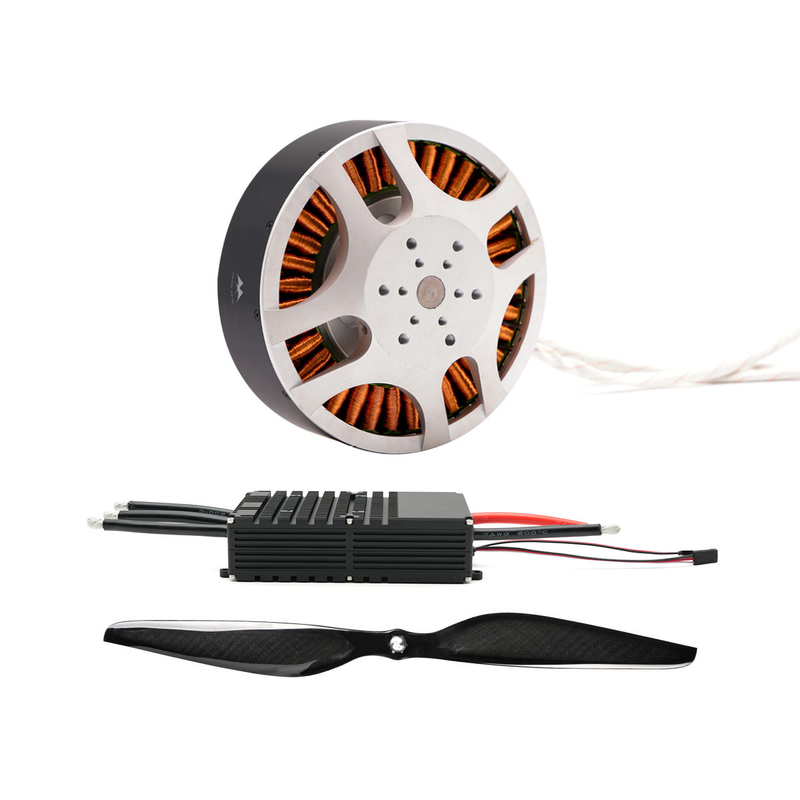

Engineered for large drones, UAVs, paramotors, and multirotor platforms, the 15470 propulsion system is built for outstanding performance. It features a 15470 motor paired with a 42-inch propeller and a 24S 200A motor controller, ensuring efficient power delivery and precise control.


Capable of producing up to 51kg of thrust, this system is ideal for heavy-duty aerial applications. With powerful thrust and enhanced stability, the 15470 offers a reliable and efficient solution for demanding flight missions.



Tech Specs


System

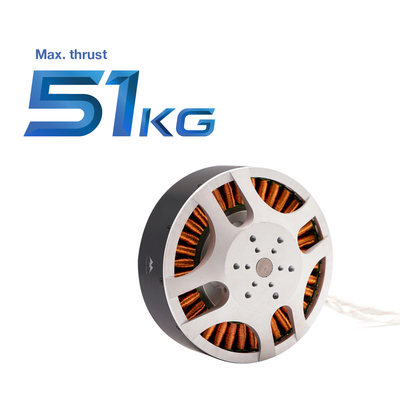

Max. Thrsut 51 kg / rotor
Takeoff Weight 20 kg - 25 kg / rotor
Suggested ESC 24 S 200 A
Suggested Propeller 42 inch 2-blade propeller
Suggested Battery 12 S - 24 S
Working Temperature -20 °C ~ 50 °C
Total Weight 4.3 kg
Application Multi rotor drone, heavy lift drone, paramotor

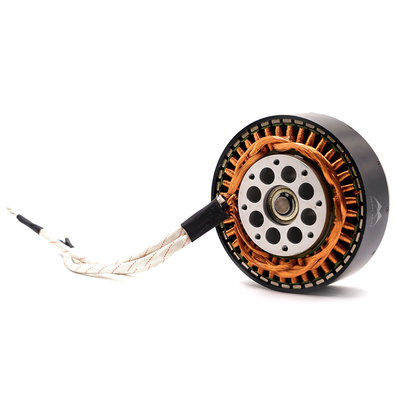

Motor

Model 154-70
KV 50
Max. Thrsut 51 kg
Max. Torque 25 N·m
Max. RPM 3762
Dimension 154 mm * 70 mm
Weight 3.4 kg


ESC

Model 24 S 200 A
Suggested Battery 12 S ~ 24 S (Li-Po)
PMW Signal 3.3 V / 5 V
Pulse Width 900 us ~ 2000 us
Signal Frequency 50 Hz ~ 400 Hz
Max. Input Voltage DC 50 V ~ 100 V
Max. Input Current 240 A
Weight 595 g
Dimension 140mm * 66mm * 34mm


Propeller

Model 42 inch 2-blade
Diameter 42 inch
Material Carbon fiber
Weight 300 g




Details


51Kg Thrust Drone Propulsion System With Brushless Motor And Motor Controller And Propeller 0

51Kg Thrust Drone Propulsion System With Brushless Motor And Motor Controller And Propeller 1

51Kg Thrust Drone Propulsion System With Brushless Motor And Motor Controller And Propeller 2

51Kg Thrust Drone Propulsion System With Brushless Motor And Motor Controller And Propeller 3

51Kg Thrust Drone Propulsion System With Brushless Motor And Motor Controller And Propeller 4

51Kg Thrust Drone Propulsion System With Brushless Motor And Motor Controller And Propeller 5

51Kg Thrust Drone Propulsion System With Brushless Motor And Motor Controller And Propeller
