10860 Heavy Lift Brushless Drone Motor For High Payload In Industrial Applications

Brand Name:	Furious Motor
Model Number:	10860
MOQ:	1
Price:	$190
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

10860

Dimension:

108 Mm * 60 Mm

Max. Thrust:

26 Kg

Max. Torque:

16 N.m

Max. RPM:

Suggested ESC:

75 V 200 A

Suggested Prop:

36 Inch Propeller

Max. Current:

150 A

Max. Voltage:

Max. Power:

Li - Po:

10 S - 16 S

Hall Sensor:

Optional

Weight:

1.2 Kg

Application:

Multi Rotor Drone

Supply Ability:

3000 pcs per month

Highlight:

10860 brushless drone motor

Heavy Lift brushless drone motor

Industrial heavy lift motor

Product Description

Intoroduction

Unveiling the Furious Motor 10860 brushless DC motor, a powerhouse engineered for a variety of advanced aerial platforms, including multirotor drones, delivery drones, camera-equipped drones, quadcopters, and heavy-lift systems. Boasting an exceptional thrust capacity of up to 26kg, this motor is seamlessly compatible with a 36-inch propeller and a 24S 150A ESC, delivering outstanding efficiency and performance.

Fully customizable to align with your unique requirements, the 10860 ensures precision-tuned operation, backed by our commitment to superior power and unwavering reliability for your aerial endeavors.

Tech Specs

Model	10860
Type	Brushless DC motor
KV	100
Suggested ESC	75 V 200 A
Suggested Propeller	36 inch 2-blade
Max. Thrust	26 kg
Max. Torque	16 N·m
Max. RPM	5100
Li-Po	10 S ~ 16 S
Max. Voltage	53 V
Max. Current	150 A
Max. Power	8 kW
Motor Dimension	108 mm * 60mm
Weight	1.2 kg
Application	Multi rotor drone, camera drone

Details

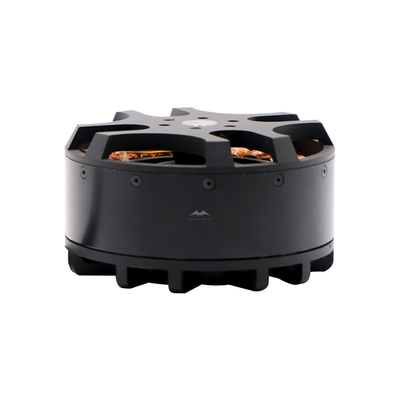

10860 Heavy Lift Brushless Drone Motor For High Payload In Industrial Applications 0

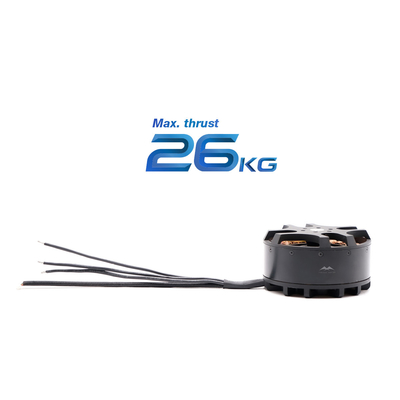

10860 Heavy Lift Brushless Drone Motor For High Payload In Industrial Applications 1

10860 Heavy Lift Brushless Drone Motor For High Payload In Industrial Applications 2

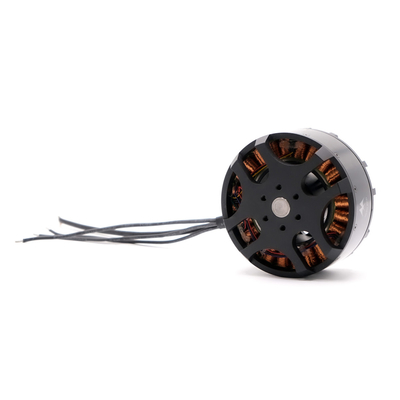

10860 Heavy Lift Brushless Drone Motor For High Payload In Industrial Applications 3

10860 Heavy Lift Brushless Drone Motor For High Payload In Industrial Applications 4

10860 Durable Heavy Lift Brushless Drone Motor For High-Payload Capacity In Industrial Applications
